Event Specification
Magnitude |
2.4 |
| Date & Time (UTC) | 2018-09-10 15:44:38.3 |
| Date & Time (Local) | 1397/6/19 20:14:38.3 |
| Location | Lat:33.867 Lon: 48.815 |
| Region | Lorestan Province, 6 km of Borujerd |
Nearest Cities |
|
| 2 km North of Valanjerd, Lorestan Province | |
| 4 km North of Hemmatabad, Lorestan Province | |
| 6 km of Borujerd, Lorestan Province | |
| 18 km East of Bon dizeh, Lorestan Province | |
| 20 km North East of Pellekan-e sofla, Lorestan Province | |
| Depth | 14 km |
| Agency | |

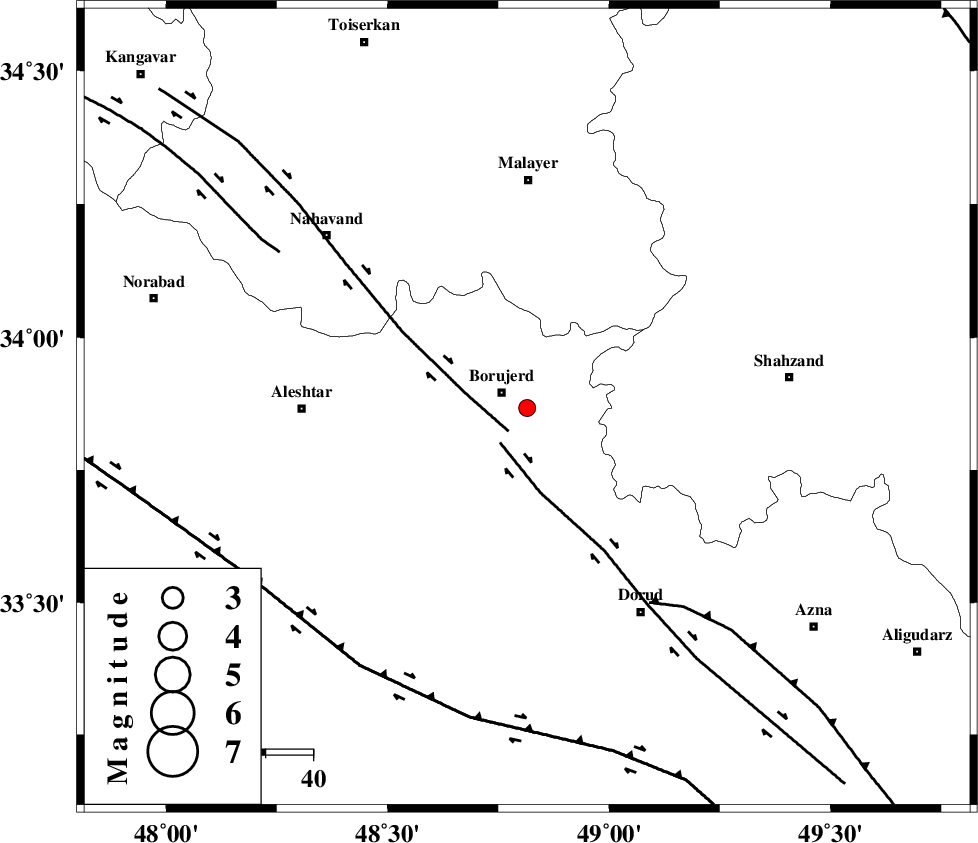

Faults within 150 km: |
|
| NAHAVAND_F (Length: 102 km) , Distance to epicenter: 6 km | |
| DORUD (Length: 100 km) , Distance to epicenter: 9 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 48 km | |
| Number of Phases | 7 |
| RMS | 0.4 |
| Number of Stations | 5 |
| Error in Latitude | >5.9 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 136654 | IIEES | KHMZ | E | 68.6 | 0.34 | 2018-09-10 15:45:12 | 2018-09-11 10:31:00 | n |
| 136655 | IIEES | ASAO | N | 85.7 | 0.67 | 2018-09-10 15:45:21 | 2018-09-11 10:31:00 | n |
| 136656 | IIEES | ASAO | E | 74.6 | 0.39 | 2018-09-10 15:45:23 | 2018-09-11 10:31:00 | n |
| 136657 | IIEES | SNGE | E | 28.6 | 0.41 | 2018-09-10 15:45:41 | 2018-09-11 10:31:00 | n |
| 136658 | IIEES | GHVR | N | 25.1 | 0.4 | 2018-09-10 15:45:52 | 2018-09-11 10:31:00 | n |
| 136659 | IIEES | GHVR | E | 27 | 0.5 | 2018-09-10 15:45:58 | 2018-09-11 10:31:00 | n |
| 136660 | IIEES | ILBA | E | 20.5 | 0.48 | 2018-09-10 15:45:52 | 2018-09-11 10:31:00 | n |
| 136661 | IIEES | ILBA | N | 14.4 | 0.36 | 2018-09-10 15:45:56 | 2018-09-11 10:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2018-09-10 15:44:56 | -0.36 | y | 107 | 97 | |||
| IIEES | KHMZ | N | Sg | E | 2018-09-10 15:45:09 | -0.3 | y | 107 | 97 | |||
| IIEES | ASAO | Z | Pg | E | 2018-09-10 15:45:01 | 0.18 | y | 135 | 56 | |||
| IIEES | ASAO | N | Sg | E | 2018-09-10 15:45:17 | 0.05 | y | 135 | 56 | |||
| IIEES | SNGE | Z | Pg | E | 2018-09-10 15:45:09 | -0.54 | y | 191 | 316 | |||
| IIEES | GHVR | Z | Pn | E | 2018-09-10 15:45:15 | 0.74 | y | 234 | 72 | |||
| IIEES | ILBA | Z | Pn | E | 2018-09-10 15:45:16 | 0.23 | y | 243 | 264 | |||
