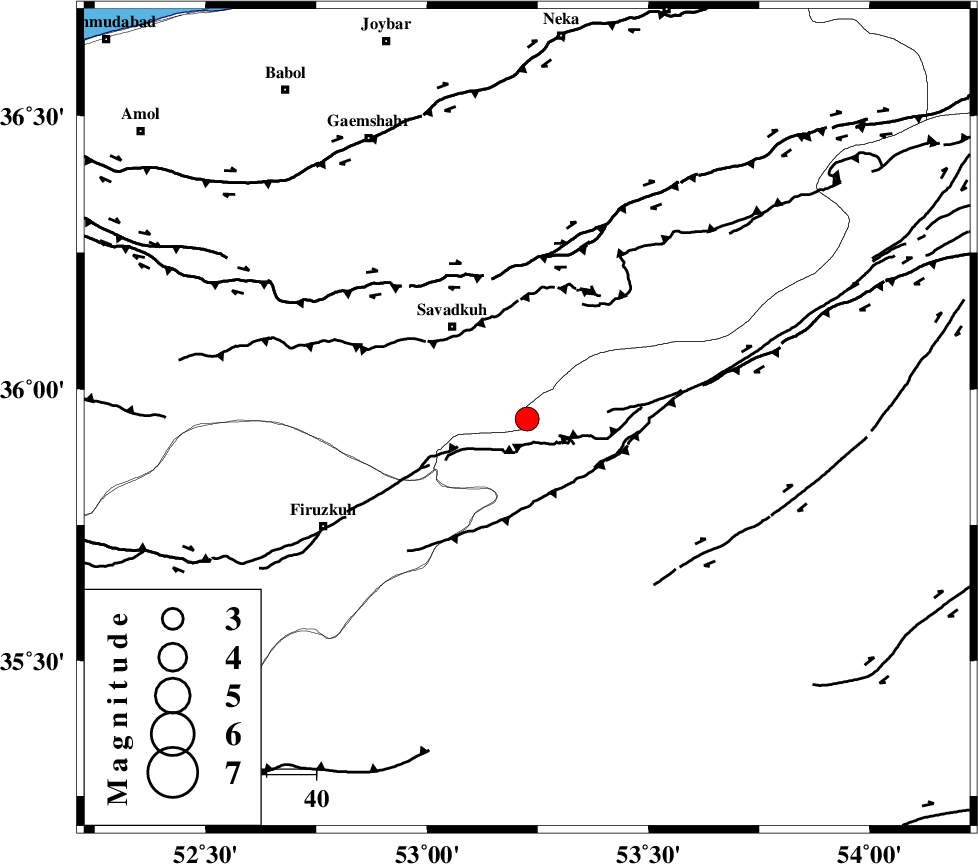

 Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
 3.4
Date & Time (UTC) 2018-09-12 05:02:28.5
Date & Time (Local) 1397/6/21  09:32:28.5
Location Lat:35.945 Lon: 53.226
Region Mazandaran Province, 24 km South-East of Pol-E-Sefid
Nearest Cities
7 km North of Chashem, Semnan Province
14 km South of Sangdeh, Mazandaran Province
22 km North West of Shahmirzad, Semnan Province
23 km South East of Shurmast-e peyrudbar, Mazandaran Province
24 km South East of Pol-E-Sefid, Mazandaran Province
Depth 15 km
Agency
Faults within 150 km:
N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 29 km
ATARI_F (Length: 185 km) , Distance to epicenter: 30 km
DAMGHAN_F (Length: 95 km) , Distance to epicenter: 59 km
Number of Phases 16
RMS 0.4
Number of Stations 15
Error in Latitude >4.2 km
Error in Longitude 3.5 km
Error in Depth 6.6 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
136700IIEESDAMVE 572.40.422018-09-12 05:03:062018-09-12 08:34:00n
136701IIEESDAMVN 441.60.192018-09-12 05:03:082018-09-12 08:34:00n
136702IIEESTHKVE 226.30.582018-09-12 05:03:352018-09-12 08:34:00n
136703IIEESGHVRN 327.50.472018-09-12 05:03:432018-09-12 08:34:00n
136704IIEESGHVRE 477.50.312018-09-12 05:03:432018-09-12 08:34:00n
136705IIEESGIDEN 217.80.312018-09-12 05:04:002018-09-12 08:34:00n
136706IIEESGIDEE 203.20.472018-09-12 05:04:052018-09-12 08:34:00n
136707IIEESNASNE 65.90.422018-09-12 05:04:182018-09-12 08:34:00n
136708IIEESYZKHN 38.80.522018-09-12 05:04:342018-09-12 08:34:00n
136709IIEESYZKHE 23.20.442018-09-12 05:04:372018-09-12 08:34:00n
136710IIEESTABSN 24.50.732018-09-12 05:04:572018-09-12 08:34:00n
136711IIEESGRMIN 10.40.32018-09-12 05:04:482018-09-12 08:34:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEESDAMVZ Pg E2018-09-12 05:02:47-1.04n4119253
IIEESDAMVN Sg E2018-09-12 05:03:03-0.17y119253
IIEESCHTHZ Pg E2018-09-12 05:02:59-0.41y190269
IIEESTHKVZ Pn E2018-09-12 05:03:020.31y212270
IIEESGHVRZ Pn E2018-09-12 05:03:060.31y243229
IIEESSHROZ Pn E2018-09-12 05:03:070.26y25188
IIEESGIDEZ Pn E2018-09-12 05:03:160.61y316291
IIEESMRVTZ Pn E2018-09-12 05:03:15-0.43y31952
IIEESASAOZ Pn E2018-09-12 05:03:170y330243
IIEESNASNZ Pn E2018-09-12 05:03:200.08y351186
IIEESKHMZZ Pn E2018-09-12 05:03:24-0.04y386232
IIEESYZKHZ Pn E2018-09-12 05:03:27-0.13y414162
IIEESZNJKZ Pn E2018-09-12 05:03:280.46y416283
IIEESTABSZ Pn E2018-09-12 05:03:30-0.07y438124
IIEESGRMIZ Pn E2018-09-12 05:03:46-0.49y569306
IIEESILBAZ Pn E2018-09-12 05:04:01-0.94y692250
