Systems
Event Specification

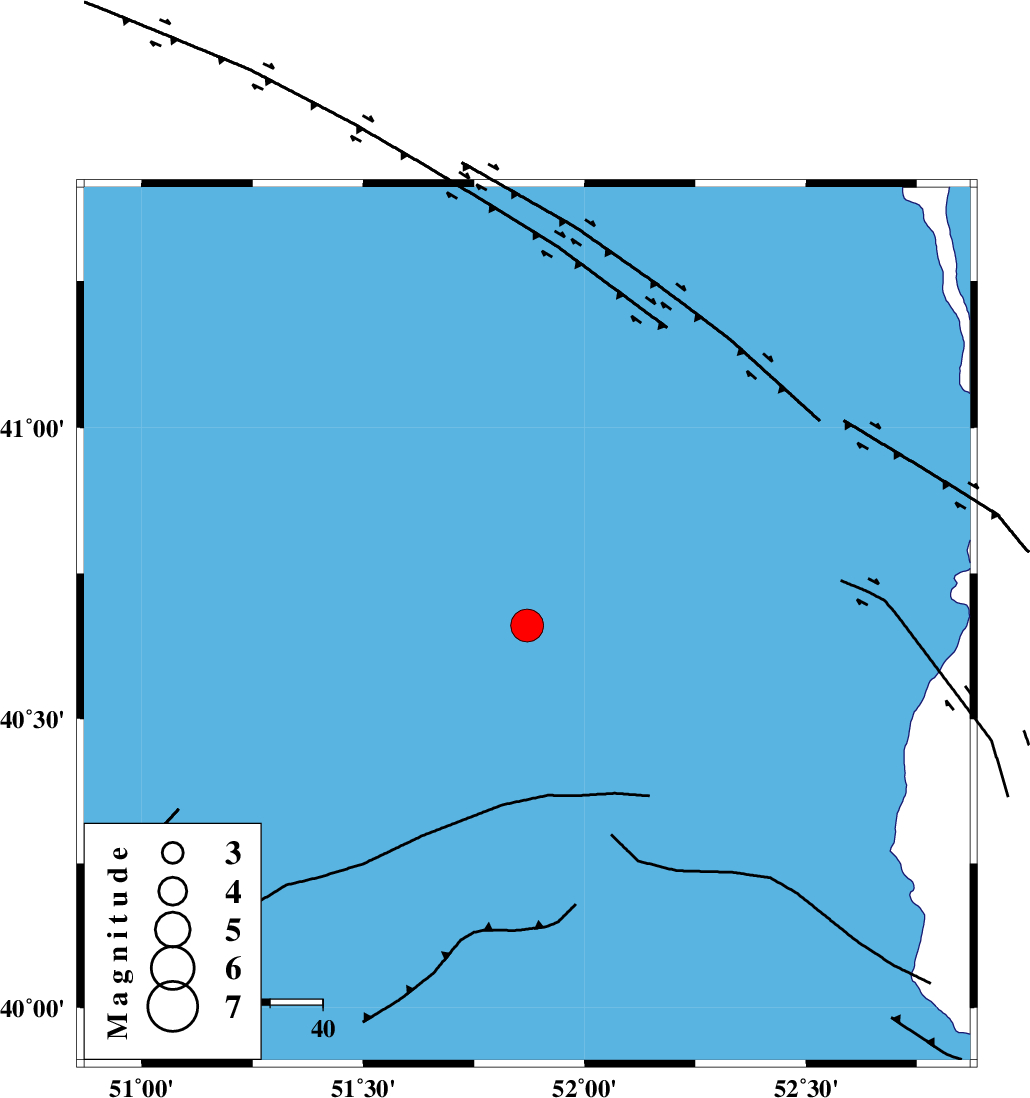

 Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
 4.6
Date & Time (UTC) 2019-10-09 03:06:30.8
Date & Time (Local) 1398/7/17  06:36:30.8
Location Lat:40.66 Lon: 51.87
Region Caspian Sea
Nearest Cities
117 km North West of Turkmenbasi, Turkmenistan Province
171 km North East of Baku, Azerbaijan Province
334 km North East of Bileh Savar, Ardebil Province
346 km North East of Kushlu, Ardebil Province
348 km North East of Tazeh kand-e gadim, Ardebil Province
Depth 20 km
Agency
Faults within 150 km:
Number of Phases 21
RMS 0.8
Number of Stations 15
Error in Latitude >3 km
Error in Longitude 0 km
Error in Depth 992 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
146390IIEES SCGRMIZ 75012019-10-09 03:08:102019-10-09 08:04:00n
146391IIEES SCZNJKZ 140012019-10-09 03:08:352019-10-09 08:04:00n
146392IIEES SCCHTHZ 83012019-10-09 03:08:372019-10-09 08:04:00n
146393IIEES SCDAMVZ 83012019-10-09 03:08:462019-10-09 08:04:00n
146394IIEES SCDAMVZ 3200.572019-10-09 03:07:492019-10-09 08:04:00n
146395IIEES SCSHROZ 20012019-10-09 03:08:592019-10-09 08:04:00n
146396IIEES SCSHROZ 490.872019-10-09 03:08:112019-10-09 08:04:00n
146397IIEES SCGHVRZ 18012019-10-09 03:09:302019-10-09 08:04:00n
146398IIEES SCGHVRZ 1000.852019-10-09 03:08:142019-10-09 08:04:00n
146399IIEES SCASAOZ 14012019-10-09 03:09:322019-10-09 08:04:00n
146400IIEES SCASAOZ 4512019-10-09 03:08:162019-10-09 08:04:00n
146401IIEES SCSNGEZ 3412019-10-09 03:09:482019-10-09 08:04:00n
146402IIEES SCSNGEZ 140.862019-10-09 03:08:122019-10-09 08:04:00n
146403IIEES SCSRSLZ 3712019-10-09 03:08:142019-10-09 08:04:00n
146404IIEES SCSRSLZ 260.622019-10-09 03:08:142019-10-09 08:04:00n
146405IIEES SCKHMZZ 6912019-10-09 03:10:002019-10-09 08:04:00n
146406IIEES SCKHMZZ 580.722019-10-09 03:08:222019-10-09 08:04:00n
146407IIEES SCTABSZ 310.822019-10-09 03:08:322019-10-09 08:04:00n
146408IIEES SCYZKHZ 9.10.692019-10-09 03:08:352019-10-09 08:04:00n
146409IIEES SCKLNJZ 100.692019-10-09 03:09:102019-10-09 08:04:00n
146410IIEES SCSHRTZ 5.30.842019-10-09 03:09:052019-10-09 08:04:00n
146411IIEES SCBSRNZ 5.90.862019-10-09 03:09:162019-10-09 08:04:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCGRMIZ IP I2019-10-09 03:07:27-0.1y400239
IIEES SCZNJKZ IP I2019-10-09 03:07:41-1.6y522212
IIEES SCCHTHZ IP I2019-10-09 03:07:43-0.6y533187
IIEES SCDAMVZ IP I2019-10-09 03:07:480.5y556179
IIEES SCSHROZ IP I2019-10-09 03:07:56-0.4y633145
IIEES SCGHVRZ IP I2019-10-09 03:08:040.5y689185
IIEES SCASAON IP I2019-10-09 03:08:050.2y700193
IIEES SCSNGEN IP I2019-10-09 03:08:090.5y733213
IIEES SCSRSLZ IP I2019-10-09 03:08:121.9y745229
IIEES SCKHMZZ IP I2019-10-09 03:08:171.1y789192
IIEES SCTABSZ IP I2019-10-09 03:08:300.2y911149
IIEES SCYZKHZ IP I2019-10-09 03:08:35-0.5y945165
IIEES SCKLNJZ IP I2019-10-09 03:08:521.1y1067181
IIEES SCSHRTZ IP I2019-10-09 03:08:50-1.8y1078136
IIEES SCBSRNZ IP I2019-10-09 03:09:02-0.7y1167146
IIEES SCDAMVZ IVmB_BB 2019-10-09 03:07:49y1556179
IIEES SCSHROZ IVmB_BB 2019-10-09 03:08:00y1633145
IIEES SCGHVRZ IVmB_BB 2019-10-09 03:08:25y1689185
IIEES SCASAOZ IVmB_BB 2019-10-09 03:08:15y1700193
IIEES SCKHMZZ IVmB_BB 2019-10-09 03:08:21y1789192
IIEES SCTABSZ IVmB_BB 2019-10-09 03:08:31y1911149
