Magnitude
 :3.2
Date & Time (UTC) 2019-11-09 07:55:11.1
Date & Time (Local) 98/8/18  11:25:11.1

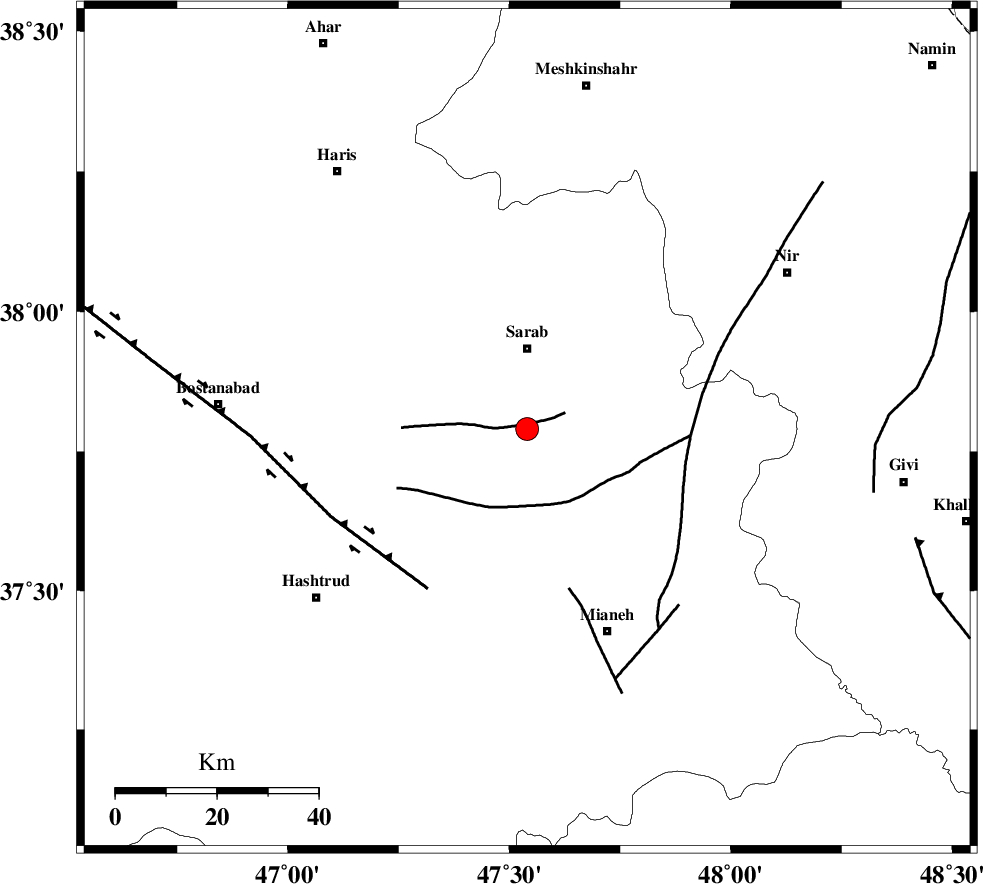

Location Lat:37.79 Lon: 47.54
Region Azarbaijan Sharghi Province, 16 km South of Sarab
Nearest Cities
5 km of Asbforushan, Azarbaijan Sharghi Province
15 km West of Pataveh, Azarbaijan Sharghi Province
16 km South of Sarab, Azarbaijan Sharghi Province
17 km East of Abarghan, Azarbaijan Sharghi Province
21 km North of Eshlaq, Azarbaijan Sharghi Province
Depth 14 km
Agency
Faults within 150 km:
BOZQUSH (Length: 70 km) , Distance to epicenter: 8 km
N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 37 km
SANGAVAR_F (Length: 61 km) , Distance to epicenter: 69 km
Number of Phases 8
RMS 0.8
Number of Stations 8
Error in Latitude >7 km
Error in Longitude 0 km
Error in Depth 11 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
147836IIEES SCAZRZ 78012019-11-09 07:56:012019-11-09 12:05:00n
147837IIEES SCZNJKZ 4.212019-11-09 07:56:132019-11-09 12:05:00n
147838IIEES SCMAHBZ 12012019-11-09 07:56:092019-11-09 12:05:00n
147839IIEES SCSRSLZ 5412019-11-09 07:56:282019-11-09 12:05:00n
147840IIEES SCQABGZ 1512019-11-09 07:56:382019-11-09 12:05:00n
147841IIEES SCSNGEZ 3512019-11-09 07:56:392019-11-09 12:05:00n
147842IIEES SCTHKVZ 4612019-11-09 07:56:552019-11-09 12:05:00n
147843IIEES SCCHTHZ 1312019-11-09 07:57:052019-11-09 12:05:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCAZRZ IP I2019-11-09 07:55:33-0.4y133265
IIEES SCZNJKZ IP I2019-11-09 07:55:36-1.5y155141
IIEES SCMAHBZ IP I2019-11-09 07:55:430y200235
IIEES SCSRSLZ IP I2019-11-09 07:55:510.7y255227
IIEES SCQABGZ IP I2019-11-09 07:55:54-0.7y289142
IIEES SCSNGEZ IP I2019-11-09 07:55:560.1y300183
IIEES SCTHKVZ IP I2019-11-09 07:56:051.6y366125
IIEES SCCHTHN IP I2019-11-09 07:56:060.4y378123
