Magnitude
:3.8
Date & Time (UTC) 2020-08-01 08:37:59.9
Date & Time (Local) 99/5/11  13:07:59.9

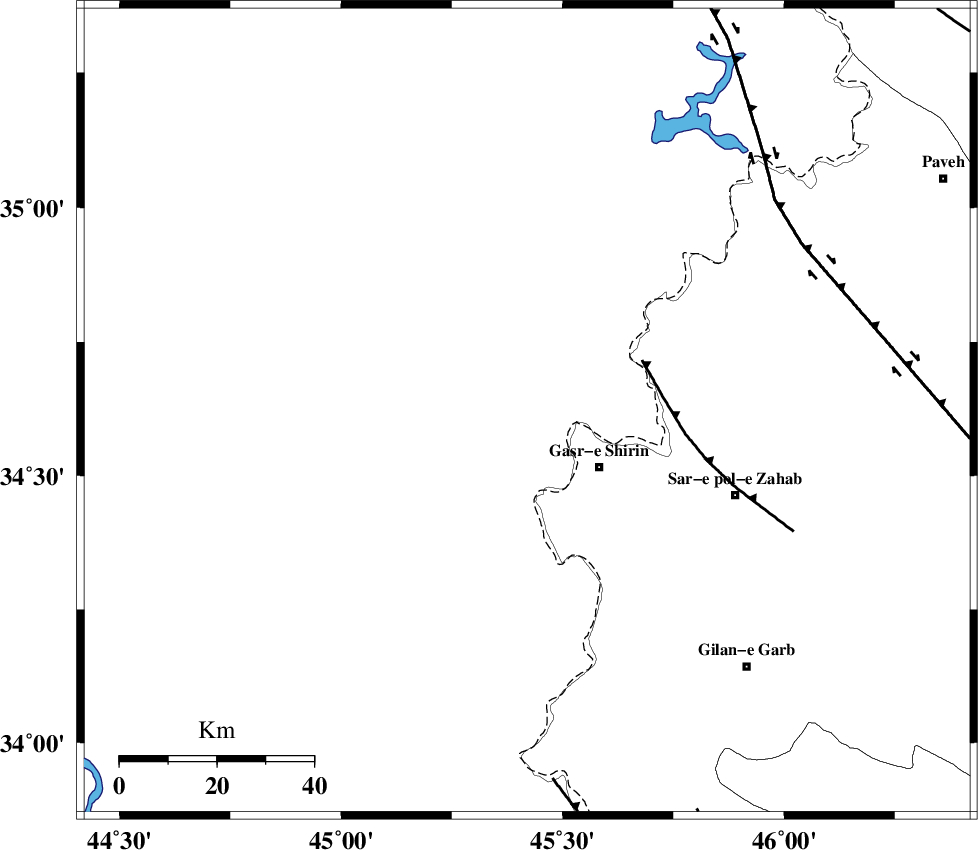

Location Lat:34.62 Lon: 45.42
Region Iraq, 19 km North-West of Qasr-E-Shirin
Nearest Cities
19 km North West of Qasr-E-Shirin, Kermanshah Province
24 km North West of Aqabarar, Kermanshah Province
25 km North of Khosravi, Kermanshah Province
25 km North West of Seyyed sohrab, Kermanshah Province
31 km South West of Tappeh rash, Kermanshah Province
Depth 16 km
Agency
Faults within 150 km:
MFF8 (Length: 48 km) , Distance to epicenter: 26 km
HZF4 (Length: 492 km) , Distance to epicenter: 66 km
ZFF4 (Length: 128 km) , Distance to epicenter: 77 km
Number of Phases 14
RMS 0.6
Number of Stations 13
Error in Latitude >4 km
Error in Longitude 0 km
Error in Depth 7 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
156002IIEES SCILBAZ 30012020-08-01 08:38:422020-08-01 01:29:00n
156003IIEES SCSRSLZ 350012020-08-01 08:38:532020-08-01 01:29:00n
156004IIEES SCSNGEZ 52012020-08-01 08:39:002020-08-01 01:29:00n
156005IIEES SCMAHBZ 160012020-08-01 08:39:112020-08-01 01:29:00n
156006IIEES SCAZRZ 230012020-08-01 08:39:482020-08-01 01:29:00n
156007IIEES SCZNJKZ 4812020-08-01 08:40:042020-08-01 01:29:00n
156008IIEES SCGTMRZ 4712020-08-01 08:40:052020-08-01 01:29:00n
156009IIEES SCASAOZ 7612020-08-01 08:40:062020-08-01 01:29:00n
156010IIEES SCKHMZZ 6012020-08-01 08:39:522020-08-01 01:29:00n
156011IIEES SCGIDEZ 18012020-08-01 08:40:262020-08-01 01:29:00n
156012IIEES SCGRMIZ 2612020-08-01 08:40:382020-08-01 01:29:00n
156013IIEES SCTHKVZ 4712020-08-01 08:40:502020-08-01 01:29:00n
156014IIEES SCGHVRZ 45012020-08-01 08:40:592020-08-01 01:29:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCILBAZ IP I2020-08-01 08:38:21-0.1y133147
IIEES SCSRSLZ IP I2020-08-01 08:38:280y1770
IIEES SCSNGEZ IP I2020-08-01 08:38:290y18974
IIEES SCMAHBZ IP I2020-08-01 08:38:36-0.5y2446
IIEES SCAZRZ IP I2020-08-01 08:38:511.3y3449
IIEES SCZNJKZ IP I2020-08-01 08:38:53-0.4y37852
IIEES SCGTMRZ IP I2020-08-01 08:38:58-0.5y422125
IIEES SCASAOZ IP I2020-08-01 08:39:000.3y42291
IIEES SCKHMZZ IP I2020-08-01 08:39:010.1y433103
IIEES SCGIDEZ IP I2020-08-01 08:39:070.6y47858
IIEES SCAMISZ IP I2020-08-01 08:39:04-3.5n4489132
IIEES SCGRMIZ IP I2020-08-01 08:39:10-0.5y51125
IIEES SCTHKVZ IP I2020-08-01 08:39:10-0.9y52274
IIEES SCGHVRZ IP I2020-08-01 08:39:151.4y53392
