Date & Time (UTC) 2021-01-12 23:36:00.4
Date & Time (Local) 99/10/24  03:06:00.4

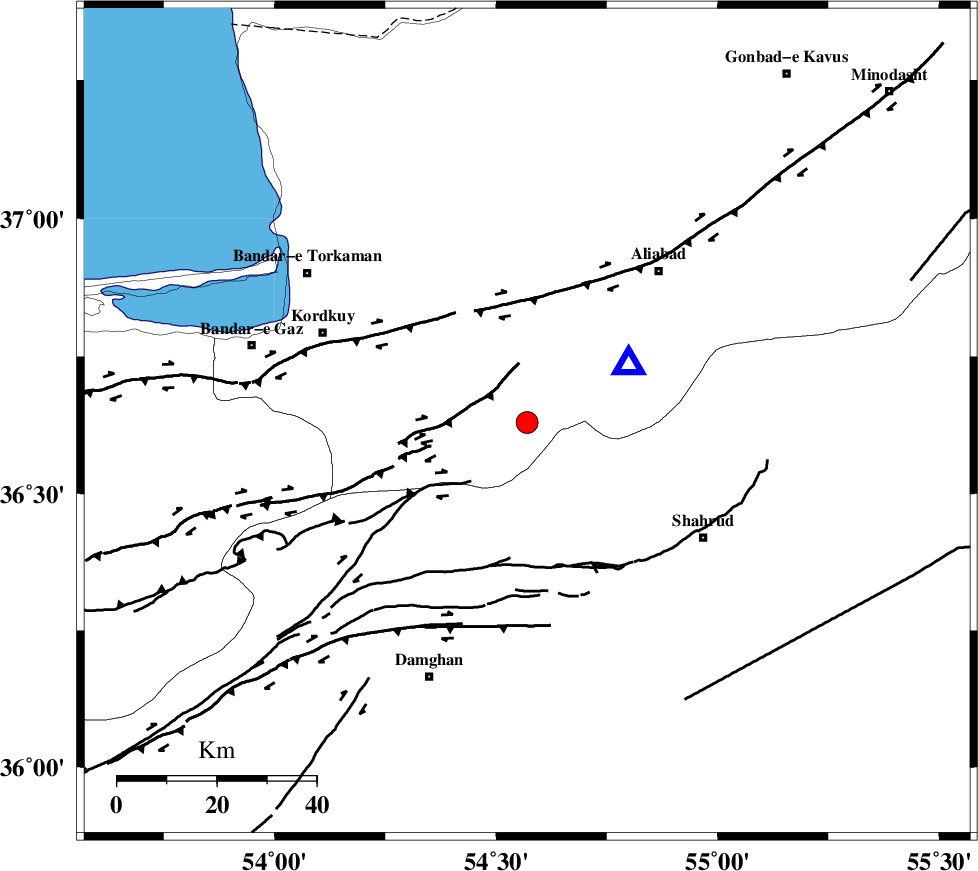

Location Lat:36.63 Lon: 54.57
Region Golestan Province, 26 km South-East of Gorgan
Nearest Cities
12 km East of Naharkhoran, Golestan Province
14 km North East of Cheharbagh, Golestan Province
18 km North of Majen, Semnan Province
24 km South of Jalin olia, Golestan Province
26 km South East of Gorgan, Golestan Province
Depth 16 km
Faults within 150 km:
ASTANEH_F (Length: 72 km) , Distance to epicenter: 15 km
N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 16 km
SHAVAR_F (Length: 87 km) , Distance to epicenter: 16 km
Number of Phases 16
RMS 0.2
Number of Stations 16
Error in Latitude >1 km
Error in Longitude 0 km
Error in Depth 1 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
160744IIEES SCABGHZ 4.412021-01-12 23:36:132021-01-13 11:55:00n
160745IIEES SCGLOZ 150012021-01-12 23:36:312021-01-13 11:55:00n
160746IIEES SCSHROZ 3.712021-01-12 23:37:022021-01-13 11:55:00n
160747IIEES SCMRVTZ 16012021-01-12 23:36:542021-01-13 11:55:00n
160748IIEES SCDAMVZ 2812021-01-12 23:37:232021-01-13 11:55:00n
160749IIEES SCSBZVZ 2712021-01-12 23:37:092021-01-13 11:55:00n
160750IIEES SCBJRDZ 2112021-01-12 23:37:262021-01-13 11:55:00n
160751IIEES SCCHTHZ 2012021-01-12 23:37:422021-01-13 11:55:00n
160752IIEES SCGHVRZ 20012021-01-12 23:38:422021-01-13 11:55:00n
160753IIEES SCTABSZ 2212021-01-12 23:38:102021-01-13 11:55:00n
160754IIEES SCGIDEZ 3212021-01-12 23:38:082021-01-13 11:55:00n
160755IIEES SCYZKHZ 7.612021-01-12 23:38:332021-01-13 11:55:00n
160756IIEES SCASAOZ 8.712021-01-12 23:38:312021-01-13 11:55:00n
160757IIEES SCKAGHZ 2.812021-01-12 23:38:312021-01-13 11:55:00n
160758IIEES SCZNJKZ 5.212021-01-12 23:37:252021-01-13 11:55:00n
160759IIEES SCTBJMZ 712021-01-12 23:39:022021-01-13 11:55:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCABGHZ IP I2021-01-12 23:36:05-0.1y2261
IIEES SCGLOZ IP I2021-01-12 23:36:120.4y66258
IIEES SCSHROZ IP I2021-01-12 23:36:240.1y144118
IIEES SCMRVTZ IP I2021-01-12 23:36:28-0.2y17750
IIEES SCDAMVZ IP I2021-01-12 23:36:400.3y255245
IIEES SCSBZVZ IP I2021-01-12 23:36:420.3y27896
IIEES SCBJRDZ IP I2021-01-12 23:36:420.2y27865
IIEES SCCHTHZ IP I2021-01-12 23:36:47-0.2y322255
IIEES SCGHVRZ IP I2021-01-12 23:36:55-0.1y389232
IIEES SCTABSZ IP I2021-01-12 23:36:57-0.3y400145
IIEES SCGIDEZ IP I2021-01-12 23:36:59-0.1y422274
IIEES SCYZKHZ IP I2021-01-12 23:37:06-0.4y467180
IIEES SCASAOZ IP I2021-01-12 23:37:06-0.2y478241
IIEES SCKAGHZ IP I2021-01-12 23:37:080.2y47886
IIEES SCZNJKZ IP I2021-01-12 23:37:12-0.8y522270
IIEES SCTBJMZ IP I2021-01-12 23:37:150.2y544106
