Magnitude
:3.5
Date & Time (UTC) 2022-09-22 09:36:05.3
Date & Time (Local) 1401/6/31  13:06:05.3

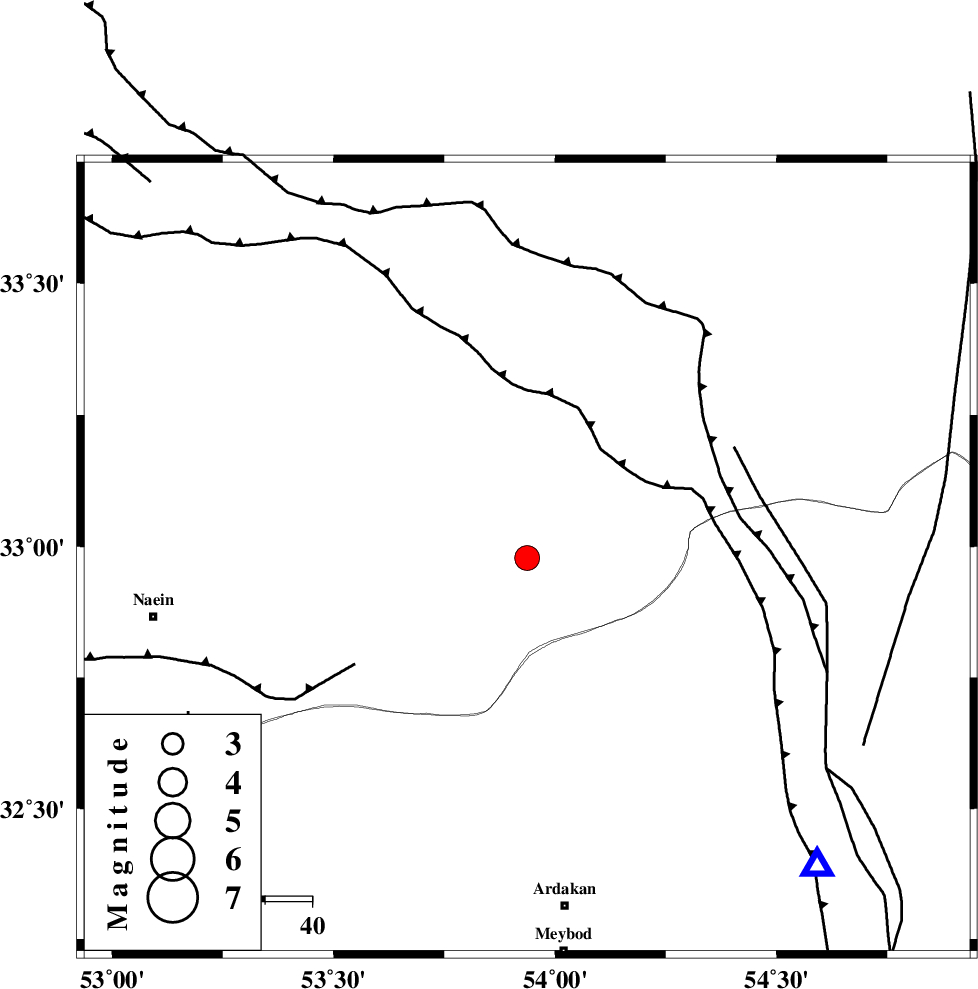

Location Lat:32.978 Lon: 53.937
Region Esfahan Province, 74 km North of Ardakan
Nearest Cities
43 km South East of Anarak, Esfahan Province
66 km North West of Tut, Yazd Province
66 km North East of Eqda, Yazd Province
72 km North West of Zarrin, Yazd Province
74 km North of Ardakan, Yazd Province
Depth 12 km
Agency
Faults within 150 km:
BIABANAK_F (Length: 162 km) , Distance to epicenter: 26 km
CHAH_ZANGUL_F (Length: 123 km) , Distance to epicenter: 73 km
SHAHR_E_BABAK_F1 (Length: 392 km) , Distance to epicenter: 79 km
Number of Phases 19
RMS 0.5
Number of Stations 19
Error in Latitude >1.4 km
Error in Longitude 1.4 km
Error in Depth 7.8 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
173665IIEES SCYZKHZ 212022-09-22 09:36:212022-09-24 05:32:00n
173666IIEES SCYZKHZ 212022-09-22 09:36:322022-09-24 05:32:00n
173667IIEES SCTAFTZ 212022-09-22 09:36:282022-09-24 05:32:00n
173668IIEES SCTAFTZ 212022-09-22 09:36:452022-09-24 05:32:00n
173669IIEES SCGHVRZ 0.312022-09-22 09:36:502022-09-24 05:32:00n
173670IIEES SCTABSZ 0.212022-09-22 09:36:512022-09-24 05:32:00n
173671IIEES SCDAMVZ 0.112022-09-22 09:36:562022-09-24 05:32:00n
173672IIEES SCKHMZZ 0.0712022-09-22 09:37:012022-09-24 05:32:00n
173673IIEES SCGLOZ 0.412022-09-22 09:37:022022-09-24 05:32:00n
173674IIEES SCASAOZ 0.0512022-09-22 09:37:032022-09-24 05:32:00n
173675IIEES SCCHTHZ 0.0412022-09-22 09:37:052022-09-24 05:32:00n
173676IIEES SCABGHZ 0.112022-09-22 09:37:052022-09-24 05:32:00n
173677IIEES SCKKHKZ 0.212022-09-22 09:37:092022-09-24 05:32:00n
173678IIEES SCGTMRZ 0.0712022-09-22 09:37:102022-09-24 05:32:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCYZKHZ EPg E2022-09-22 09:36:210.2y090137
IIEES SCYZKHZ ESg E2022-09-22 09:36:320y090137
IIEES SCNASNZ EPg E2022-09-22 09:36:22-1y0108259
IIEES SCTAFTZ EPg E2022-09-22 09:36:280.1y0141171
IIEES SCTAFTZ ESg E2022-09-22 09:36:45-0.3y0141171
IIEES SCMEHZ EPg E2022-09-22 09:36:360.8y0187160
IIEES SCANJZ EPn E2022-09-22 09:36:46-0.9y0276360
IIEES SCGHVRZ EPn E2022-09-22 09:36:50-0.5y0300304
IIEES SCTABSZ EPn E2022-09-22 09:36:510.3y030676
IIEES SCKLNJZ EPn E2022-09-22 09:36:531.5n4311225
IIEES SCDAMVZ EPn E2022-09-22 09:36:56-0.4y0345328
IIEES SCKHMZZ EPn E2022-09-22 09:37:011y0379283
IIEES SCGLOZ EPn E2022-09-22 09:37:020.7y0391359
IIEES SCASAOZ EPn E2022-09-22 09:37:030y0402296
IIEES SCCHTHZ EPn E2022-09-22 09:37:050.2y0415322
IIEES SCABGHZ EPn E2022-09-22 09:37:05-0.2y042411
IIEES SCKRBRZ EPn E2022-09-22 09:37:082.1n4427141
IIEES SCKKHKZ EPn E2022-09-22 09:37:09-0.3y045574
IIEES SCGTMRZ EPn E2022-09-22 09:37:100.2y0456263
