Date & Time (UTC) 2019-03-13 12:06:39.2
Date & Time (Local) 97/12/22  15:36:39.2

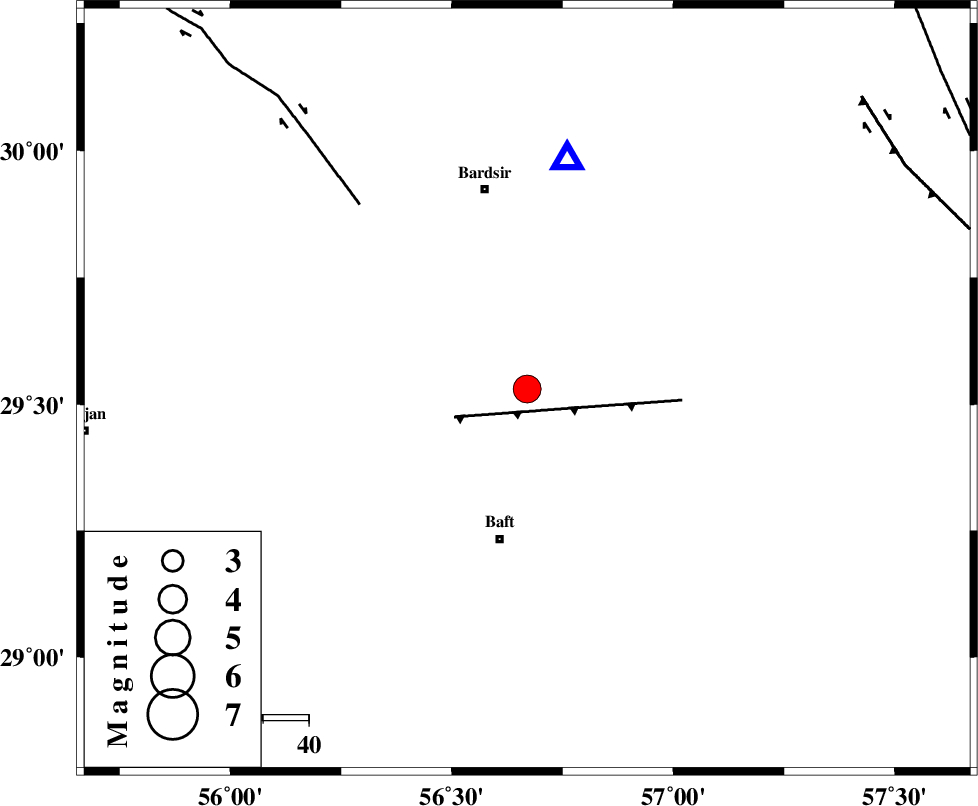

Location Lat:29.53 Lon: 56.67
Region Kerman Province, 33 km North of Baft
Nearest Cities
0 km North of Ghale-ye asgar, Kerman Province
15 km North West of Lalehzar, Kerman Province
19 km North of Karin, Kerman Province
25 km North East of Amirabad, Kerman Province
29 km North West of Askar, Kerman Province
Depth 25 km
Faults within 150 km:
LALEHZAR_F (Length: 52 km) , Distance to epicenter: 17 km
RAFSANJAN_F (Length: 129 km) , Distance to epicenter: 55 km
GOWK_F (Length: 152 km) , Distance to epicenter: 96 km
Number of Phases 14
RMS 0.4
Number of Stations 11
Error in Latitude >2 km
Error in Longitude 0 km
Error in Depth 8 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
141655IIEES SCBNDSZ 190012019-03-13 12:07:442019-03-13 04:08:00n
141656IIEES SCBSRNZ 8912019-03-13 12:07:432019-03-13 04:08:00n
141657IIEES SCGHIRZ 20012019-03-13 12:08:162019-03-13 04:08:00n
141658IIEES SCTABSZ 7512019-03-13 12:09:282019-03-13 04:08:00n
141659IIEES SCUOSSZ 41012019-03-13 12:08:392019-03-13 04:08:00n
141660IIEES SCSHRTZ 5412019-03-13 12:07:582019-03-13 04:08:00n
141661IIEES SCSHROZ 1212019-03-13 12:08:432019-03-13 04:08:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCKRBRZ IP I2019-03-13 12:06:578.4n45510
IIEES SCBNDSN IS I2019-03-13 12:07:43-0.3y244192
IIEES SCBNDSZ IP I2019-03-13 12:07:160.9y244192
IIEES SCBSRNZ IP I2019-03-13 12:07:30-0.4y35541
IIEES SCYZKHZ IP I2019-03-13 12:07:4613.3n4378328
IIEES SCGHIRZ IP I2019-03-13 12:07:330y389249
IIEES SCLMD1Z IP I2019-03-13 12:07:380.2y422235
IIEES SCTABSZ IP I2019-03-13 12:07:430.1y4555
IIEES SCUOSSZ IP I2019-03-13 12:07:48-0.4y511185
IIEES SCKLNJZ IP I2019-03-13 12:07:50-0.1y511289
IIEES SCSHRTZ IP I2019-03-13 12:07:570.4y56737
IIEES SCSHROZ IP I2019-03-13 12:08:15-0.1y722355
IIEES SCBJRDZ IP I2019-03-13 12:08:390.1y9114
IIEES SCAAKZ IP I2019-03-13 12:11:12-2.2n4216848
