Magnitude
:4
Date & Time (UTC) 2019-04-05 23:56:41.5
Date & Time (Local) 98/1/17  04:26:41.5

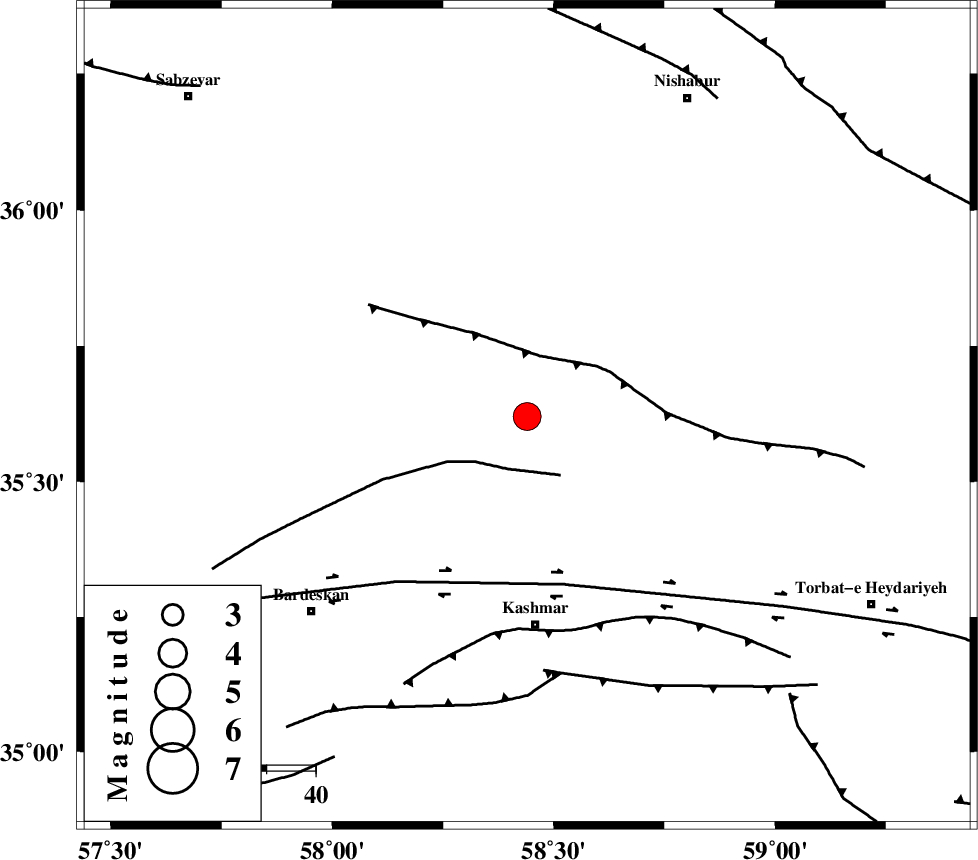

Location Lat:35.62 Lon: 58.44
Region Khorasan(center) Province, 43 km North of Kashmar
Nearest Cities
10 km North East of Ondar, Khorasan(center) Province
17 km North of Toroq, Khorasan(center) Province
17 km North of Rivash, Khorasan(center) Province
28 km East of Ghaleh meidan, Khorasan(center) Province
40 km South West of Golbu-ye sofla, Khorasan(center) Province
Depth 10 km
Agency
Faults within 150 km:
BIJVARD_F (Length: 83 km) , Distance to epicenter: 11 km
BALHAR_F (Length: 117 km) , Distance to epicenter: 13 km
DORUNEH_F (Length: 713 km) , Distance to epicenter: 35 km
Number of Phases 21
RMS 0.3
Number of Stations 16
Error in Latitude >1 km
Error in Longitude 0 km
Error in Depth 6 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
141899IIEES SCAKLZ 400012019-04-05 23:57:022019-04-06 11:33:00n
141900IIEES SCSBZVZ 130012019-04-05 23:57:302019-04-06 11:33:00n
141901IIEES SCSHROZ 49012019-04-05 23:57:492019-04-06 11:33:00n
141902IIEES SCBJRDZ 21012019-04-05 23:57:582019-04-06 11:33:00n
141903IIEES SCTABSZ 74012019-04-05 23:58:042019-04-06 11:33:00n
141904IIEES SCSHRTZ 52012019-04-05 23:58:152019-04-06 11:33:00n
141905IIEES SCMRVTZ 11012019-04-05 23:58:242019-04-06 11:33:00n
141906IIEES SCBSRNZ 9112019-04-05 23:58:522019-04-06 11:33:00n
141907IIEES SCGLOZ 21012019-04-05 23:58:122019-04-06 11:33:00n
141908IIEES SCYZKHZ 12012019-04-05 23:59:182019-04-06 11:33:00n
141909IIEES SCGHVRZ 5212019-04-05 23:58:502019-04-06 11:33:00n
141910IIEES SCGHVRZ 390.582019-04-05 23:58:152019-04-06 11:33:00n
141911IIEES SCASAOZ 2412019-04-06 00:00:452019-04-06 11:33:00n
141912IIEES SCASAOZ 110.862019-04-05 23:58:282019-04-06 11:33:00n
141913IIEES SCKHMZZ 1612019-04-05 23:58:322019-04-06 11:33:00n
141914IIEES SCKHMZZ 120.762019-04-05 23:58:452019-04-06 11:33:00n
141915IIEES SCGRMIZ 70.82019-04-05 23:59:062019-04-06 11:33:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCAKLN IS I2019-04-05 23:57:150y11114
IIEES SCAKLZ IP I2019-04-05 23:57:000y11114
IIEES SCSBZVN IS I2019-04-05 23:57:150.4y111319
IIEES SCSBZVZ IP I2019-04-05 23:57:00-0.8y111319
IIEES SCSHROZ IP I2019-04-05 23:57:16-0.7y222281
IIEES SCBJRDZ IP I2019-04-05 23:57:200y244338
IIEES SCTABSZ IP I2019-04-05 23:57:20-0.3y255209
IIEES SCSHRTZ IP I2019-04-05 23:57:240y278142
IIEES SCMRVTZ IP I2019-04-05 23:57:27-0.3y311317
IIEES SCBSRNZ IP I2019-04-05 23:57:400.1y411171
IIEES SCANJZ IP I2019-04-05 23:57:5413.6n4411268
IIEES SCGLOZ IP I2019-04-05 23:57:430.9y422283
IIEES SCYZKHZ IP I2019-04-05 23:57:520.3y500225
IIEES SCDAMVZ IP I2019-04-05 23:58:085.7n4589270
IIEES SCNASNZ IP I2019-04-05 23:58:138.6n4611239
IIEES SCKRBRZ IP I2019-04-05 23:58:2919.9n4644194
IIEES SCGHVRZ IP I2019-04-05 23:58:141.3y667259
IIEES SCASAOZ IP I2019-04-05 23:58:271.1y778261
IIEES SCKHMZZ IP I2019-04-05 23:58:322.3y800255
IIEES SCGRMIZ IP I2019-04-05 23:58:51-2.4y1000291
IIEES SCAAKZ IP I2019-04-06 00:00:03-3.5n4159061
