Magnitude
:3.5
Date & Time (UTC) 2019-07-19 14:03:12.9
Date & Time (Local) 98/4/28  18:33:12.9

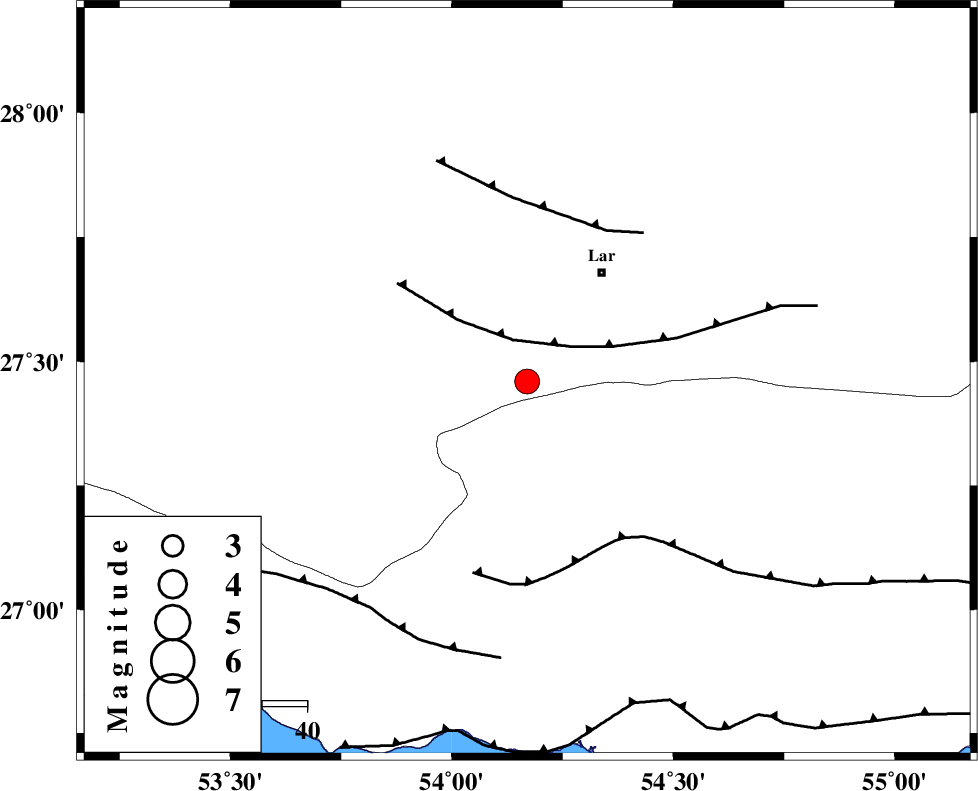

Location Lat:27.46 Lon: 54.17
Region Fars Province, 30 km South-West of Lar
Nearest Cities
14 km East of Bagh, Fars Province
21 km South of Grash, Fars Province
30 km South West of Lar, Fars Province
34 km South West of Latifi, Fars Province
35 km North West of Bastak, Hormozgan Province
Depth 20 km
Agency
Faults within 150 km:
LAR_F (Length: 99 km) , Distance to epicenter: 10 km
BERIZ_F (Length: 49 km) , Distance to epicenter: 38 km
MFF1 (Length: 180 km) , Distance to epicenter: 41 km
Number of Phases 4
RMS 0
Number of Stations 4
Error in Latitude >0 km
Error in Longitude 0 km
Error in Depth 0 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
144374IIEES SCLMD1Z 1100012019-07-19 14:03:532019-07-20 09:32:00n
144375IIEES SCGHIRZ 66012019-07-19 14:03:562019-07-20 09:32:00n
144376IIEES SCBNDSZ 7012019-07-19 14:05:022019-07-20 09:32:00n
144377IIEES SCAHRMZ 11012019-07-19 14:04:422019-07-20 09:32:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCLMD1Z IP I2019-07-19 14:03:290y100262
IIEES SCGHIRN IP I2019-07-19 14:03:37-0.1y144308
IIEES SCBNDSN IP I2019-07-19 14:03:440y20092
IIEES SCAHRMZ IP I2019-07-19 14:04:000.1y322299
