Magnitude
:2.6
Date & Time (UTC) 2019-07-20 12:01:44.5
Date & Time (Local) 98/4/29  16:31:44.5
Location Lat:34.61 Lon: 45.59
Region Iraq, 10 km of Qasr-E-Shirin
Nearest Cities
10 km North of Aqabarar, Kermanshah Province
10 km North of Qasr-E-Shirin, Kermanshah Province
17 km North West of Mirmiru, Kermanshah Province
18 km North of Seyyed sohrab, Kermanshah Province
20 km South West of Tappeh rash, Kermanshah Province
Depth 5 km
Agency

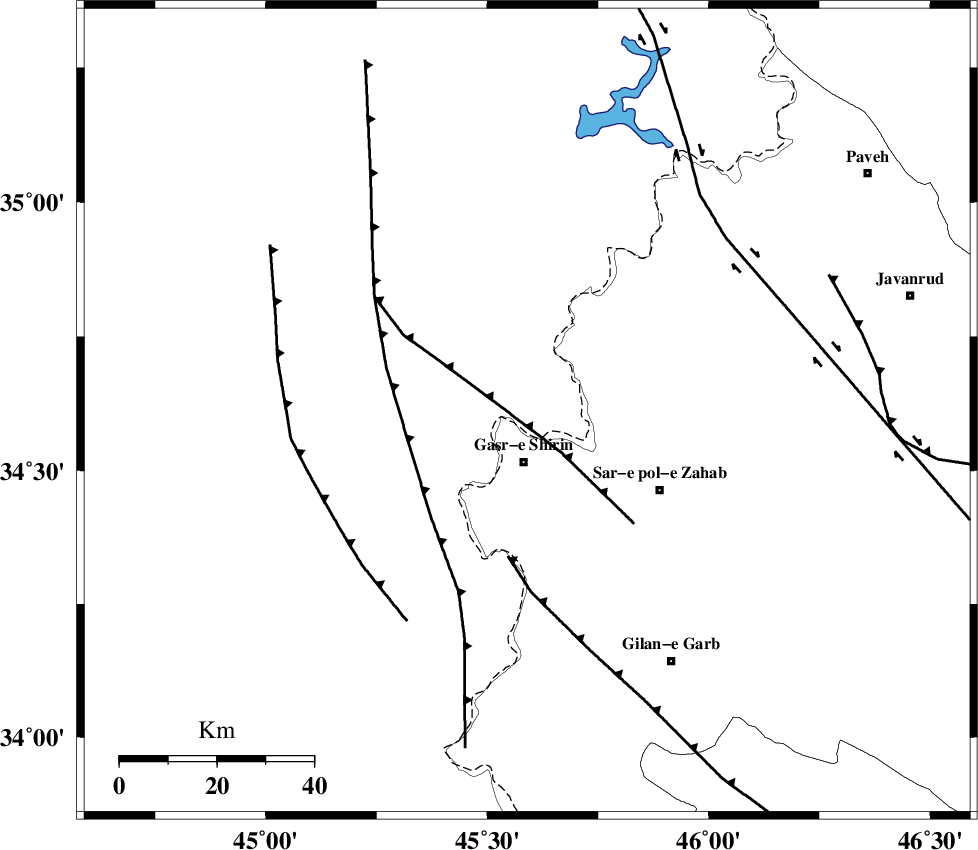

Faults within 150 km:
MFF8 (Length: 48 km) , Distance to epicenter: 13 km
HZF4 (Length: 492 km) , Distance to epicenter: 55 km
ZFF4 (Length: 128 km) , Distance to epicenter: 76 km
Number of Phases 8
RMS 0.8
Number of Stations 4
Error in Latitude >0 km
Error in Longitude 0 km
Error in Depth 0 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
144408IIEES SCKGS1Z 370012019-07-20 12:01:512019-07-21 12:00:00n
144409IIEES SCILBAZ 5912019-07-20 12:02:292019-07-21 12:00:00n
144410IIEES SCSNGEZ 9912019-07-20 12:02:372019-07-21 12:00:00n
144411IIEES SCSRSLZ 5212019-07-20 12:02:402019-07-21 12:00:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCKGS1Z IP I2019-07-20 12:01:46-0.1y11180
IIEES SCILBAN IP I2019-07-20 12:02:050.3y122152
IIEES SCSNGEZ IP I2019-07-20 12:02:121.1y16671
IIEES SCSRSLZ IP I2019-07-20 12:02:141.2y177356
IIEES SCKGS112 2019-07-20 12:01:50y11180
IIEES SCILBA12 2019-07-20 12:02:17y122152
IIEES SCSNGE12 2019-07-20 12:02:38y16671
IIEES SCSRSL12 2019-07-20 12:02:40y177356
