Magnitude
:2.7
Date & Time (UTC) 2019-07-21 23:09:48.0
Date & Time (Local) 98/4/31  03:39:48.0

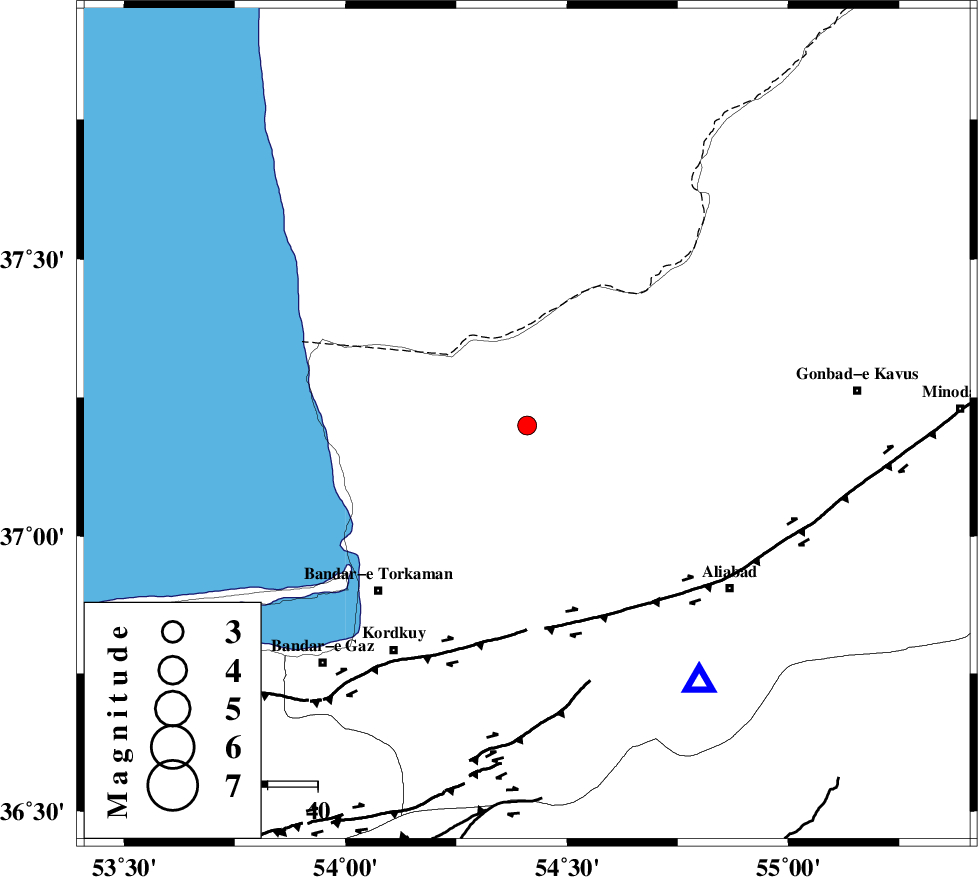

Location Lat:37.2 Lon: 54.41
Region Golestan Province, 21 km North of Aq Qaleh
Nearest Cities
21 km North of Aq Qaleh, Golestan Province
22 km North of Qanqarmeh, Golestan Province
27 km North East of Banavar, Golestan Province
30 km North West of Nodeh malek, Golestan Province
31 km North East of Gomishtappeh, Golestan Province
Depth 14 km
Agency
Faults within 150 km:
KHAZAR_F (Length: 523 km) , Distance to epicenter: 39 km
N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 66 km
SHAVAR_F (Length: 87 km) , Distance to epicenter: 70 km
Number of Phases 14
RMS 0.6
Number of Stations 7
Error in Latitude >3 km
Error in Longitude 0 km
Error in Depth 6 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
144446IIEES SCGLOZ 85012019-07-21 23:10:182019-07-22 11:10:00n
144447IIEES SCMRVTZ 6212019-07-21 23:10:362019-07-22 11:10:00n
144448IIEES SCSHROZ 5012019-07-21 23:10:502019-07-22 11:10:00n
144449IIEES SCANJZ 8112019-07-21 23:10:462019-07-22 11:10:00n
144450IIEES SCBJRDZ 8.712019-07-21 23:11:172019-07-22 11:10:00n
144451IIEES SCDAMVZ 2712019-07-21 23:11:162019-07-22 11:10:00n
144452IIEES SCSBZVZ 1412019-07-21 23:11:212019-07-22 11:10:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCGLOZ IP I2019-07-21 23:10:040.8y88213
IIEES SCMRVTN IP I2019-07-21 23:10:140.3y15571
IIEES SCSHRON IP I2019-07-21 23:10:19-0.2y200133
IIEES SCANJZ IP I2019-07-21 23:10:200y200193
IIEES SCBJRDZ IP I2019-07-21 23:10:290.3y26678
IIEES SCDAMVZ IP I2019-07-21 23:10:29-0.8y278231
IIEES SCSBZVN IP I2019-07-21 23:10:32-0.7y300108
IIEES SCGLO2310 2019-07-21 23:10:18y88213
IIEES SCMRVT2310 2019-07-21 23:10:38y15571
IIEES SCSHRO2311 2019-07-21 23:11:22y200133
IIEES SCANJ2310 2019-07-21 23:10:56y200193
IIEES SCBJRD2311 2019-07-21 23:11:08y26678
IIEES SCDAMV2311 2019-07-21 23:11:43y278231
IIEES SCSBZV2311 2019-07-21 23:11:22y300108
