Magnitude
:3.6
Date & Time (UTC) 2019-07-27 02:49:37.9
Date & Time (Local) 98/5/5  07:19:37.9

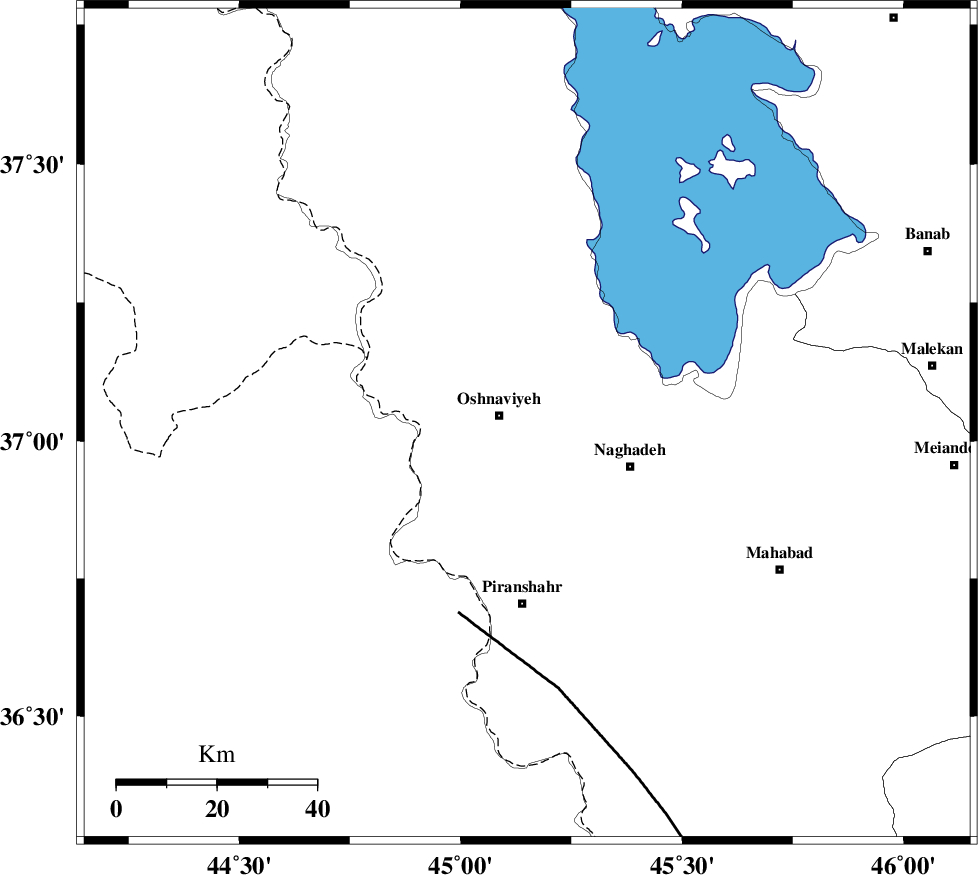

Location Lat:37.03 Lon: 45.15
Region Azarbaijan Gharbi Province, 6 km of Oshnaviyeh
Nearest Cities
5 km North of Nalus, Azarbaijan Gharbi Province
6 km of Oshnaviyeh, Azarbaijan Gharbi Province
14 km North West of Mirabad, Azarbaijan Gharbi Province
15 km South of Aghbelagh, Azarbaijan Gharbi Province
22 km North West of Naqadeh, Azarbaijan Gharbi Province
Depth 12 km
Agency
Faults within 150 km:
PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 40 km
SALMAS (Length: 20 km) , Distance to epicenter: 117 km
N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 132 km
Number of Phases 12
RMS 0.9
Number of Stations 6
Error in Latitude >4 km
Error in Longitude 0 km
Error in Depth 14 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
144603IIEES SCMAHBZ 290012019-07-27 02:50:032019-07-29 10:47:00n
144604IIEES SCSRSLZ 110012019-07-27 02:50:122019-07-29 10:47:00n
144605IIEES SCAZRZ 530012019-07-27 02:50:132019-07-29 10:47:00n
144606IIEES SCGRMIZ 14012019-07-27 02:51:232019-07-29 10:47:00n
144607IIEES SCZNJKZ 6712019-07-27 02:51:192019-07-29 10:47:00n
144608IIEES SCILBAZ 10012019-07-27 02:51:502019-07-29 10:47:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCMAHBZ IP I2019-07-27 02:49:48-0.1y55120
IIEES SCSRSLN IP I2019-07-27 02:49:53-0.2y88164
IIEES SCAZRN IP I2019-07-27 02:49:54-1.6y10046
IIEES SCGRMIN IP I2019-07-27 02:50:261.4y31151
IIEES SCZNJKN IP I2019-07-27 02:50:261y32297
IIEES SCILBAN IP I2019-07-27 02:50:34-0.2y389166
IIEES SCMAHB250 2019-07-27 02:50:02y55120
IIEES SCSRSL250 2019-07-27 02:50:16y88164
IIEES SCAZR250 2019-07-27 02:50:15y10046
IIEES SCGRMI251 2019-07-27 02:51:16y31151
IIEES SCZNJK251 2019-07-27 02:51:19y32297
IIEES SCILBA251 2019-07-27 02:51:20y389166
