Magnitude
:3.6
Date & Time (UTC) 2019-07-27 03:39:12.2
Date & Time (Local) 98/5/5  08:09:12.2

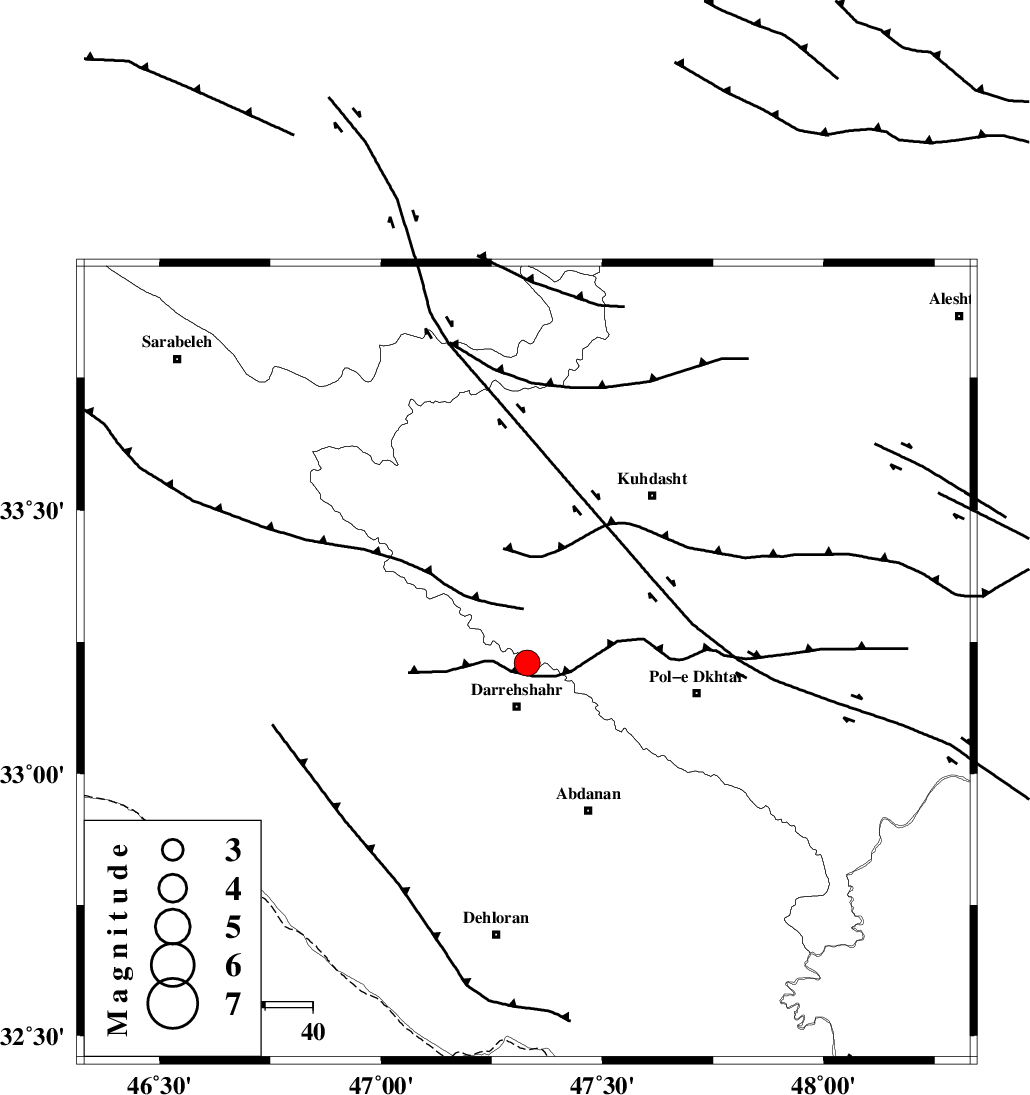

Location Lat:33.21 Lon: 47.33
Region Ilam Province, 10 km of Darreh Shahr
Nearest Cities
5 km North of Dashtabad-e olia, Ilam Province
10 km North of Darreh Shahr, Ilam Province
15 km West of Chaqabol, Lorestan Province
17 km South West of Suri, Lorestan Province
21 km South of Kunani, Lorestan Province
Depth 10 km
Agency
Faults within 150 km:
BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 17 km
MFF6 (Length: 144 km) , Distance to epicenter: 52 km
MFF7 (Length: 99 km) , Distance to epicenter: 72 km
Number of Phases 18
RMS 0.1
Number of Stations 9
Error in Latitude >1 km
Error in Longitude 0 km
Error in Depth 4 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
144609IIEES SCILBAZ 37012019-07-27 03:40:132019-07-29 09:58:00n
144610IIEES SCGTMRZ 89012019-07-27 03:40:242019-07-29 09:58:00n
144611IIEES SCKGS1Z 54012019-07-27 03:40:322019-07-29 09:58:00n
144612IIEES SCKHMZZ 30012019-07-27 03:40:342019-07-29 09:58:00n
144613IIEES SCASAOZ 29012019-07-27 03:40:472019-07-29 09:58:00n
144614IIEES SCSRSLZ 7512019-07-27 03:41:262019-07-29 09:58:00n
144615IIEES SCZNJKZ 6412019-07-27 03:41:152019-07-29 09:58:00n
144616IIEES SCCHTHZ 5912019-07-27 03:41:432019-07-29 09:58:00n
144617IIEES SCKLNJZ 10012019-07-27 03:41:452019-07-29 09:58:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCILBAZ IP I2019-07-27 03:39:31-0.1y111294
IIEES SCGTMRZ IP I2019-07-27 03:39:430.2y189116
IIEES SCKGS1Z IP I2019-07-27 03:39:470.3y211312
IIEES SCKHMZZ IP I2019-07-27 03:39:51-0.3y25577
IIEES SCASAOZ IP I2019-07-27 03:39:560y28959
IIEES SCSRSLZ IP I2019-07-27 03:40:070y378332
IIEES SCZNJKZ IP I2019-07-27 03:40:10-0.1y40018
IIEES SCCHTHN IP I2019-07-27 03:40:16-1.2y45549
IIEES SCKLNJN IP I2019-07-27 03:40:190y467121
IIEES SCILBA339 2019-07-27 03:39:47y111294
IIEES SCGTMR340 2019-07-27 03:40:14y189116
IIEES SCKGS1340 2019-07-27 03:40:36y211312
IIEES SCKHMZ340 2019-07-27 03:40:31y25577
IIEES SCASAO340 2019-07-27 03:40:46y28959
IIEES SCSRSL341 2019-07-27 03:41:26y378332
IIEES SCZNJK341 2019-07-27 03:41:22y40018
IIEES SCCHTH341 2019-07-27 03:41:30y45549
IIEES SCKLNJ342 2019-07-27 03:42:01y467121
