Magnitude
:3.3
Date & Time (UTC) 2019-07-27 14:38:54.3
Date & Time (Local) 98/5/5  19:08:54.3

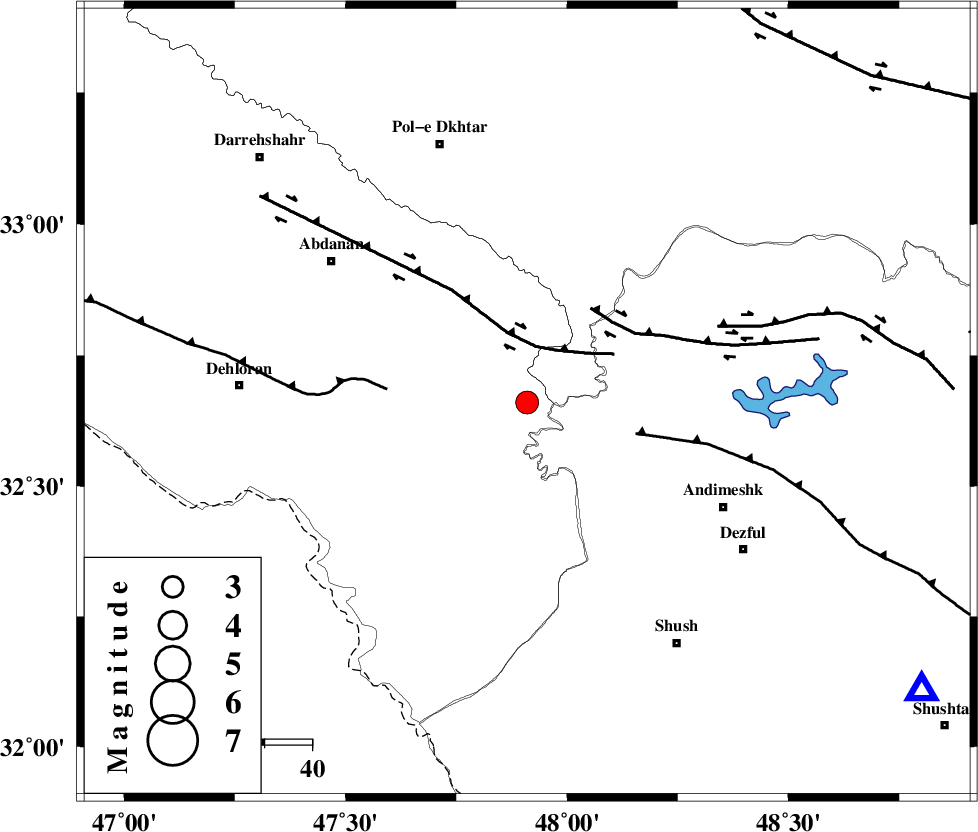

Location Lat:32.66 Lon: 47.91
Region Ilam Province, 47 km North-West of Andimeshk
Nearest Cities
32 km West of Hoseinieh, Khoozestan Province
32 km West of Bidruyeh, Khoozestan Province
41 km South West of Sorkhakan, Khoozestan Province
42 km South East of Sarabbagh, Ilam Province
47 km North West of Andimeshk, Khoozestan Province
Depth 14 km
Agency
Faults within 150 km:
BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 12 km
DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 24 km
BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 24 km
Number of Phases 10
RMS 0.5
Number of Stations 5
Error in Latitude >9 km
Error in Longitude 0 km
Error in Depth 24 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
144618IIEES SCGTMRZ 44012019-07-27 14:39:332019-07-29 08:50:00n
144619IIEES SCKHMZZ 16012019-07-27 14:40:052019-07-29 08:50:00n
144620IIEES SCASAOZ 8312019-07-27 14:40:252019-07-29 08:50:00n
144621IIEES SCKGS1Z 21012019-07-27 14:40:472019-07-29 08:50:00n
144622IIEES SCKLNJZ 3612019-07-27 14:41:072019-07-29 08:50:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCGTMRN IP I2019-07-27 14:39:12-0.6y111101
IIEES SCKHMZZ IP I2019-07-27 14:39:29-0.5y22258
IIEES SCASAOZ IP I2019-07-27 14:39:380.7y28943
IIEES SCKGS1Z IP I2019-07-27 14:39:38-0.1y300313
IIEES SCKLNJN IP I2019-07-27 14:39:521.4y389118
IIEES SCGTMR1439 2019-07-27 14:39:35y111101
IIEES SCKHMZ1440 2019-07-27 14:40:04y22258
IIEES SCASAO1440 2019-07-27 14:40:20y28943
IIEES SCKGS11440 2019-07-27 14:40:30y300313
IIEES SCKLNJ1441 2019-07-27 14:41:03y389118
