Magnitude
:3.6
Date & Time (UTC) 2019-07-29 10:02:45.4
Date & Time (Local) 98/5/7  14:32:45.4

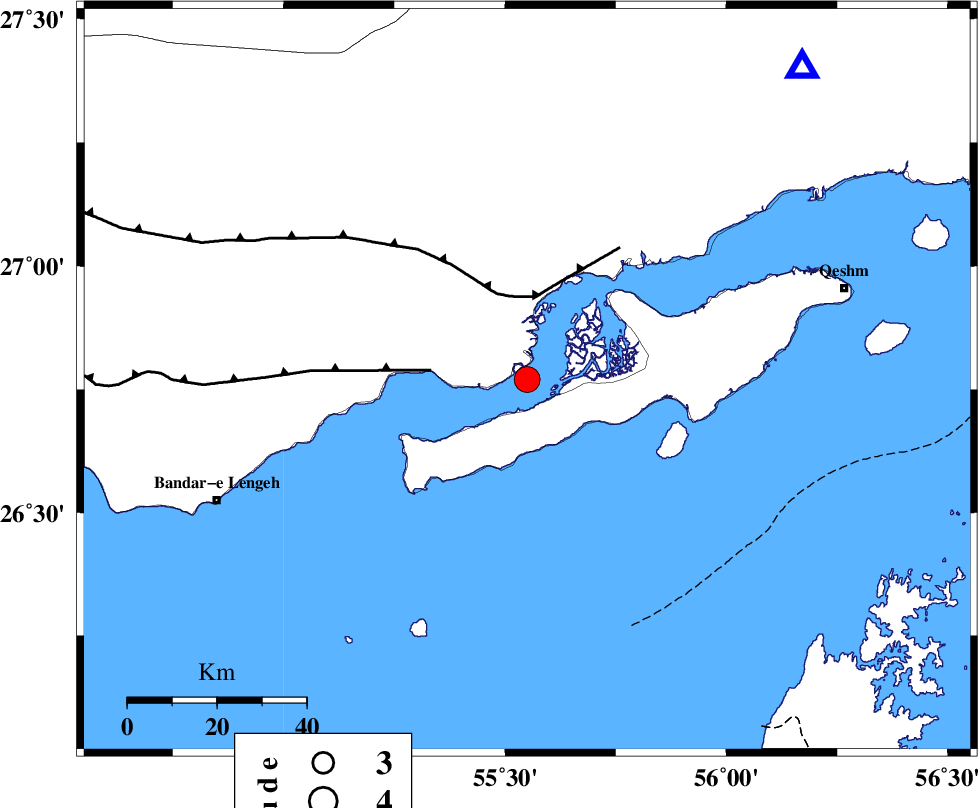

Location Lat:26.77 Lon: 55.55
Region Persian Gulf, 74 km South-West of Qeshm
Nearest Cities
20 km South of Bandar-e khamir, Hormozgan Province
50 km West of Suza, Hormozgan Province
74 km South West of Qeshm, Hormozgan Province
75 km North East of Bandar-e lengeh, Hormozgan Province
86 km South West of Bandar-e abbas, Hormozgan Province
Depth 10 km
Agency
Faults within 150 km:
MFF1 (Length: 180 km) , Distance to epicenter: 19 km
ZFF1 (Length: 165 km) , Distance to epicenter: 22 km
LAR_F (Length: 99 km) , Distance to epicenter: 118 km
Number of Phases 13
RMS 0.6
Number of Stations 7
Error in Latitude >8 km
Error in Longitude 0 km
Error in Depth 10 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
144678IIEES SCBNDSZ 150012019-07-29 10:03:192019-08-03 05:14:00n
144679IIEES SCLMD1Z 54012019-07-29 10:04:182019-08-03 05:14:00n
144680IIEES SCKRBRZ 13012019-07-29 10:04:262019-08-03 05:14:00n
144681IIEES SCZHSFZ 1312019-07-29 10:04:192019-08-03 05:14:00n
144682IIEES SCKLNJZ 5112019-07-29 10:05:142019-08-03 05:14:00n
144683IIEES SCYZKHZ 1712019-07-29 10:04:522019-08-03 05:14:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCBNDSZ IP I2019-07-29 10:03:01-0.5y8841
IIEES SCLMD1Z IP I2019-07-29 10:03:240.1y244285
IIEES SCKRBRN IS I2019-07-29 10:04:210.2y37818
IIEES SCKRBRZ IP I2019-07-29 10:03:411.1y37818
IIEES SCZHSFZ IP I2019-07-29 10:04:080y60058
IIEES SCKLNJZ IP I2019-07-29 10:04:08-1.1y611321
IIEES SCYZKHZ IP I2019-07-29 10:04:120y633351
IIEES SCBNDS10 2019-07-29 10:03:24y8841
IIEES SCLMD110 2019-07-29 10:04:21y244285
IIEES SCKRBR10 2019-07-29 10:04:26y37818
IIEES SCZHSF10 2019-07-29 10:04:20y60058
IIEES SCKLNJ10 2019-07-29 10:05:13y611321
IIEES SCYZKH10 2019-07-29 10:05:21y633351
