Magnitude
:3.8
Date & Time (UTC) 2019-08-14 15:10:23.1
Date & Time (Local) 98/5/23  19:40:23.1

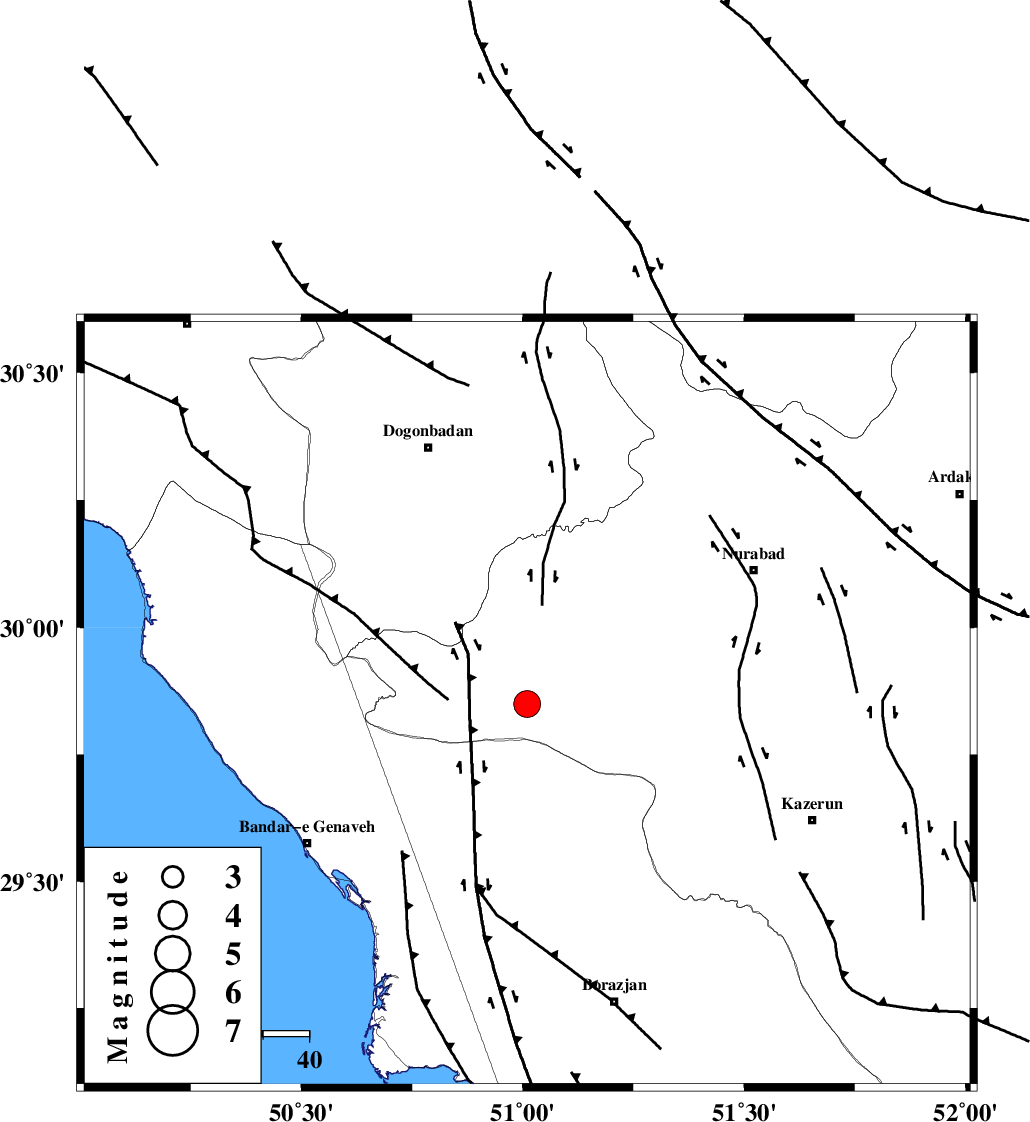

Location Lat:29.85 Lon: 51.01
Region Fars Province, 60 km South-East of Dogonbadan
Nearest Cities
30 km South West of Babamonir, Fars Province
40 km North East of Chehar rustaee, Bushehr Province
42 km North of Dehkohneh, Bushehr Province
45 km North East of Mohammad salehi, Bushehr Province
45 km North West of Khesht, Fars Province
Depth 19 km
Agency
Faults within 150 km:
ZFF3 (Length: 125 km) , Distance to epicenter: 32 km
BORAZJAN_F (Length: 168 km) , Distance to epicenter: 41 km
MISHAN_F (Length: 76 km) , Distance to epicenter: 46 km
Number of Phases 12
RMS 0.1
Number of Stations 6
Error in Latitude >1 km
Error in Longitude 0 km
Error in Depth 2 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
144815IIEES SCAHRMZ 12012019-08-14 15:11:062019-08-17 11:58:00n
144816IIEES SCKLNJZ 210012019-08-14 15:11:072019-08-17 11:58:00n
144817IIEES SCGHIRZ 6412019-08-14 15:12:062019-08-17 11:58:00n
144818IIEES SCGTMRZ 39012019-08-14 15:12:102019-08-17 11:58:00n
144819IIEES SCKHMZZ 7712019-08-14 15:12:462019-08-17 11:58:00n
144820IIEES SCKRBRZ 5112019-08-14 15:13:232019-08-17 11:58:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCAHRMZ IP I2019-08-14 15:10:410y111166
IIEES SCKLNJZ IP I2019-08-14 15:10:460y14424
IIEES SCGHIRZ IP I2019-08-14 15:11:020.2y255132
IIEES SCGTMRZ IP I2019-08-14 15:11:120y344328
IIEES SCKHMZZ IP I2019-08-14 15:11:250.1y444347
IIEES SCKRBRZ IP I2019-08-14 15:11:39-0.2y55688
IIEES SCAHRM1510 2019-08-14 15:10:54y111166
IIEES SCKLNJ1511 2019-08-14 15:11:08y14424
IIEES SCGHIR1512 2019-08-14 15:12:27y255132
IIEES SCGTMR1512 2019-08-14 15:12:21y344328
IIEES SCKHMZ1512 2019-08-14 15:12:36y444347
IIEES SCKRBR1513 2019-08-14 15:13:05y55688
