Magnitude
:2.7
Date & Time (UTC) 2019-08-27 13:44:31.2
Date & Time (Local) 98/6/5  18:14:31.2

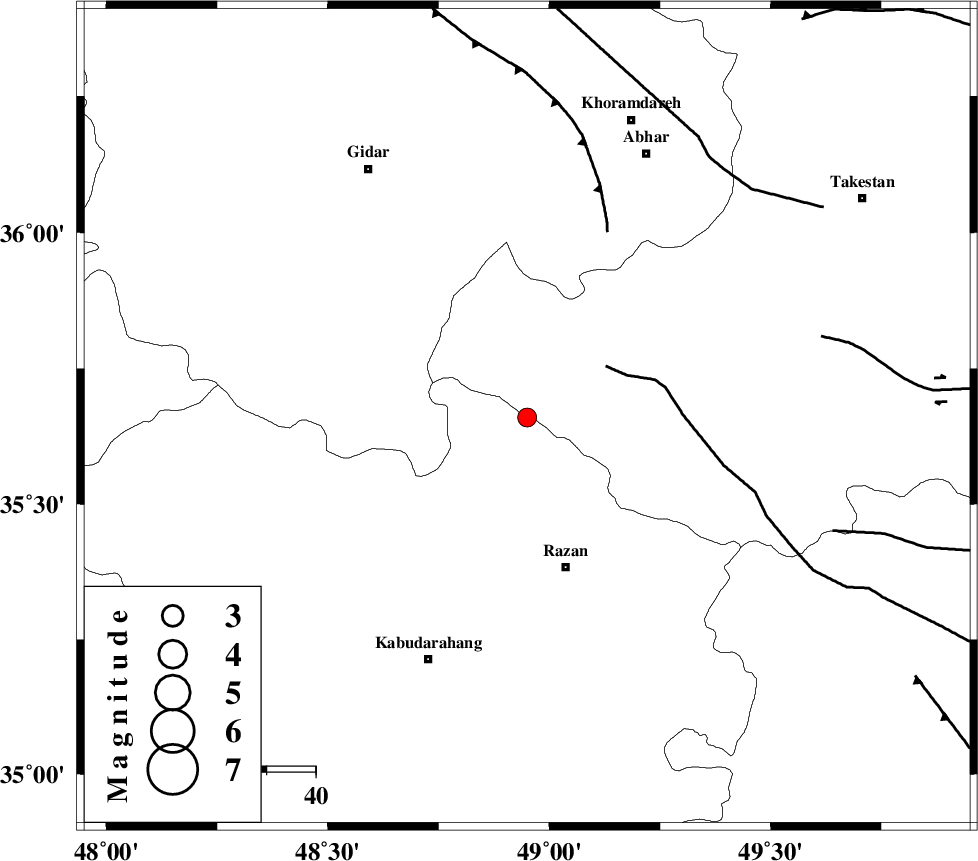

Location Lat:35.66 Lon: 48.95
Region Hamedan Province, 32 km North of Razan
Nearest Cities
21 km North East of Khorandeh, Hamedan Province
24 km East of Kahla, Zanjan Province
27 km North East of Damag, Hamedan Province
27 km North West of Avaj, Ghazvin Province
31 km North East of Babanazar, Hamedan Province
Depth 14 km
Agency
Faults within 150 km:
KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 19 km
SOLTANIYEH_F (Length: 119 km) , Distance to epicenter: 41 km
IPAK_F (Length: 80 km) , Distance to epicenter: 62 km
Number of Phases 12
RMS 0.5
Number of Stations 6
Error in Latitude >4 km
Error in Longitude 0 km
Error in Depth 17 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
145012IIEES SCZNJKZ 5312019-08-27 13:45:052019-08-28 12:50:00n
145013IIEES SCASAOZ 4912019-08-27 13:45:212019-08-28 12:50:00n
145014IIEES SCGIDEZ 29012019-08-27 13:45:312019-08-28 12:50:00n
145015IIEES SCTHKVZ 5812019-08-27 13:45:312019-08-28 12:50:00n
145016IIEES SCCHTHZ 3512019-08-27 13:45:372019-08-28 12:50:00n
145017IIEES SCKHMZZ 8412019-08-27 13:45:392019-08-28 12:50:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCZNJKZ IP I2019-08-27 13:44:50-0.4y111348
IIEES SCASAOZ IP I2019-08-27 13:44:56-0.5y155141
IIEES SCGIDEN IP I2019-08-27 13:44:580.7y16632
IIEES SCTHKVZ IP I2019-08-27 13:44:59-0.5y17781
IIEES SCCHTHZ IP I2019-08-27 13:45:03-0.2y20082
IIEES SCKHMZZ IP I2019-08-27 13:45:080.7y233156
IIEES SCZNJK1345 2019-08-27 13:45:06y111348
IIEES SCASAO1345 2019-08-27 13:45:18y155141
IIEES SCGIDE1345 2019-08-27 13:45:24y16632
IIEES SCTHKV1345 2019-08-27 13:45:33y17781
IIEES SCCHTH1345 2019-08-27 13:45:31y20082
IIEES SCKHMZ1345 2019-08-27 13:45:40y233156
