Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
:3.7
Date & Time (UTC) 2019-08-27 13:55:12.9
Date & Time (Local) 98/6/5  18:25:12.9

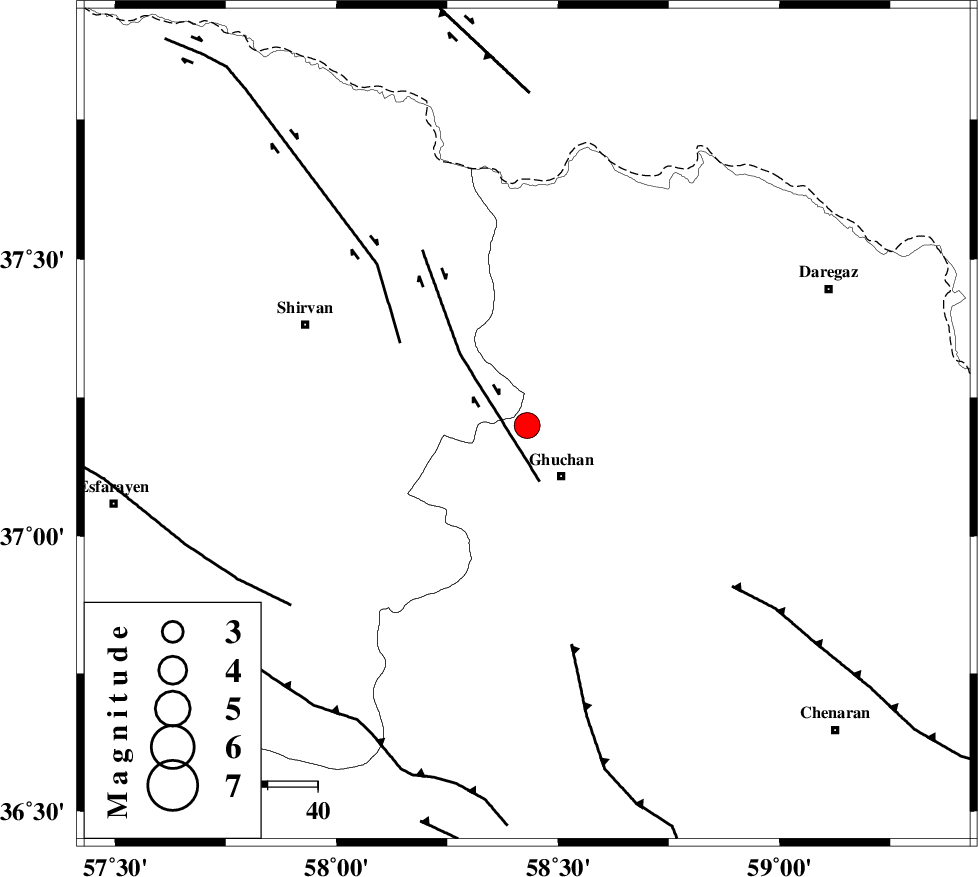

Location Lat:37.2 Lon: 58.43
Region Khorasan(center) Province, 12 km of Quchan
Nearest Cities
8 km North of Shahr-e kohneh, Khorasan(center) Province
12 km North West of Mazraj, Khorasan(center) Province
12 km North of Quchan, Khorasan(center) Province
14 km East of Yatnakanlu, Khorasan(center) Province
19 km East of Faruj, Khorasan(center) Province
Depth 14 km
Agency
Faults within 150 km:
GHUCHAN_F (Length: 50 km) , Distance to epicenter: 12 km
BAGHAN_GERMAB_F (Length: 79 km) , Distance to epicenter: 30 km
BINALUD_F1 (Length: 129 km) , Distance to epicenter: 45 km
Number of Phases 16
RMS 0.5
Number of Stations 8
Error in Latitude >2 km
Error in Longitude 0 km
Error in Depth 3 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
145018IIEES SCAKLZ 460012019-08-27 13:55:372019-08-28 12:44:00n
145019IIEES SCBJRDZ 98012019-08-27 13:55:312019-08-28 12:44:00n
145020IIEES SCSBZVZ 110012019-08-27 13:55:502019-08-28 12:44:00n
145021IIEES SCMRVTZ 45012019-08-27 13:56:242019-08-28 12:44:00n
145022IIEES SCSHROZ 20012019-08-27 13:56:262019-08-28 12:44:00n
145023IIEES SCTBJMZ 37012019-08-27 13:56:382019-08-28 12:44:00n
145024IIEES SCTABSZ 9212019-08-27 13:57:412019-08-28 12:44:00n
145025IIEES SCSHRTZ 7312019-08-27 13:57:222019-08-28 12:44:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCAKLZ IP I2019-08-27 13:55:24-1y77157
IIEES SCBJRDZ IP I2019-08-27 13:55:30-0.4y100302
IIEES SCSBZVZ IP I2019-08-27 13:55:32-0.5y111219
IIEES SCMRVTZ IP I2019-08-27 13:55:470.2y211284
IIEES SCSHROZ IP I2019-08-27 13:55:520.2y255238
IIEES SCTBJMZ IP I2019-08-27 13:55:550.8y278141
IIEES SCTABSZ IP I2019-08-27 13:56:120.8y411197
IIEES SCSHRTZ IP I2019-08-27 13:56:13-0.1y433157
IIEES SCAKL1355 2019-08-27 13:55:37y77157
IIEES SCBJRD1355 2019-08-27 13:55:49y100302
IIEES SCSBZV1355 2019-08-27 13:55:48y111219
IIEES SCMRVT1356 2019-08-27 13:56:22y211284
IIEES SCSHRO1357 2019-08-27 13:57:08y255238
IIEES SCTBJM1356 2019-08-27 13:56:38y278141
IIEES SCTABS1357 2019-08-27 13:57:23y411197
IIEES SCSHRT1357 2019-08-27 13:57:27y433157
