Date & Time (UTC) 2019-11-19 22:36:14.8
Date & Time (Local) 98/8/29  02:06:14.8
Location Lat:26.99 Lon: 57.91
Region Kerman Province, 62 km South-East of Manujan
Nearest Cities
13 km South of Keshmiran, Kerman Province
44 km North of Angahran, Hormozgan Province
51 km North East of Darpahn, Hormozgan Province
51 km North East of Sanadrak, Hormozgan Province
60 km South of Qalehy-eganj, Kerman Province
Depth 14 km

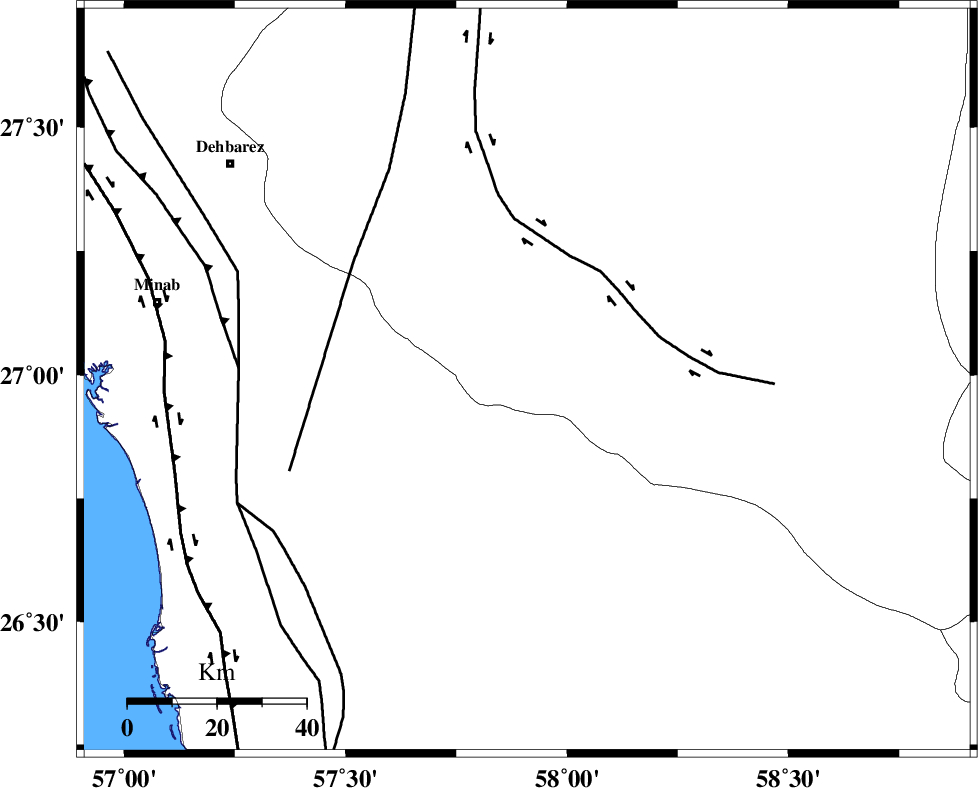

Faults within 150 km:
JIROFT_F (Length: 144 km) , Distance to epicenter: 29 km
SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 47 km
ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 65 km
Number of Phases 9
RMS 0.4
Number of Stations 9
Error in Latitude >4 km
Error in Longitude 0 km
Error in Depth 627 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
148597IIEES SCCHBRZ 2012019-11-19 22:37:522019-11-20 10:04:00n
148598IIEES SCKRBRZ 5412019-11-19 22:38:002019-11-20 10:04:00n
148599IIEES SCSRVNZ 5.512019-11-19 22:38:432019-11-20 10:04:00n
148600IIEES SCGHIRZ 2.512019-11-19 22:37:592019-11-20 10:04:00n
148601IIEES SCBSRNZ 1112019-11-19 22:39:032019-11-20 10:04:00n
148602IIEES SCBSRNZ 7.50.642019-11-19 22:37:532019-11-20 10:04:00n
148603IIEES SCYZKHZ 5.412019-11-19 22:39:402019-11-20 10:04:00n
148604IIEES SCYZKHZ 4.60.822019-11-19 22:38:102019-11-20 10:04:00n
148605IIEES SCTABSZ 7.312019-11-19 22:39:482019-11-20 10:04:00n
148606IIEES SCTABSZ 3.21.72019-11-19 22:38:202019-11-20 10:04:00n
148607IIEES SCKLNJZ 1112019-11-19 22:39:362019-11-20 10:04:00n
148608IIEES SCKLNJZ 50.772019-11-19 22:38:032019-11-20 10:04:00n
148609IIEES SCSHRTZ 3.612019-11-19 22:39:002019-11-20 10:04:00n
148610IIEES SCSHRTZ 2.41.742019-11-19 22:38:082019-11-20 10:04:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCCHBRZ IP I2019-11-19 22:36:590.2y300121
IIEES SCKRBRN IP I2019-11-19 22:37:071.1y355341
IIEES SCSRVNZ IP I2019-11-19 22:37:18-0.2y44484
IIEES SCGHIRZ IP I2019-11-19 22:37:25-0.1y511286
IIEES SCBSRNN IP I2019-11-19 22:37:31-1.1y56712
IIEES SCYZKHN IP I2019-11-19 22:37:45-1.4y678332
IIEES SCTABSN IP I2019-11-19 22:37:551y745354
IIEES SCKLNJZ IP I2019-11-19 22:37:54-2.4y756306
IIEES SCSHRTZ IP I2019-11-19 22:37:591.3y77817
