Date & Time (UTC) 2020-04-28 01:50:28.9
Date & Time (Local) 99/2/9  06:20:28.9

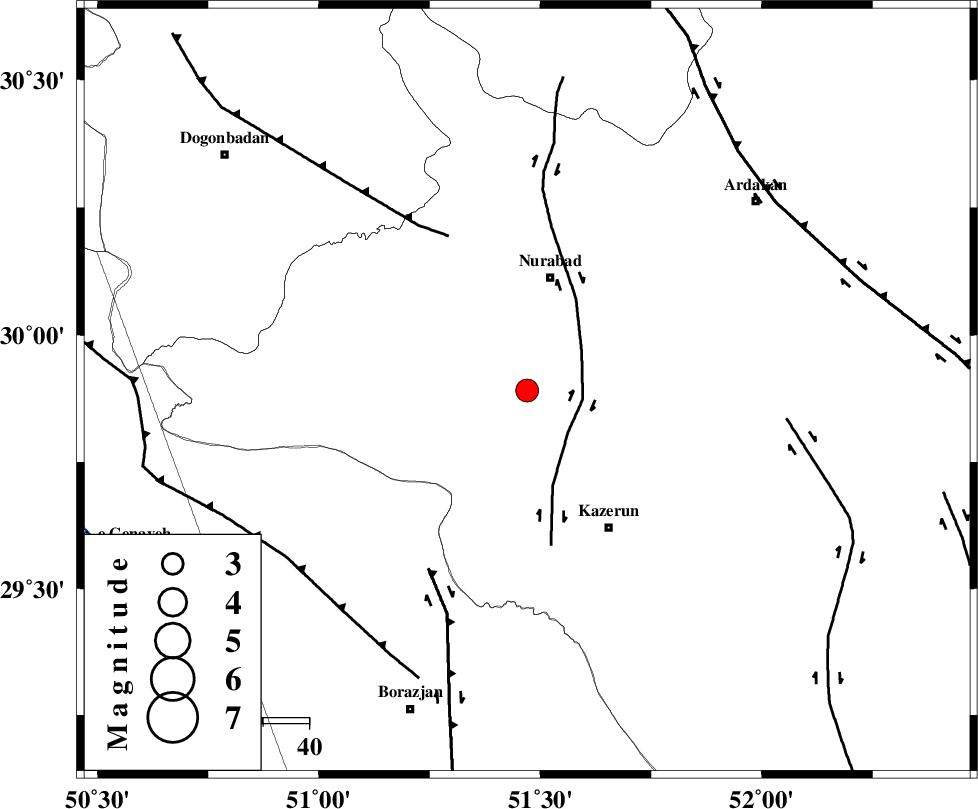

Location Lat:29.89 Lon: 51.47
Region Fars Province, 25 km South of Nurabad
Nearest Cities
18 km North West of Seyyed hasan, Fars Province
23 km South of Gachgaran, Fars Province
25 km North West of Nodan, Fars Province
25 km South of Nurabad, Fars Province
26 km North West of Deris, Fars Province
Depth 10 km
Faults within 150 km:
KAZERUN_F (Length: 96 km) , Distance to epicenter: 12 km
MISHAN_F (Length: 76 km) , Distance to epicenter: 38 km
BORAZJAN_F (Length: 168 km) , Distance to epicenter: 45 km
Number of Phases 9
RMS 0.1
Number of Stations 9
Error in Latitude >1 km
Error in Longitude 0 km
Error in Depth 3 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
153309IIEES SCAHRMZ 20012020-04-28 01:51:082020-04-28 07:38:00n
153310IIEES SCKLNJZ 57012020-04-28 01:51:162020-04-28 07:38:00n
153311IIEES SCAMISZ 9112020-04-28 01:52:092020-04-28 07:38:00n
153312IIEES SCNASNZ 1612020-04-28 01:52:062020-04-28 07:38:00n
153313IIEES SCGTMRZ 5712020-04-28 01:52:392020-04-28 07:38:00n
153314IIEES SCYZKHZ 1312020-04-28 01:52:352020-04-28 07:38:00n
153315IIEES SCKHMZZ 1112020-04-28 01:52:562020-04-28 07:38:00n
153316IIEES SCDAMVZ 1212020-04-28 01:53:032020-04-28 07:38:00n
153317IIEES SCDAMVZ 120.562020-04-28 01:52:012020-04-28 07:38:00n
153318IIEES SCSNGEZ 712020-04-28 01:53:222020-04-28 07:38:00n
153319IIEES SCSNGEZ 3.10.682020-04-28 01:52:072020-04-28 07:38:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCAHRMZ IP I2020-04-28 01:50:480y111188
IIEES SCKLNJZ IP I2020-04-28 01:50:49-0.1y1225
IIEES SCAMISZ IP I2020-04-28 01:51:120.1y289313
IIEES SCNASNZ IP I2020-04-28 01:51:20-0.1y34422
IIEES SCGTMRZ IP I2020-04-28 01:51:220y366322
IIEES SCYZKHZ IP I2020-04-28 01:51:270y41147
IIEES SCKHMZZ IP I2020-04-28 01:51:340.9y444342
IIEES SCDAMVZ IP I2020-04-28 01:51:56-0.3y6334
IIEES SCSNGEZ IP I2020-04-28 01:52:041.1y700326
