Magnitude
:3
Date & Time (UTC) 2020-05-04 13:07:47.7
Date & Time (Local) 99/2/15  17:37:47.7

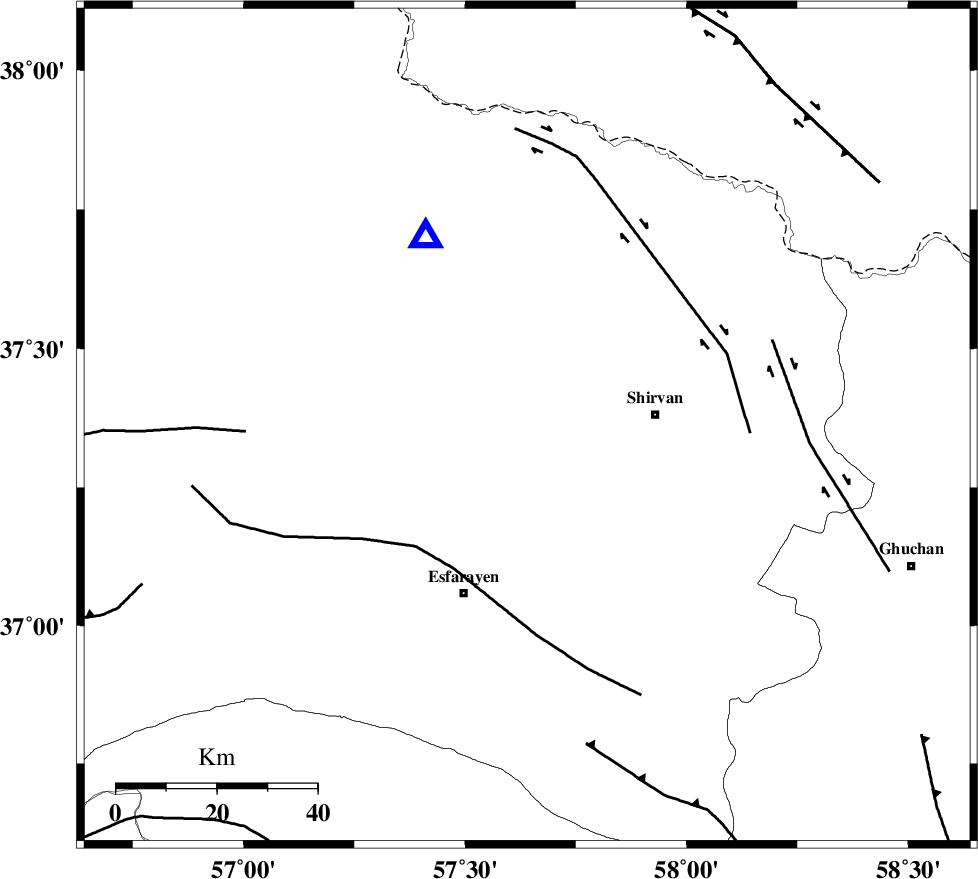

Location Lat:37.36 Lon: 57.64
Region Khorasan(north) Province, 26 km -West of Shirvan
Nearest Cities
10 km North of Zavarom, Khorasan(north) Province
22 km South East of Hesar-egarmkhanh, Khorasan(north) Province
25 km West of Ziyarat, Khorasan(north) Province
26 km West of Shirvan, Khorasan(north) Province
28 km North West of Geliyan, Khorasan(north) Province
Depth 10 km
Agency
Faults within 150 km:
ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 32 km
BAGHAN_GERMAB_F (Length: 79 km) , Distance to epicenter: 42 km
GHUCHAN_F (Length: 50 km) , Distance to epicenter: 52 km
Number of Phases 10
RMS 0.6
Number of Stations 9
Error in Latitude >4 km
Error in Longitude 0 km
Error in Depth 9 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
153562IIEES SCBJRDZ 120012020-05-04 13:08:032020-05-06 01:38:00n
153563IIEES SCSBZVZ 17012020-05-04 13:08:202020-05-06 01:38:00n
153564IIEES SCAKLZ 18012020-05-04 13:08:342020-05-06 01:38:00n
153565IIEES SCMRVTZ 21012020-05-04 13:08:362020-05-06 01:38:00n
153566IIEES SCSHROZ 3.312020-05-04 13:08:462020-05-06 01:38:00n
153567IIEES SCTBJMZ 6212020-05-04 13:09:372020-05-06 01:38:00n
153568IIEES SCTABSZ 1612020-05-04 13:09:582020-05-06 01:38:00n
153569IIEES SCSHRTZ 8.312020-05-04 13:10:172020-05-06 01:38:00n
153570IIEES SCBSRNZ 2.312020-05-04 13:11:082020-05-06 01:38:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCBJRDZ IP I2020-05-04 13:07:550.1y44331
IIEES SCSBZVZ IP I2020-05-04 13:08:05-0.7y111181
IIEES SCAKLZ IP I2020-05-04 13:08:09-0.8y133131
IIEES SCMRVTZ IP I2020-05-04 13:08:11-0.2y144283
IIEES SCSHROZ IP I2020-05-04 13:08:220.5y211224
IIEES SCTBJMZ IP I2020-05-04 13:08:381y333134
IIEES SCGLOZ IP I2020-05-04 13:08:412.1n4355254
IIEES SCTABSZ IP I2020-05-04 13:08:481.5y411187
IIEES SCSHRTZ IP I2020-05-04 13:08:550.1y478150
IIEES SCBSRNZ IP I2020-05-04 13:09:120.1y611167
