Magnitude
:2.5
Date & Time (UTC) 2020-05-07 20:42:12.1
Date & Time (Local) 99/2/19  01:12:12.1

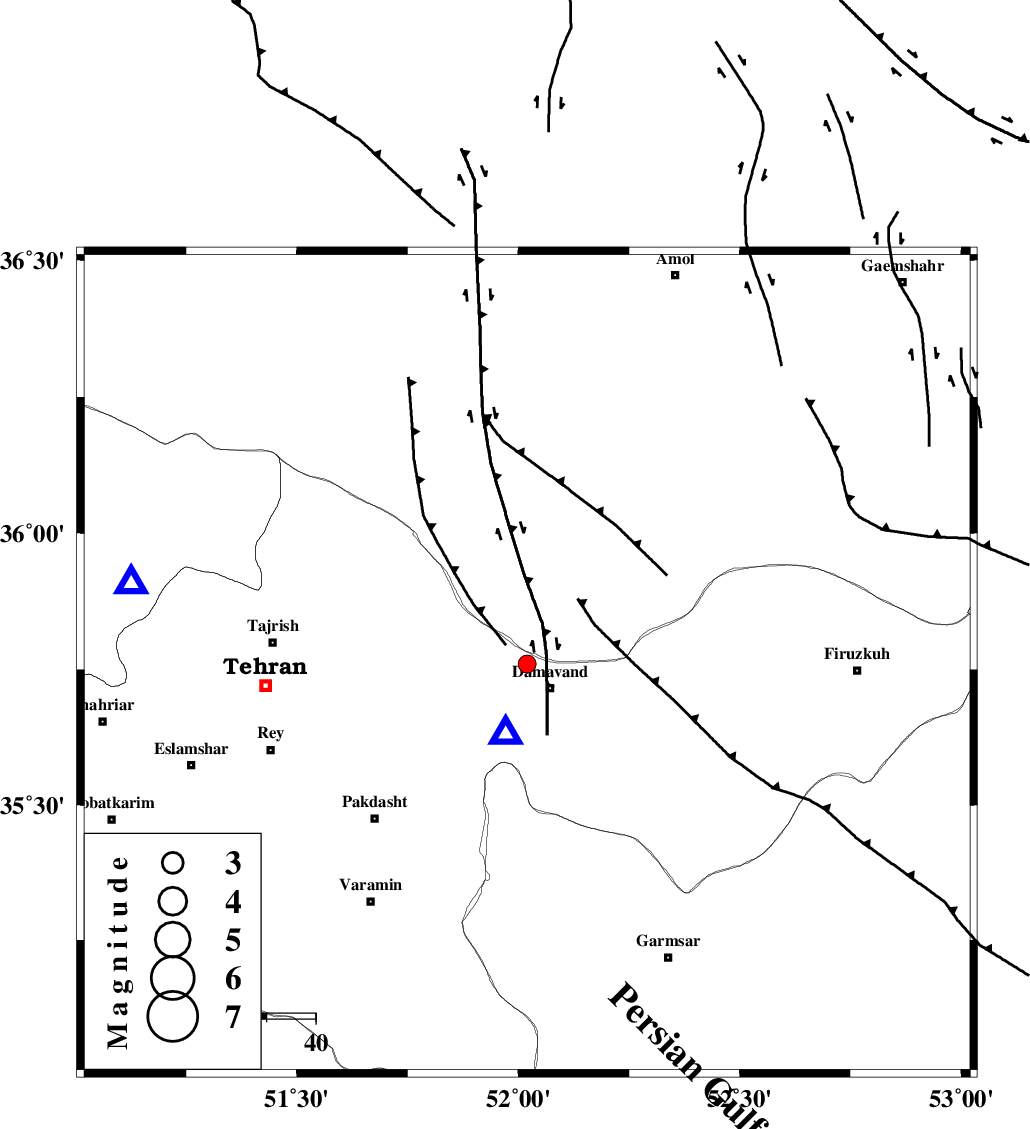

Location Lat:35.76 Lon: 52.02
Region Tehran Province, 7 km of Damavand
Nearest Cities
1 km of Abali, Tehran Province
7 km North of Damavand, Tehran Province
12 km North of Ab sard, Tehran Province
13 km North East of Rudehen, Tehran Province
14 km North East of Bumehen, Tehran Province
Depth 10 km
Agency
Faults within 150 km:
MOSHA_F (Length: 234 km) , Distance to epicenter: 3 km
N_TEHRAN_F4 (Length: 115 km) , Distance to epicenter: 22 km
EYVANEKEY_F (Length: 74 km) , Distance to epicenter: 38 km
Number of Phases 11
RMS 1.5
Number of Stations 9
Error in Latitude >0 km
Error in Longitude 0 km
Error in Depth 7 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
153631IIEES SCDAMVZ 250012020-05-07 20:42:202020-05-08 01:56:00n
153632IIEES SCCHTHZ 9512020-05-07 20:42:382020-05-08 01:56:00n
153633IIEES SCTHKVZ 19012020-05-07 20:42:462020-05-08 01:56:00n
153634IIEES SCGHVRZ 70012020-05-07 20:43:002020-05-08 01:56:00n
153635IIEES SCQABGZ 7.812020-05-07 20:43:182020-05-08 01:56:00n
153636IIEES SCGIDEZ 4712020-05-07 20:43:292020-05-08 01:56:00n
153637IIEES SCKHMZZ 1212020-05-07 20:43:352020-05-08 01:56:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCDAMVN IS I2020-05-07 20:42:180y11199
IIEES SCDAMVZ IP I2020-05-07 20:42:12-3.2y11199
IIEES SCCHTHN IS I2020-05-07 20:42:36-1y77282
IIEES SCCHTHZ IP I2020-05-07 20:42:270.2y77282
IIEES SCTHKVZ IP I2020-05-07 20:42:311.1y100280
IIEES SCGHVRZ IP I2020-05-07 20:42:391y155207
IIEES SCANJZ IP I2020-05-07 20:42:421.2n4177101
IIEES SCQABGZ IP I2020-05-07 20:42:480.8y222269
IIEES SCGIDEZ IP I2020-05-07 20:42:47-1.6y233304
IIEES SCKHMZZ IP I2020-05-07 20:42:592.2y289220
IIEES SCNASNZ IP I2020-05-07 20:43:075n4333168
