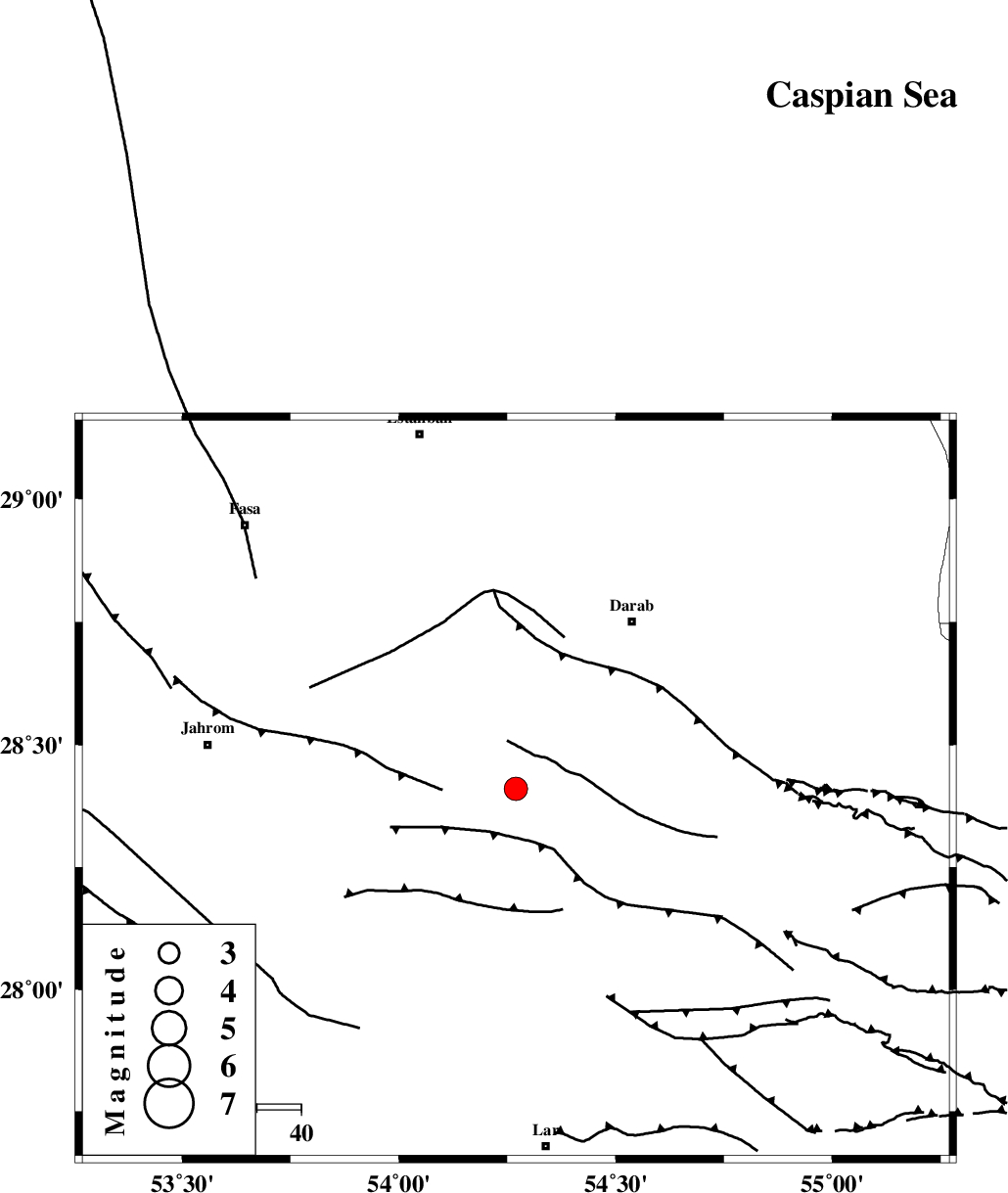

Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
:3.4
Date & Time (UTC) 2020-05-09 03:08:08.1
Date & Time (Local) 99/2/20  07:38:08.1
Location Lat:28.41 Lon: 54.27
Region Fars Province, 46 km South-West of Darab
Nearest Cities
7 km North of Dabiran, Fars Province
13 km North of Shahr-e pir, Fars Province
16 km North West of Hajiabad, Fars Province
31 km South West of Nasrovan, Fars Province
38 km South of Madoan, Fars Province
Depth 10 km
Agency
Faults within 150 km:
HZF2 (Length: 437 km) , Distance to epicenter: 32 km
HZF1 (Length: 102 km) , Distance to epicenter: 39 km
BAKHTEGAN_F (Length: 94 km) , Distance to epicenter: 46 km
Number of Phases 9
RMS 0.9
Number of Stations 8
Error in Latitude >5 km
Error in Longitude 0 km
Error in Depth 21 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
153705IIEES SCGHIRZ 4612020-05-09 03:09:012020-05-09 12:48:00n
153706IIEES SCLMD1Z 77012020-05-09 03:08:582020-05-09 12:48:00n
153707IIEES SCKRBRZ 13012020-05-09 03:09:402020-05-09 12:48:00n
153708IIEES SCKLNJZ 4412020-05-09 03:09:582020-05-09 12:48:00n
153709IIEES SCYZKHZ 1212020-05-09 03:10:292020-05-09 12:48:00n
153710IIEES SCNASNZ 5.712020-05-09 03:10:332020-05-09 12:48:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCGHIRN IS I2020-05-09 03:08:472.3y122264
IIEES SCGHIRZ IP I2020-05-09 03:08:290.4y122264
IIEES SCLMD1N IS I2020-05-09 03:08:54-0.1y166222
IIEES SCLMD1Z IP I2020-05-09 03:08:34-0.6y166222
IIEES SCBNDSZ IP I2020-05-09 03:09:0421.2n4222121
IIEES SCKRBRZ IP I2020-05-09 03:08:540.4y30054
IIEES SCKLNJZ IP I2020-05-09 03:09:02-1.8y389318
IIEES SCYZKHZ IP I2020-05-09 03:09:10-0.9y4444
IIEES SCNASNZ IP I2020-05-09 03:09:190.1y511344
