Map Title

Magnitude
:3.8
Date & Time (UTC) 2020-05-09 22:21:24.0
Date & Time (Local) 99/2/21  02:51:24.0

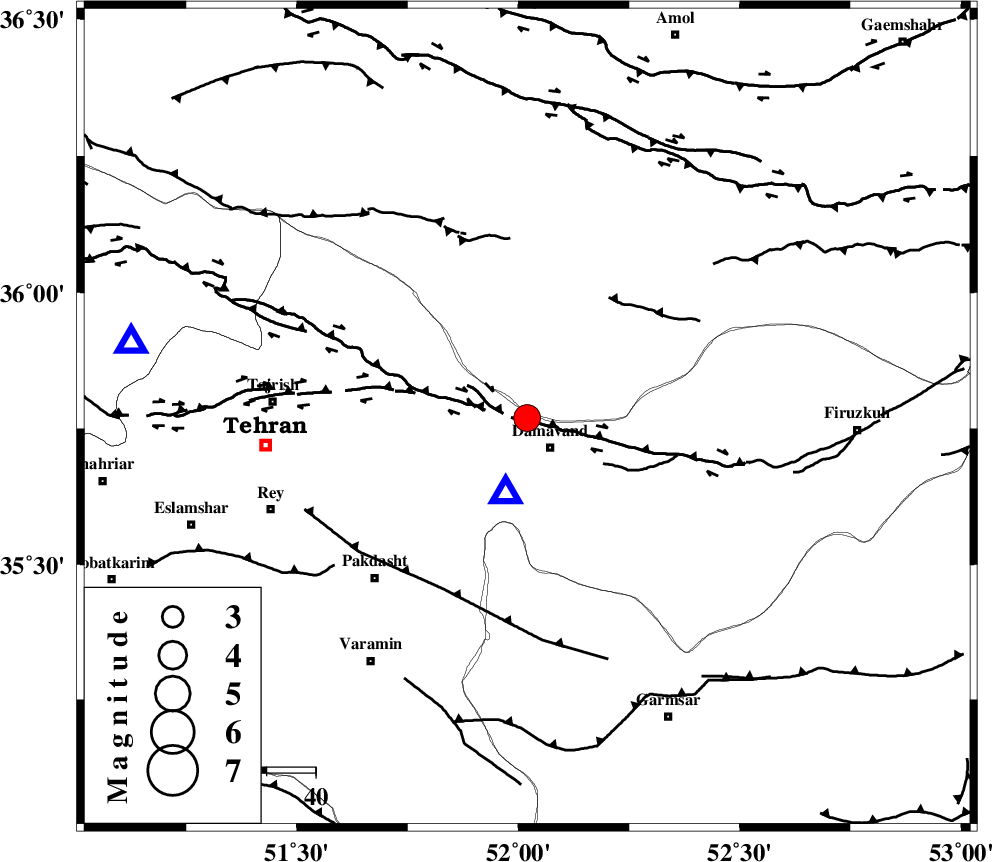

Location Lat:35.77 Lon: 52.02
Region Tehran Province, 8 km of Damavand
Nearest Cities
1 km North of Abali, Tehran Province
8 km North of Damavand, Tehran Province
13 km North of Ab sard, Tehran Province
14 km North East of Rudehen, Tehran Province
14 km North East of Bumehen, Tehran Province
Depth 12 km
Agency
Faults within 150 km:
MOSHA_F (Length: 234 km) , Distance to epicenter: 3 km
N_TEHRAN_F4 (Length: 115 km) , Distance to epicenter: 22 km
EYVANEKEY_F (Length: 74 km) , Distance to epicenter: 39 km
Number of Phases 24
RMS 0.3
Number of Stations 22
Error in Latitude >1 km
Error in Longitude 0 km
Error in Depth 1 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
153726IIEES SCCHTHZ 190012020-05-09 22:21:482020-05-11 11:39:00n
153727IIEES SCTHKVZ 390012020-05-09 22:21:572020-05-11 11:39:00n
153728IIEES SCGHVRZ 140012020-05-09 22:22:302020-05-11 11:39:00n
153729IIEES SCANJZ 32012020-05-09 22:22:342020-05-11 11:39:00n
153730IIEES SCQABGZ 17012020-05-09 22:22:292020-05-11 11:39:00n
153731IIEES SCGIDEZ 130012020-05-09 22:22:402020-05-11 11:39:00n
153732IIEES SCKHMZZ 27012020-05-09 22:22:502020-05-11 11:39:00n
153733IIEES SCZNJKZ 5912020-05-09 22:23:162020-05-11 11:39:00n
153734IIEES SCSHROZ 2.512020-05-09 22:24:252020-05-11 11:39:00n
153735IIEES SCMRVTZ 5412020-05-09 22:23:382020-05-11 11:39:00n
153736IIEES SCYZKHZ 5812020-05-09 22:23:422020-05-11 11:39:00n
153737IIEES SCGRMIZ 2912020-05-09 22:23:012020-05-11 11:39:00n
153738IIEES SCSBZVZ 2912020-05-09 22:24:002020-05-11 11:39:00n
153739IIEES SCAKLZ 5.612020-05-09 22:24:272020-05-11 11:39:00n
153740IIEES SCAKLZ 4.70.482020-05-09 22:23:122020-05-11 11:39:00n
153741IIEES SCTBJMZ 1212020-05-09 22:25:262020-05-11 11:39:00n
153742IIEES SCTBJMZ 6.71.052020-05-09 22:23:062020-05-11 11:39:00n
153743IIEES SCBSRNZ 5.912020-05-09 22:25:262020-05-11 11:39:00n
153744IIEES SCBSRNZ 8.50.642020-05-09 22:23:092020-05-11 11:39:00n
153745IIEES SCSHRTZ 7.812020-05-09 22:25:342020-05-11 11:39:00n
153746IIEES SCSHRTZ 5.90.572020-05-09 22:23:152020-05-11 11:39:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCDAMVZ IP I2020-05-09 22:21:270.1y11195
IIEES SCCHTHN IS I2020-05-09 22:21:48-0.9y77281
IIEES SCCHTHZ IP I2020-05-09 22:21:38-0.3y77281
IIEES SCTHKVN IS I2020-05-09 22:21:550.1y100279
IIEES SCTHKVZ IP I2020-05-09 22:21:420.2y100279
IIEES SCGHVRZ IP I2020-05-09 22:21:500.3y155206
IIEES SCANJZ IP I2020-05-09 22:21:52-0.1y177101
IIEES SCGLOZ IP I2020-05-09 22:21:540.6n417764
IIEES SCQABGZ IP I2020-05-09 22:21:59-0.4y222268
IIEES SCGIDEN IS I2020-05-09 22:22:280.7y233304
IIEES SCGIDEZ IP I2020-05-09 22:22:021.7y233304
IIEES SCKHMZZ IP I2020-05-09 22:22:080.1y289220
IIEES SCZNJKZ IP I2020-05-09 22:22:110.3y311288
IIEES SCNASNZ IP I2020-05-09 22:22:140.2y333168
IIEES SCSHROZ IP I2020-05-09 22:22:16-0.1y36686
IIEES SCMRVTZ IP I2020-05-09 22:22:240.1y42260
IIEES SCYZKHZ IP I2020-05-09 22:22:27-0.3y444148
IIEES SCGRMIZ IP I2020-05-09 22:22:340.5y500313
IIEES SCSBZVZ IP I2020-05-09 22:22:350.1y51182
IIEES SCAKLZ IP I2020-05-09 22:22:480.1y61181
IIEES SCTBJMZ IP I2020-05-09 22:23:05-0.6y75694
IIEES SCBSRNZ IP I2020-05-09 22:23:08-0.4y778123
IIEES SCSHRTZ IP I2020-05-09 22:23:10-0.5y789107
IIEES SCAKLZ IVmB_BB 2020-05-09 22:23:12y161181
