Magnitude
 :3.9
Date & Time (UTC) 2020-05-10 07:56:24.7
Date & Time (Local) 99/2/21  12:26:24.7

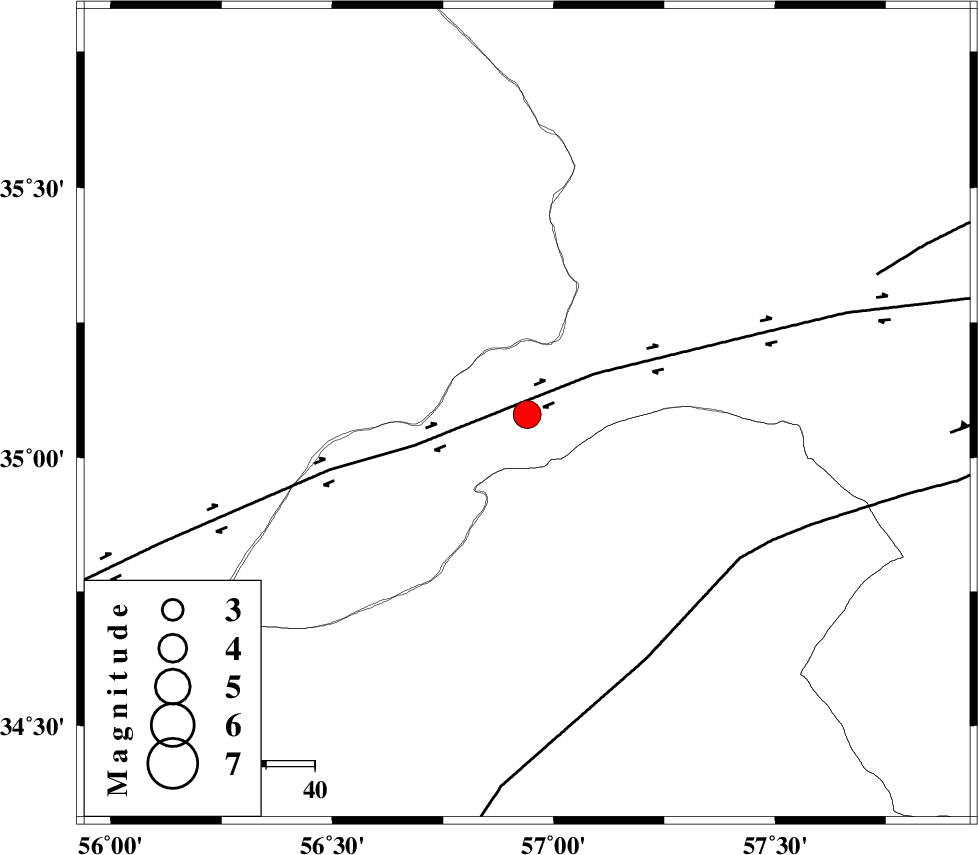

Location Lat:35.08 Lon: 56.94
Region Khorasan(center) Province, 94 km South-West of Bardeskan
Nearest Cities
33 km North West of Tappeh taq, Yazd Province
59 km South East of Zamanabad, Semnan Province
80 km North of Eshqabad, Yazd Province
90 km West of Shahrabad, Khorasan(center) Province
94 km South West of Bardeskan, Khorasan(center) Province
Depth 12 km
Agency
Faults within 150 km:
DORUNEH_F (Length: 713 km) , Distance to epicenter: 16 km
NAINI_F (Length: 342 km) , Distance to epicenter: 53 km
BIJVARD_F (Length: 83 km) , Distance to epicenter: 77 km
Number of Phases 16
RMS 0.5
Number of Stations 15
Error in Latitude >1 km
Error in Longitude 0 km
Error in Depth 8 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
153747IIEES SCSHROZ 2.112020-05-10 07:57:382020-05-11 09:38:00n
153748IIEES SCSBZVZ 53012020-05-10 07:57:212020-05-11 09:38:00n
153749IIEES SCTABSZ 130012020-05-10 07:57:182020-05-11 09:38:00n
153750IIEES SCAKLZ 13012020-05-10 07:57:412020-05-11 09:38:00n
153751IIEES SCANJZ 7412020-05-10 07:57:422020-05-11 09:38:00n
153752IIEES SCBJRDZ 5012020-05-10 07:57:532020-05-11 09:38:00n
153753IIEES SCMRVTZ 9312020-05-10 07:57:572020-05-11 09:38:00n
153754IIEES SCTBJMZ 65012020-05-10 07:58:022020-05-11 09:38:00n
153755IIEES SCSHRTZ 17012020-05-10 07:58:182020-05-11 09:38:00n
153756IIEES SCYZKHZ 22012020-05-10 07:58:172020-05-11 09:38:00n
153757IIEES SCBSRNZ 12012020-05-10 07:58:292020-05-11 09:38:00n
153758IIEES SCDAMVZ 5512020-05-10 07:58:492020-05-11 09:38:00n
153759IIEES SCGHVRZ 69012020-05-10 07:59:162020-05-11 09:38:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCSHROZ IP I2020-05-10 07:56:45-0.9y133321
IIEES SCSBZVN IS I2020-05-10 07:57:09-0.3y15523
IIEES SCSBZVZ IP I2020-05-10 07:56:500.1y15523
IIEES SCTABSN IS I2020-05-10 07:57:10-0.5y155174
IIEES SCTABSZ IP I2020-05-10 07:56:510.8y155174
IIEES SCAKLZ IP I2020-05-10 07:57:020.9y23344
IIEES SCANJZ IP I2020-05-10 07:57:070.5y278279
IIEES SCBJRDZ IP I2020-05-10 07:57:090.6y2898
IIEES SCMRVTZ IP I2020-05-10 07:57:090.1y300345
IIEES SCTBJMZ IP I2020-05-10 07:57:11-0.1y31186
IIEES SCSHRTZ IP I2020-05-10 07:57:15-0.1y344117
IIEES SCYZKHZ IP I2020-05-10 07:57:190.4y366216
IIEES SCBSRNZ IP I2020-05-10 07:57:21-0.9y400150
IIEES SCDAMVZ IP I2020-05-10 07:57:29-0.5y455278
IIEES SCNASNZ IP I2020-05-10 07:57:366.4n4455236
IIEES SCGHVRZ IP I2020-05-10 07:57:380.3y522263
