Magnitude
:4.5
Date & Time (UTC) 2020-05-18 17:24:25.8
Date & Time (Local) 99/2/29  21:54:25.8

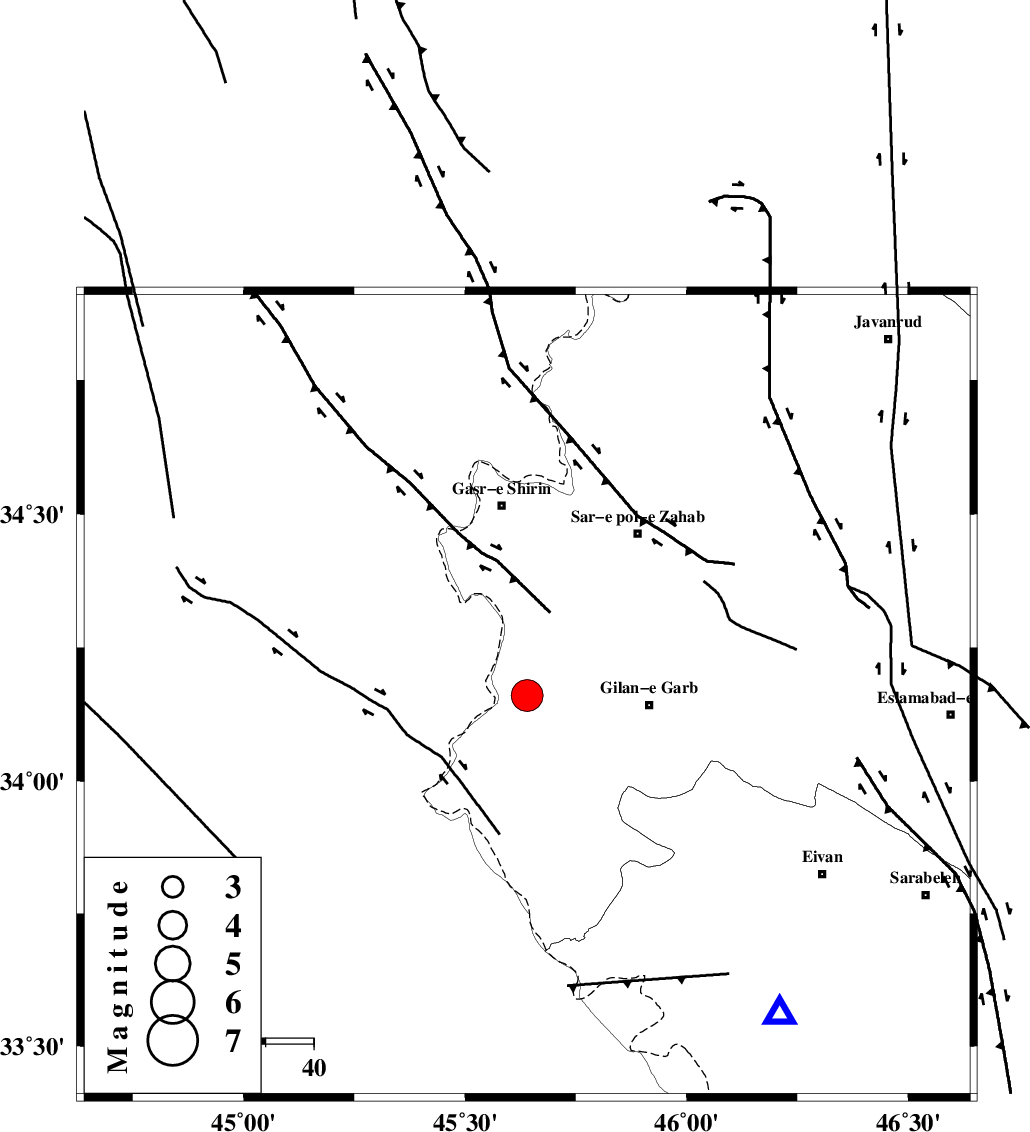

Location Lat:34.16 Lon: 45.64
Region Kermanshah Province, 25 km -West of Gilan-E-Gharb
Nearest Cities
25 km North West of Gilan-E-Gharb, Kermanshah Province
27 km South West of Chub baghan, Kermanshah Province
31 km South East of Khosravi, Kermanshah Province
31 km North of Sumar, Kermanshah Province
32 km South of Seyyed sohrab, Kermanshah Province
Depth 10 km
Agency
Faults within 150 km:
ZFF4 (Length: 128 km) , Distance to epicenter: 29 km
MFF7 (Length: 99 km) , Distance to epicenter: 35 km
MFF8 (Length: 48 km) , Distance to epicenter: 42 km
Number of Phases 21
RMS 0.7
Number of Stations 22
Error in Latitude >2 km
Error in Longitude 0 km
Error in Depth 0 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
153899IIEES SCILBAZ 350012020-05-18 17:24:522020-05-18 10:34:00n
153900IIEES SCSNGEZ 520012020-05-18 17:25:202020-05-18 10:34:00n
153901IIEES SCSRSLZ 250012020-05-18 17:25:302020-05-18 10:34:00n
153902IIEES SCMAHBZ 200012020-05-18 17:25:482020-05-18 10:34:00n
153903IIEES SCNSR4Z 1100012020-05-18 17:26:052020-05-18 10:34:00n
153904IIEES SCGTMRZ 62012020-05-18 17:26:252020-05-18 10:34:00n
153905IIEES SCAZRZ 470012020-05-18 17:26:252020-05-18 10:34:00n
153906IIEES SCZNJKZ 6512020-05-18 17:26:482020-05-18 10:34:00n
153907IIEES SCQABGZ 5712020-05-18 17:26:262020-05-18 10:34:00n
153908IIEES SCKHMZZ 28012020-05-18 17:26:112020-05-18 10:34:00n
153909IIEES SCASAOZ 23012020-05-18 17:26:262020-05-18 10:34:00n
153910IIEES SCAMISZ 50012020-05-18 17:26:182020-05-18 10:34:00n
153911IIEES SCBSR2Z 75012020-05-18 17:26:222020-05-18 10:34:00n
153912IIEES SCGHVRZ 63012020-05-18 17:26:452020-05-18 10:34:00n
153913IIEES SCGRMIZ 7812020-05-18 17:27:102020-05-18 10:34:00n
153914IIEES SCNASNZ 4712020-05-18 17:27:382020-05-18 10:34:00n
153915IIEES SCGLOZ 8812020-05-18 17:27:522020-05-18 10:34:00n
153916IIEES SCAHRMZ 3212020-05-18 17:27:332020-05-18 10:34:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCILBAN IS I2020-05-18 17:24:50-0.1y77139
IIEES SCILBAZ IP I2020-05-18 17:24:38-1.3y77139
IIEES SCSNGEN IS I2020-05-18 17:25:170.1y18956
IIEES SCSNGEZ IP I2020-05-18 17:24:53-1.6y18956
IIEES SCSRSLZ IP I2020-05-18 17:24:59-0.5y233355
IIEES SCMAHBZ IP I2020-05-18 17:25:070y2891
IIEES SCNSR4Z IP I2020-05-18 17:25:090.8y300170
IIEES SCGTMRZ IP I2020-05-18 17:25:180.4y378119
IIEES SCAZRZ IP I2020-05-18 17:25:200.1y3894
IIEES SCZNJKZ IP I2020-05-18 17:25:210.5y38944
IIEES SCQABGZ IP I2020-05-18 17:25:21-0.3y40063
IIEES SCKHMZZ IP I2020-05-18 17:25:21-0.4y40096
IIEES SCASAOZ IP I2020-05-18 17:25:230.6y40083
IIEES SCAMISZ IP I2020-05-18 17:25:26-0.1y444128
IIEES SCBSR2Z IP I2020-05-18 17:25:300.7y467156
IIEES SCGHVRZ IP I2020-05-18 17:25:371.2y52285
IIEES SCGRMIZ IP I2020-05-18 17:25:40-0.4y55621
IIEES SCNASNZ IP I2020-05-18 17:25:56-0.4y678101
IIEES SCGLOZ IP I2020-05-18 17:26:111.4y78968
IIEES SCAHRMZ IP I2020-05-18 17:26:09-0.6y800136
IIEES SCSRVNZ IP I2020-05-18 17:28:09-0.3y1768111
