Date & Time (UTC) 2020-05-19 04:32:08.3
Date & Time (Local) 99/2/30  09:02:08.3

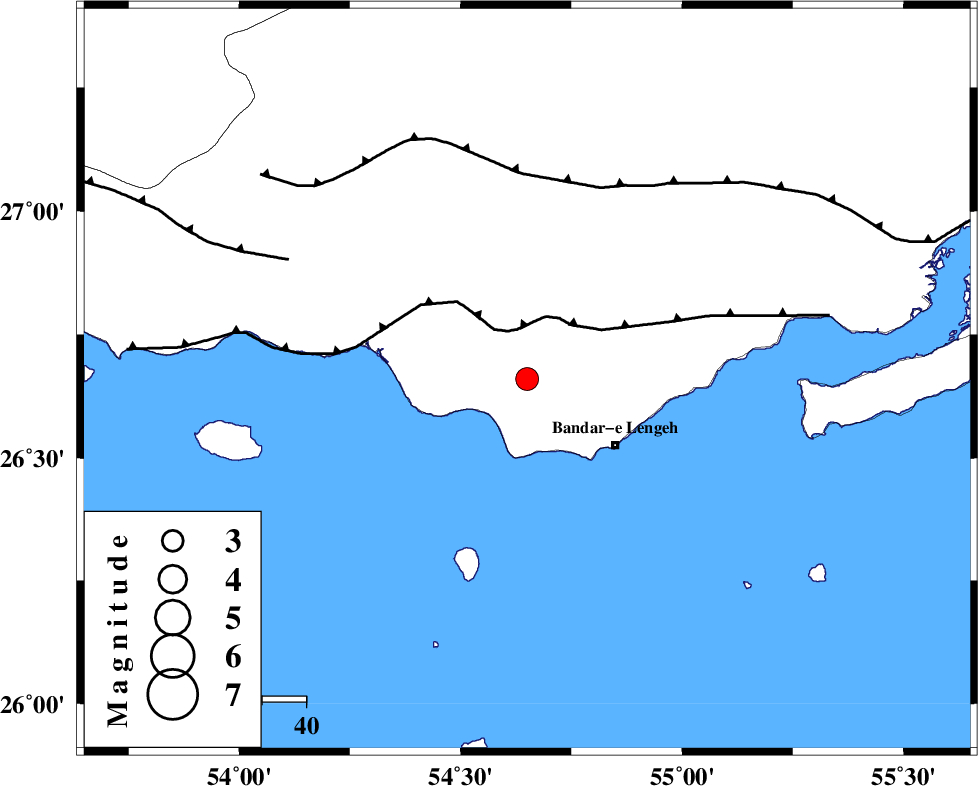

Location Lat:26.66 Lon: 54.65
Region Hormozgan Province, 25 km North-West of Bandar-e lengeh
Nearest Cities
25 km North West of Bandar-e lengeh, Hormozgan Province
54 km South East of Jenah, Hormozgan Province
66 km South East of Bastak, Hormozgan Province
96 km North West of Abu Musa, Hormozgan Province
99 km South West of Bandar-e khamir, Hormozgan Province
Depth 10 km
Faults within 150 km:
ZFF1 (Length: 165 km) , Distance to epicenter: 11 km
MFF1 (Length: 180 km) , Distance to epicenter: 46 km
MFF3 (Length: 292 km) , Distance to epicenter: 60 km
Number of Phases 9
RMS 0.7
Number of Stations 7
Error in Latitude >4 km
Error in Longitude 0 km
Error in Depth 22 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
153935IIEES SCLMD1Z 100012020-05-19 04:32:592020-05-19 10:59:00n
153936IIEES SCBNDSZ 30012020-05-19 04:33:192020-05-19 10:59:00n
153937IIEES SCGHIRZ 2912020-05-19 04:34:012020-05-19 10:59:00n
153938IIEES SCAHRMZ 1312020-05-19 04:34:322020-05-19 10:59:00n
153939IIEES SCKRBRZ 3012020-05-19 04:34:362020-05-19 10:59:00n
153940IIEES SCZHSFZ 3.812020-05-19 04:35:152020-05-19 10:59:00n
153941IIEES SCZHSFZ 5.30.82020-05-19 04:34:042020-05-19 10:59:00n
153942IIEES SCBSRNZ 4.612020-05-19 04:36:022020-05-19 10:59:00n
153943IIEES SCBSRNZ 4.10.942020-05-19 04:34:042020-05-19 10:59:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCLMD1N IS I2020-05-19 04:32:54-1.8n4166297
IIEES SCLMD1Z IP I2020-05-19 04:32:35-0.7y166297
IIEES SCBNDSZ IP I2020-05-19 04:32:360.3y16661
IIEES SCGHIRZ IP I2020-05-19 04:32:470.4y244318
IIEES SCAHRMZ IP I2020-05-19 04:33:080.9y411306
IIEES SCKRBRZ IP I2020-05-19 04:33:08-0.8y42229
IIEES SCZHSFZ IP I2020-05-19 04:33:40-1.4y68961
IIEES SCBSRNZ IP I2020-05-19 04:33:480.8y73336
IIEES SCSRVNZ IP I2020-05-19 04:33:553.1n477884
