Magnitude
:4.1
Date & Time (UTC) 2020-10-14 11:06:19.0
Date & Time (Local) 99/7/23  14:36:19.0

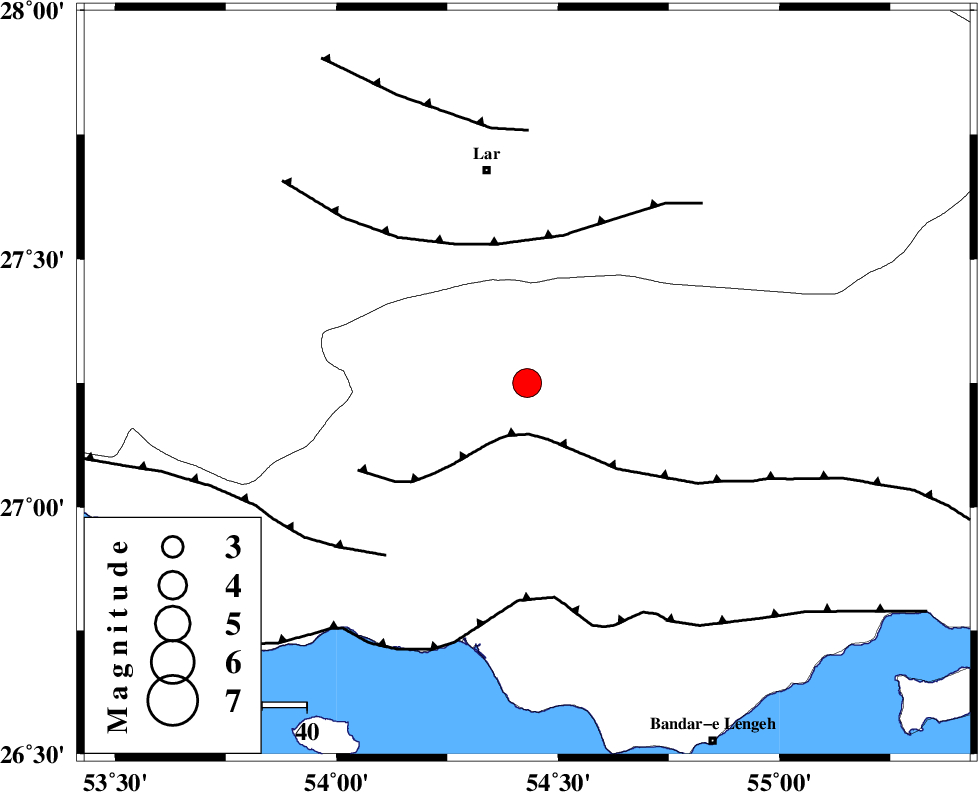

Location Lat:27.25 Lon: 54.43
Region Hormozgan Province, 9 km of Bastak
Nearest Cities
9 km North of Bastak, Hormozgan Province
30 km North East of Jenah, Hormozgan Province
48 km South East of Bagh, Fars Province
49 km South of Lar, Fars Province
50 km South of Latifi, Fars Province
Depth 20 km
Agency
Faults within 150 km:
MFF1 (Length: 180 km) , Distance to epicenter: 11 km
LAR_F (Length: 99 km) , Distance to epicenter: 32 km
ZFF1 (Length: 165 km) , Distance to epicenter: 49 km
Number of Phases 24
RMS 0.7
Number of Stations 24
Error in Latitude >3 km
Error in Longitude 0 km
Error in Depth 0 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
158377IIEES SCBNDSZ 180012020-10-14 11:07:102020-10-14 03:08:00n
158378IIEES SCJSSHZ 31012020-10-14 11:08:172020-10-14 03:08:00n
158379IIEES SCYZKHZ 5012020-10-14 11:09:212020-10-14 03:08:00n
158380IIEES SCCHBRZ 4012020-10-14 11:07:512020-10-14 03:08:00n
158381IIEES SCBSRNZ 3312020-10-14 11:10:002020-10-14 03:08:00n
158382IIEES SCAMISZ 10012020-10-14 11:09:082020-10-14 03:08:00n
158383IIEES SCTABSZ 2912020-10-14 11:10:192020-10-14 03:08:00n
158384IIEES SCGTMRZ 7412020-10-14 11:09:212020-10-14 03:08:00n
158385IIEES SCSRVNZ 1112020-10-14 11:08:122020-10-14 03:08:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCBNDSZ IP I2020-10-14 11:06:44-0.9y17784
IIEES SCUOSSZ IP I2020-10-14 11:07:030.8y311145
IIEES SCJSSHZ IP I2020-10-14 11:07:050.5y333116
IIEES SCKLNJZ IP I2020-10-14 11:07:260.1y500327
IIEES SCYZKHZ IP I2020-10-14 11:07:350.6y5672
IIEES SCCHBRZ IP I2020-10-14 11:07:41-1.1y633106
IIEES SCBSRNZ IP I2020-10-14 11:07:49-0.4y68940
IIEES SCAMISZ IP I2020-10-14 11:07:510.5y700316
IIEES SCTABSZ IP I2020-10-14 11:07:570.1y75619
IIEES SCGTMRZ IP I2020-10-14 11:07:58-1.2y778320
IIEES SCSRVNZ IP I2020-10-14 11:08:01-0.2y78987
IIEES SCSHRTZ IP I2020-10-14 11:08:160.6y90037
IIEES SCASAOZ IP I2020-10-14 11:08:16-0.5y911334
IIEES SCDAMVZ IP I2020-10-14 11:08:220y956346
IIEES SCSHROZ IP I2020-10-14 11:08:25-0.5y9788
IIEES SCRAYNZ IP I2020-10-14 11:08:260.4y989247
IIEES SCCHTHZ IP I2020-10-14 11:08:28-0.3y1011343
IIEES SCGLOZ IP I2020-10-14 11:08:321.5y1023357
IIEES SCQABGZ IP I2020-10-14 11:08:32-0.4y1045335
IIEES SCABGHZ IP I2020-10-14 11:08:351.7y10562
IIEES SCILBAZ IP I2020-10-14 11:08:350.2y1056314
IIEES SCSNGEZ IP I2020-10-14 11:08:38-1.3y1100324
IIEES SCBJRDN IP I2020-10-14 11:08:51-0.2y118913
IIEES SCSRSLN IP I2020-10-14 11:09:05-0.2y1312322
