Date & Time (UTC) 2021-12-23 15:47:23.6
Date & Time (Local) 1400/10/2  19:17:23.6

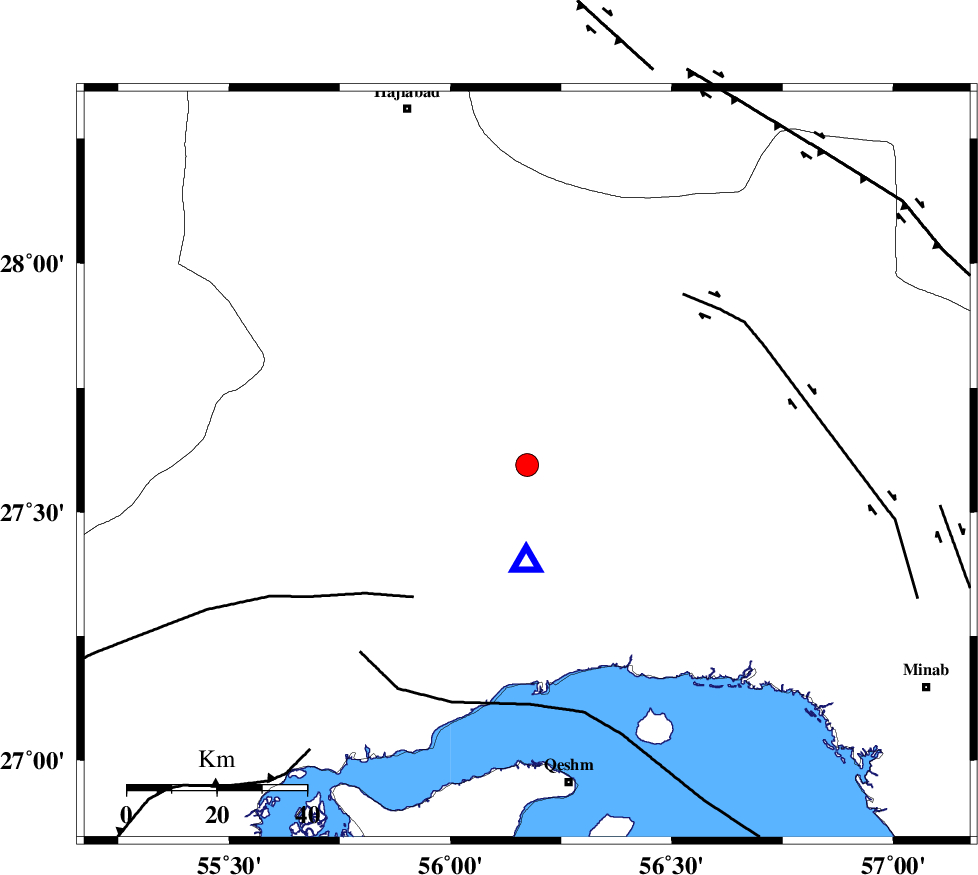

Location Lat:27.595 Lon: 56.173
Region Hormozgan Province, 47 km North-West of Bandar-e abbas
Nearest Cities
27 km East of Fin, Hormozgan Province
47 km North West of Bandar-e abbas, Hormozgan Province
47 km South of Fareqan, Hormozgan Province
72 km North of Qeshm, Hormozgan Province
80 km South East of Darz, Fars Province
Depth 12 km
Faults within 150 km:
HZF2 (Length: 437 km) , Distance to epicenter: 28 km
MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 69 km
MFF1 (Length: 180 km) , Distance to epicenter: 74 km
Number of Phases 6
RMS 0.6
Number of Stations 6
Error in Latitude >4.4 km
Error in Longitude 4.4 km
Error in Depth 4.6 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
167616IIEES SCBNDSZ 2012021-12-23 15:47:272021-12-25 07:22:00n
167617IIEES SCJSSHZ 0.112021-12-23 15:47:592021-12-25 07:22:00n
167618IIEES SCKRBRZ 0.212021-12-23 15:48:042021-12-25 07:22:00n
167619IIEES SCBSRNZ 0.312021-12-23 15:48:422021-12-25 07:22:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCBNDSZ EPg E2021-12-23 15:47:27-0.6y022180
IIEES SCJSSHZ EPn E2021-12-23 15:47:590.4y0222147
IIEES SCKRBRZ EPn E2021-12-23 15:48:04-0.5y027112
IIEES SCGHIRZ EPn E2021-12-23 15:48:120.9y0323284
IIEES SCYZKHZ EPn E2021-12-23 15:48:39-0.6y0553344
IIEES SCBSRNZ EPn E2021-12-23 15:48:420.7y056231
