Date & Time (UTC) 2021-12-24 21:39:37.3
Date & Time (Local) 1400/10/4  01:09:37.3

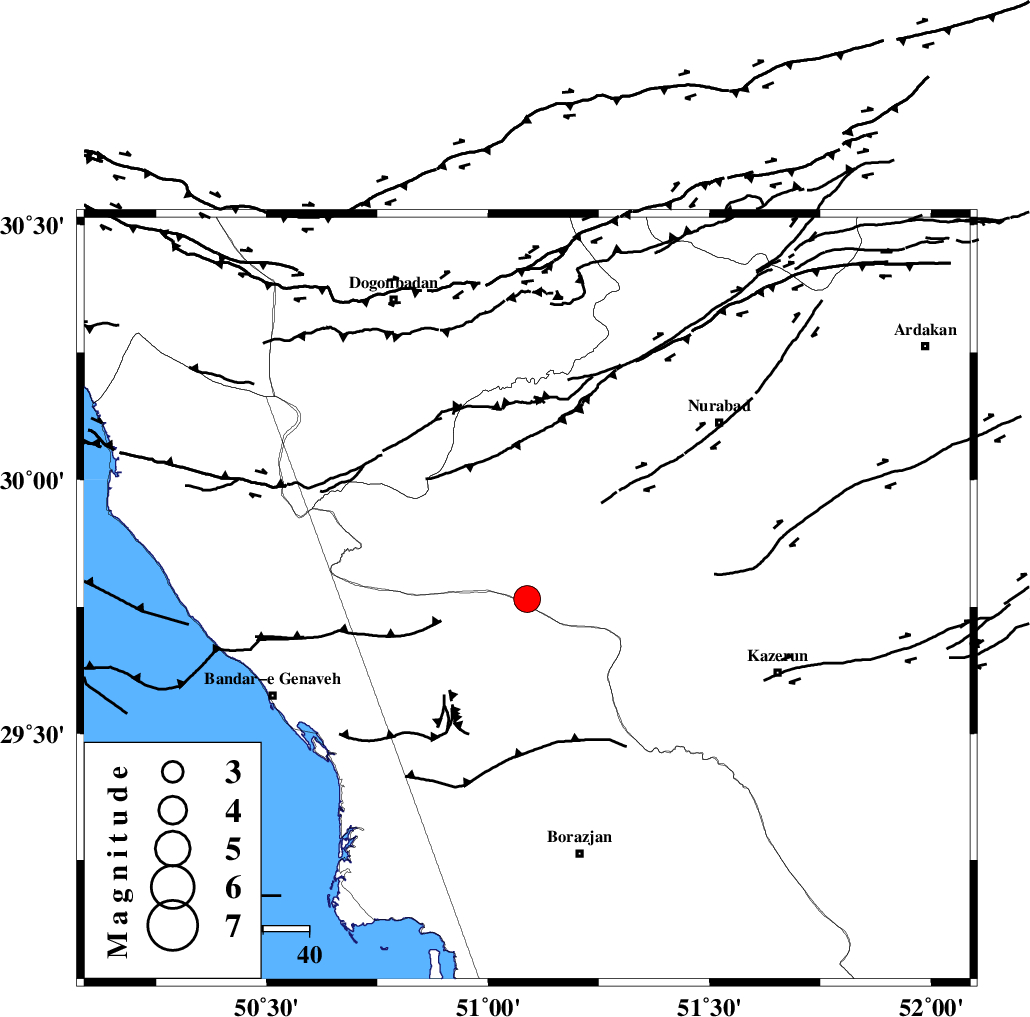

Location Lat:29.765 Lon: 51.088
Region Fars Province, 57 km North-West of Borazjan
Nearest Cities
33 km North West of Khesht, Fars Province
34 km North of Dehkohneh, Bushehr Province
35 km South West of Babamonir, Fars Province
38 km North East of Chehar rustaee, Bushehr Province
40 km North West of Kamaraj, Fars Province
Depth 12 km
Faults within 150 km:
ZFF3 (Length: 125 km) , Distance to epicenter: 27 km
BORAZJAN_F (Length: 168 km) , Distance to epicenter: 29 km
KAZERUN_F (Length: 96 km) , Distance to epicenter: 43 km
Number of Phases 16
RMS 0.5
Number of Stations 16
Error in Latitude >2.3 km
Error in Longitude 2.3 km
Error in Depth 19.5 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
167659IIEES SCKLNJZ 512021-12-24 21:40:022021-12-25 11:03:00n
167660IIEES SCGTMRZ 0.512021-12-24 21:40:292021-12-25 11:03:00n
167661IIEES SCYZKHZ 0.112021-12-24 21:40:412021-12-25 11:03:00n
167662IIEES SCKHMZZ 0.112021-12-24 21:40:422021-12-25 11:03:00n
167663IIEES SCGHVRZ 0.112021-12-24 21:40:502021-12-25 11:03:00n
167664IIEES SCASAOZ 0.112021-12-24 21:40:532021-12-25 11:03:00n
167665IIEES SCKRBRZ 0.112021-12-24 21:40:522021-12-25 11:03:00n
167666IIEES SCILBAZ 0.0612021-12-24 21:41:032021-12-25 11:03:00n
167667IIEES SCSNGEZ 0.0312021-12-24 21:41:102021-12-25 11:03:00n
167668IIEES SCBSRNZ 0.0212021-12-24 21:41:252021-12-25 11:03:00n
167669IIEES SCSHROZ 0.0312021-12-24 21:41:272021-12-25 11:03:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCKLNJZ EPg E2021-12-24 21:40:020.3y014619
IIEES SCGHIRZ EPn E2021-12-24 21:40:14-1.1y0247132
IIEES SCLMD1Z EPn E2021-12-24 21:40:270.3y0337143
IIEES SCGTMRZ EPn E2021-12-24 21:40:290.7y0354328
IIEES SCNASNZ EPn E2021-12-24 21:40:320.5y037426
IIEES SCYZKHZ EPn E2021-12-24 21:40:410.6y044349
IIEES SCKHMZZ EPn E2021-12-24 21:40:420.9y0453346
IIEES SCGHVRZ EPn E2021-12-24 21:40:500.2y05232
IIEES SCASAOZ EPn E2021-12-24 21:40:530.7y0540349
IIEES SCKRBRZ EPn E2021-12-24 21:40:52-0.8y054887
IIEES SCILBAZ EPn E2021-12-24 21:41:03-0.3y0630313
IIEES SCSNGEZ EPn E2021-12-24 21:41:10-0.5y0688329
IIEES SCTABSZ EPn E2021-12-24 21:41:13-0.6y071653
IIEES SCGLOZ EPn E2021-12-24 21:41:240.7y079019
IIEES SCBSRNZ EPn E2021-12-24 21:41:25-0.4y080672
IIEES SCSHROZ EPn E2021-12-24 21:41:27-0.8y083234
