Date & Time (UTC) 2021-12-27 07:58:44.4
Date & Time (Local) 1400/10/6  11:28:44.4
Location Lat:34.548 Lon: 59.437
Region Khorasan(center) Province, 64 km -West of Khaf
Nearest Cities
27 km South East of Jangal, Khorasan(center) Province
45 km North East of Bimorgh, Khorasan(center) Province
45 km North West of Qasemabad, Khorasan(center) Province
46 km North West of Zuzan, Khorasan(center) Province
46 km South West of Chamanabad, Khorasan(center) Province
Depth 12 km

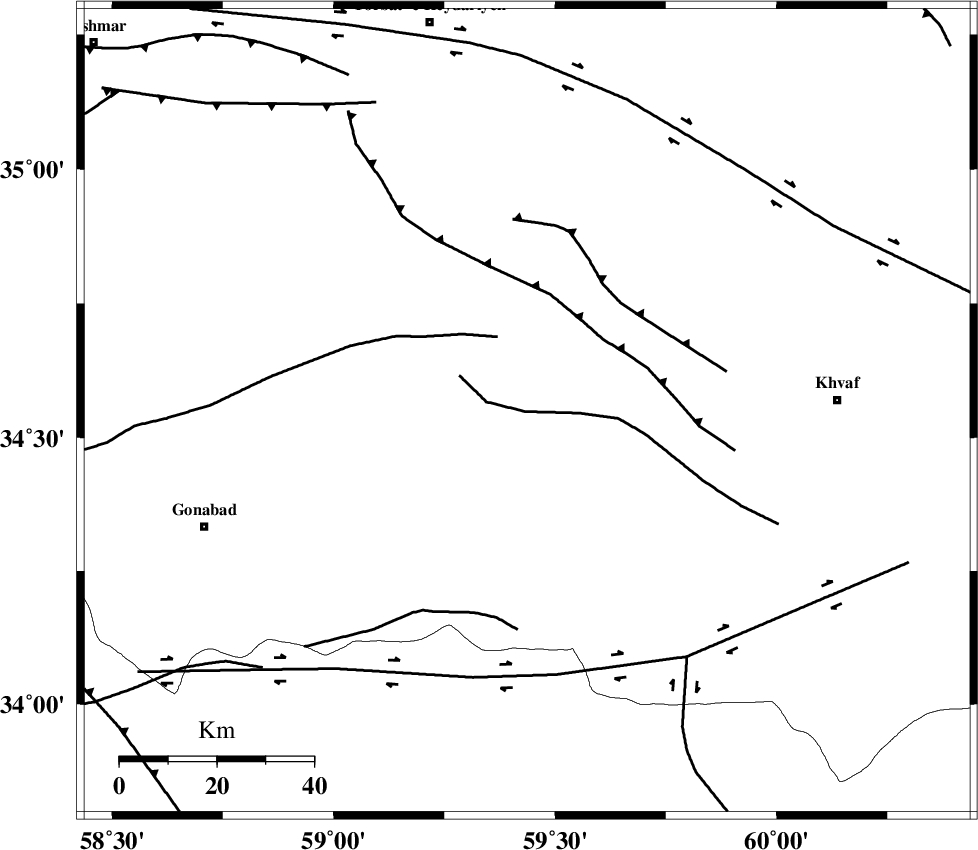

Faults within 150 km:
JANGAL_F (Length: 111 km) , Distance to epicenter: 22 km
KHAF_F (Length: 58 km) , Distance to epicenter: 30 km
DASHT_E_BAYAZ_F (Length: 177 km) , Distance to epicenter: 55 km
Number of Phases 8
RMS 0.2
Number of Stations 8
Error in Latitude >2.3 km
Error in Longitude 2.3 km
Error in Depth 13.1 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
167712IIEES SCTBJMZ 212021-12-27 07:59:032021-12-27 10:50:00n
167713IIEES SCTABSZ 0.212021-12-27 07:59:212021-12-27 10:50:00n
167714IIEES SCSHROZ 0.0412021-12-27 07:59:362021-12-27 10:50:00n
167715IIEES SCYZKHZ 0.0412021-12-27 07:59:552021-12-27 10:50:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCTBJMZ EPg E2021-12-27 07:59:03-0.3y011446
IIEES SCSHRTZ EPg E2021-12-27 07:59:050.2y0127142
IIEES SCTABSZ EPn E2021-12-27 07:59:21-0.1y0236245
IIEES SCKAGHZ EPn E2021-12-27 07:59:250.1y026910
IIEES SCBSRNZ EPn E2021-12-27 07:59:27-0.6y0288186
IIEES SCSHROZ EPn E2021-12-27 07:59:360.1y0351297
IIEES SCMRVTZ EPn E2021-12-27 07:59:490.2y0458319
IIEES SCYZKHZ EPn E2021-12-27 07:59:55-0.2y0510242
