Date & Time (UTC) 2021-12-30 01:15:31.2
Date & Time (Local) 1400/10/9  04:45:31.2

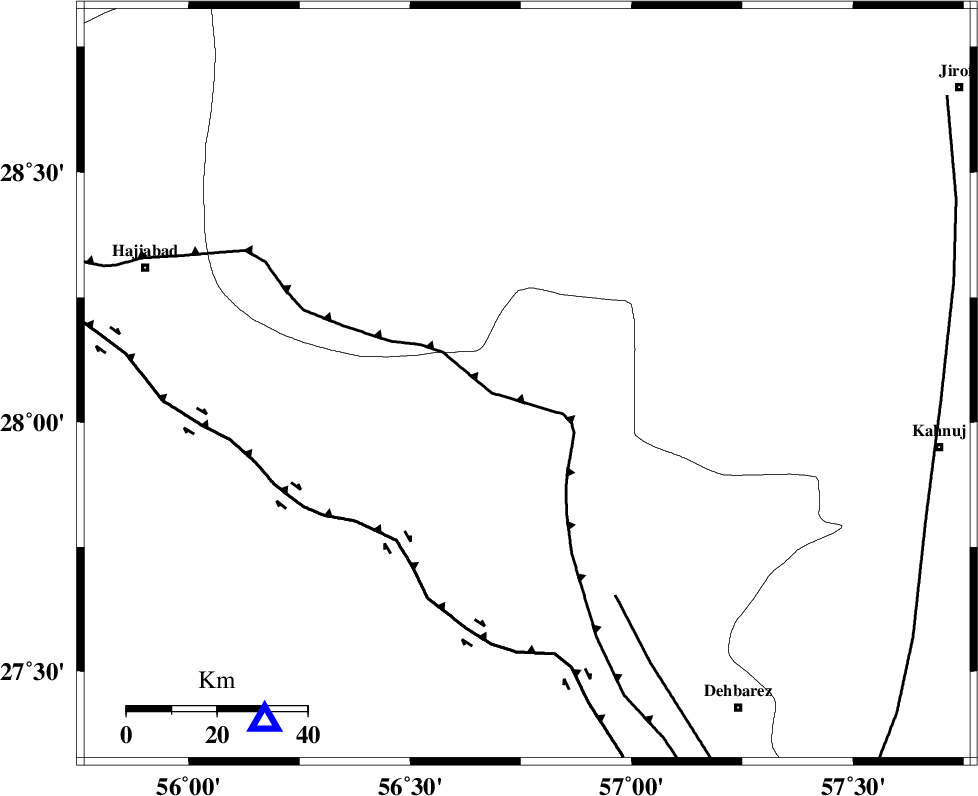

Location Lat:28.076 Lon: 56.764
Region Hormozgan Province, 92 km North-West of Kahnuj
Nearest Cities
32 km South West of Sarkhan, Kerman Province
50 km North West of Faryab, Kerman Province
52 km North East of Fareqan, Hormozgan Province
56 km South West of Hurpasefid, Kerman Province
56 km South East of Shahmaran, Kerman Province
Depth 12 km
Faults within 150 km:
MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 5 km
HZF2 (Length: 437 km) , Distance to epicenter: 45 km
ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 51 km
Number of Phases 18
RMS 0.6
Number of Stations 18
Error in Latitude >1.8 km
Error in Longitude 1.8 km
Error in Depth 8.8 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
167769IIEES SCBNDSZ 412021-12-30 01:15:472022-01-01 05:57:00n
167770IIEES SCKRBRZ 1012021-12-30 01:16:042022-01-01 05:57:00n
167771IIEES SCLMD1Z 0.812021-12-30 01:16:242022-01-01 05:57:00n
167772IIEES SCBSRNZ 0.412021-12-30 01:16:402022-01-01 05:57:00n
167773IIEES SCYZKHZ 0.112021-12-30 01:16:442022-01-01 05:57:00n
167774IIEES SCSRVNZ 0.112021-12-30 01:16:492022-01-01 05:57:00n
167775IIEES SCKLNJZ 0.212021-12-30 01:16:532022-01-01 05:57:00n
167776IIEES SCTABSZ 0.212021-12-30 01:16:562022-01-01 05:57:00n
167777IIEES SCNASNZ 0.0512021-12-30 01:16:592022-01-01 05:57:00n
167778IIEES SCSHRTZ 0.0912021-12-30 01:17:072022-01-01 05:57:00n
167779IIEES SCTBJMZ 0.0412021-12-30 01:17:272022-01-01 05:57:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCBNDSZ EPg E2021-12-30 01:15:470.3y095218
IIEES SCKRBRZ EPn E2021-12-30 01:16:04-0.8y0211360
IIEES SCJSSHZ EPn E2021-12-30 01:16:08-1y0248166
IIEES SCLMD1Z EPn E2021-12-30 01:16:240.2y0364257
IIEES SCGHIRZ EPn E2021-12-30 01:16:260.7y0372274
IIEES SCZHSFZ EPn E2021-12-30 01:16:27-4.7n442666
IIEES SCBSRNZ EPn E2021-12-30 01:16:400.2y048828
IIEES SCYZKHZ EPn E2021-12-30 01:16:440.2y0522336
IIEES SCSRVNZ EPn E2021-12-30 01:16:490.3y056098
IIEES SCKLNJZ EPn E2021-12-30 01:16:53-0.3y0597303
IIEES SCTABSZ EPn E2021-12-30 01:16:560.8y06193
IIEES SCNASNZ EPn E2021-12-30 01:16:59-0.3y0647324
IIEES SCSHRTZ EPn E2021-12-30 01:17:070.7y070429
IIEES SCTBJMZ EPn E2021-12-30 01:17:270.5y086623
IIEES SCGTMRZ EPn E2021-12-30 01:17:27-1.3n4883303
IIEES SCKHMZZ EPn E2021-12-30 01:17:30-0.8y0904314
IIEES SCASAOZ EPn E2021-12-30 01:17:38-0.6y0962318
IIEES SCGLOZ EPn E2021-12-30 01:17:400.1y0974344
