Magnitude
:3.6
Date & Time (UTC) 2021-12-30 18:24:17.7
Date & Time (Local) 1400/10/9  21:54:17.7
Location Lat:30.747 Lon: 56.762
Region Kerman Province, 20 km -East of Zarand
Nearest Cities
4 km North of Khankuk, Kerman Province
11 km of Hatkan, Kerman Province
11 km North East of Bahaabad, Kerman Province
20 km East of Zarand, Kerman Province
21 km West of Hejdak, Kerman Province
Depth 12 km
Agency

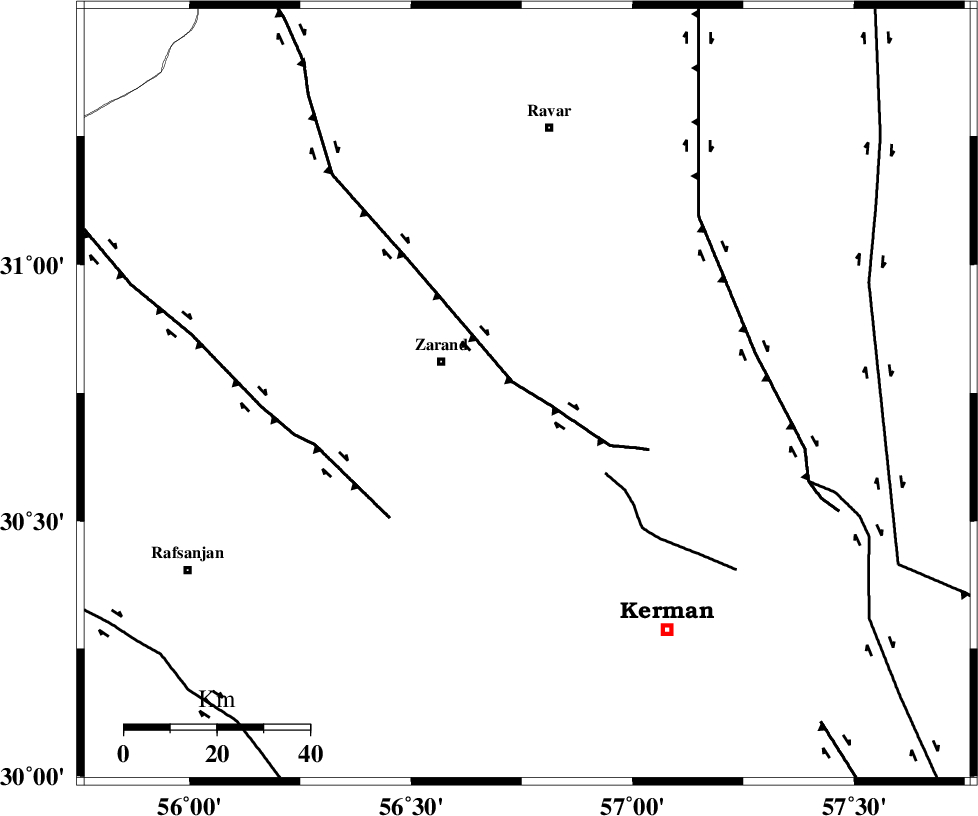

Faults within 150 km:
KUHBANAN_F (Length: 189 km) , Distance to epicenter: 4 km
CHATRUD_F (Length: 37 km) , Distance to epicenter: 24 km
DARIVAN_F (Length: 131 km) , Distance to epicenter: 40 km
Number of Phases 9
RMS 0.4
Number of Stations 9
Error in Latitude >3.5 km
Error in Longitude 3.5 km
Error in Depth 17.2 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
167789IIEES SCKRBRZ 312021-12-30 18:24:322022-01-01 06:36:00n
167790IIEES SCBSRNZ 0.412021-12-30 18:24:572022-01-01 06:36:00n
167791IIEES SCYZKHZ 0.912021-12-30 18:25:002022-01-01 06:36:00n
167792IIEES SCTABSZ 0.412021-12-30 18:25:052022-01-01 06:36:00n
167793IIEES SCNASNZ 0.112021-12-30 18:25:202022-01-01 06:36:00n
167794IIEES SCSHRTZ 0.0612021-12-30 18:25:232022-01-01 06:36:00n
167795IIEES SCKLNJZ 0.0612021-12-30 18:25:282022-01-01 06:36:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCKRBRZ EPg E2021-12-30 18:24:320.2y085180
IIEES SCBSRNZ EPn E2021-12-30 18:24:57-0.7y026259
IIEES SCYZKHZ EPn E2021-12-30 18:25:000.1y0275311
IIEES SCTABSZ EPn E2021-12-30 18:25:05-0.4y03246
IIEES SCZHSFZ EPn E2021-12-30 18:25:12-3.4n4406108
IIEES SCNASNZ EPn E2021-12-30 18:25:200y0438301
IIEES SCGHIRZ EPn E2021-12-30 18:25:21-0.5y0456233
IIEES SCSHRTZ EPn E2021-12-30 18:25:230.4y046346
IIEES SCKLNJZ EPn E2021-12-30 18:25:280.7y0495273
