Date & Time (UTC) 2021-12-28 19:53:15.6
Date & Time (Local) 1400/10/7  23:23:15.6

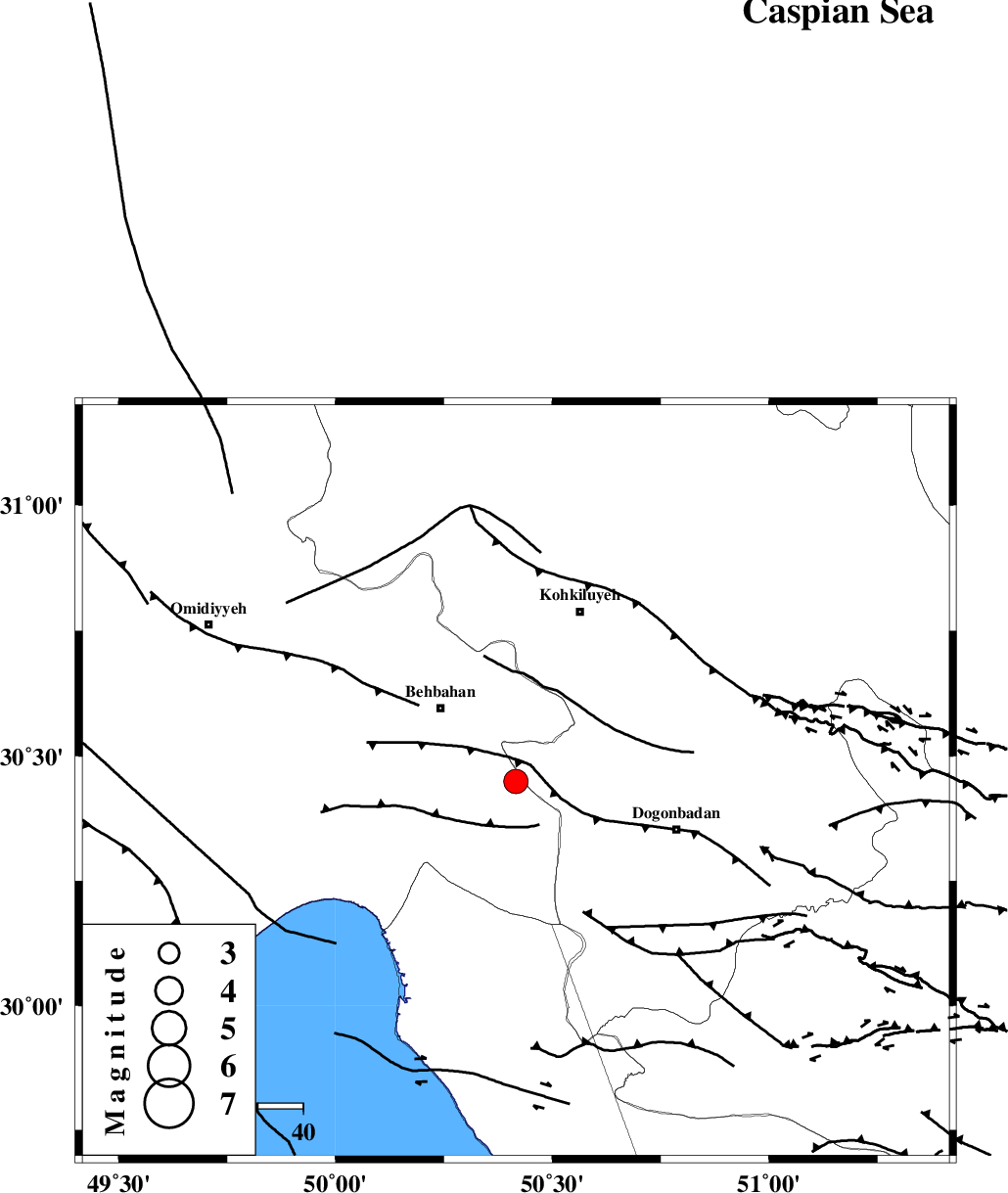

Location Lat:30.449 Lon: 50.416
Region Khoozestan Province, 23 km South-East of Behbahan
Nearest Cities
23 km South East of Mansuriyeh, Khoozestan Province
23 km South East of Behbahan, Khoozestan Province
24 km North East of Sardasht, Khoozestan Province
36 km North East of Darunak, Khoozestan Province
37 km South East of Dodange-ye bozorg, Khoozestan Province
Depth 12 km
Faults within 150 km:
MISHAN_F (Length: 76 km) , Distance to epicenter: 29 km
RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 33 km
ZFF3 (Length: 125 km) , Distance to epicenter: 35 km
Number of Phases 11
RMS 0.5
Number of Stations 11
Error in Latitude >2.4 km
Error in Longitude 2.4 km
Error in Depth 11.7 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
167834IIEES SCKLNJZ 312021-12-28 19:53:372022-01-01 10:34:00n
167835IIEES SCKHRKZ 512021-12-28 19:53:372022-01-01 10:34:00n
167836IIEES SCGTMRZ 0.512021-12-28 19:53:552022-01-01 10:34:00n
167837IIEES SCNASNZ 0.212021-12-28 19:54:072022-01-01 10:34:00n
167838IIEES SCGHIRZ 0.0512021-12-28 19:54:052022-01-01 10:34:00n
167839IIEES SCKHMZZ 0.112021-12-28 19:54:102022-01-01 10:34:00n
167840IIEES SCYZKHZ 0.0912021-12-28 19:54:192022-01-01 10:34:00n
167841IIEES SCGHVRZ 0.212021-12-28 19:54:202022-01-01 10:34:00n
167842IIEES SCASAOZ 0.112021-12-28 19:54:212022-01-01 10:34:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCKLNJZ EPg E2021-12-28 19:53:370.2y012961
IIEES SCKHRKZ EPg E2021-12-28 19:53:37-0.1y0133184
IIEES SCAHRMZ EPg E2021-12-28 19:53:460.3y0189159
IIEES SCGTMRZ EPn E2021-12-28 19:53:55-0.3y0256331
IIEES SCNASNZ EPn E2021-12-28 19:54:070.8y034641
IIEES SCGHIRZ EPn E2021-12-28 19:54:05-0.8y0346134
IIEES SCKHMZZ EPn E2021-12-28 19:54:101y0367353
IIEES SCYZKHZ EPn E2021-12-28 19:54:190.1y045262
IIEES SCGHVRZ EPn E2021-12-28 19:54:200.9y045410
IIEES SCASAOZ EPn E2021-12-28 19:54:210.9y0456355
IIEES SCILBAZ EPn E2021-12-28 19:54:28-1.3n4531312
