Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
:3
Date & Time (UTC) 2022-01-06 09:15:12.0
Date & Time (Local) 1400/10/16  12:45:12.0

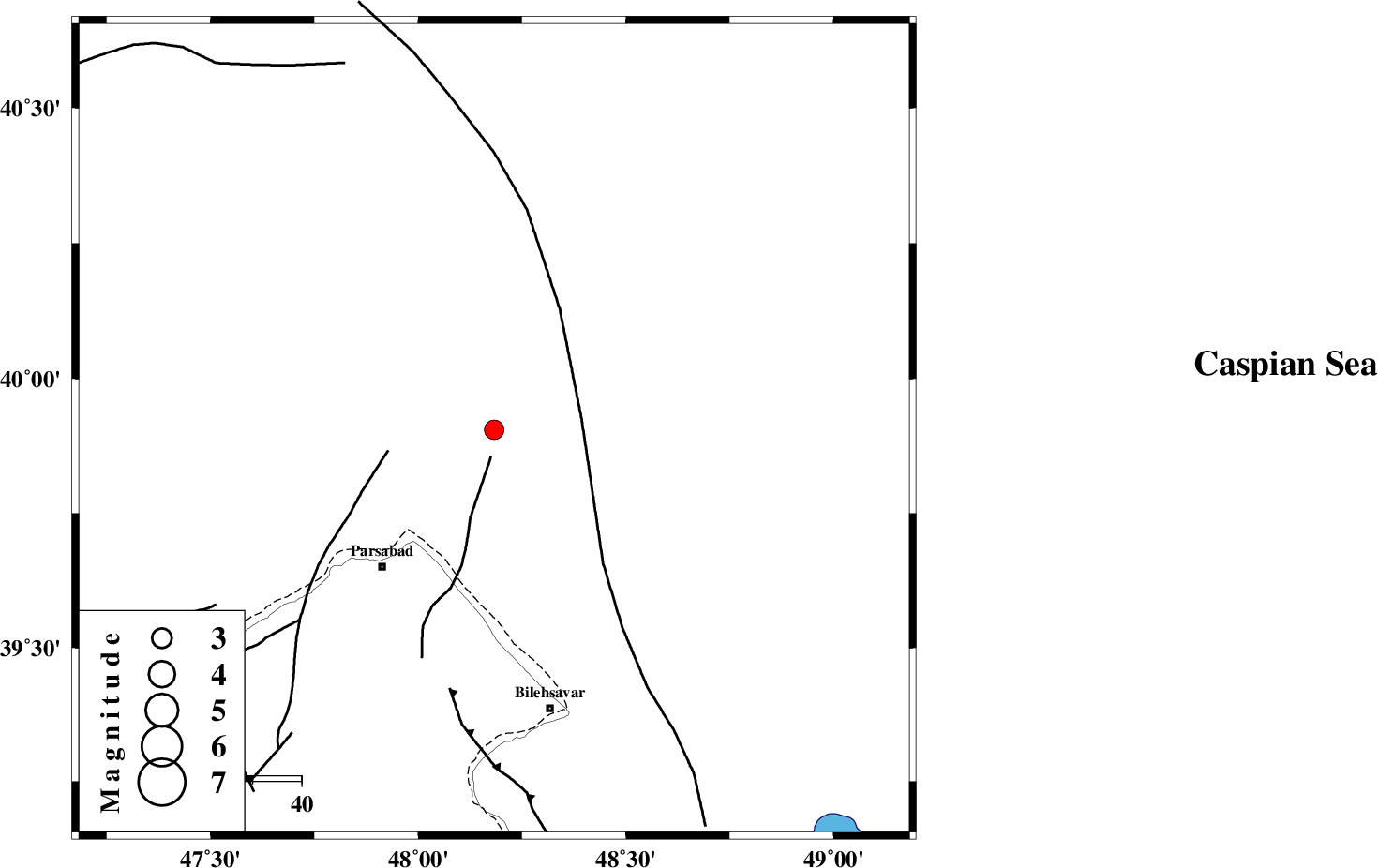

Location Lat:39.905 Lon: 48.183
Region Azerbaijan, 37 km North-East of Pars Abad
Nearest Cities
31 km North East of Kushlu, Ardebil Province
34 km North East of Tazeh kand-e gadim, Ardebil Province
37 km North East of Pars Abad, Ardebil Province
49 km North East of Jaefarabad, Ardebil Province
59 km North West of Bileh Savar, Ardebil Province
Depth 12 km
Agency
Faults within 150 km:
TALESH_F (Length: 258 km) , Distance to epicenter: 54 km
DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 72 km
Number of Phases 12
RMS 0.4
Number of Stations 12
Error in Latitude >5.5 km
Error in Longitude 5.5 km
Error in Depth 14.2 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
167937IIEES SCAZRZ 0.212022-01-06 09:15:592022-01-08 05:14:00n
167938IIEES SCGIDEZ 0.0512022-01-06 09:16:042022-01-08 05:14:00n
167939IIEES SCCHTHZ 0.0112022-01-06 09:16:242022-01-08 05:14:00n
167940IIEES SCSNGEZ 0.0112022-01-06 09:16:262022-01-08 05:14:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCGRMIZ EPg E2022-01-06 09:15:32-0.1y0124192
IIEES SCMRDZ EPn E2022-01-06 09:15:510.1y0252238
IIEES SCMAKUZ EPn E2022-01-06 09:15:57-0.2y0307259
IIEES SCAZRZ EPn E2022-01-06 09:15:590.8y0312218
IIEES SCGIDEZ EPn E2022-01-06 09:16:04-0.2y0361157
IIEES SCZNJKZ EPn E2022-01-06 09:16:04-0.2y0362173
IIEES SCGZVZ EPn E2022-01-06 09:16:13-0.3y0429155
IIEES SCCHTHZ EPn E2022-01-06 09:16:240.2y0514150
IIEES SCSNGEZ EPn E2022-01-06 09:16:26-0.4y0539188
IIEES SCGLOZ EPn E2022-01-06 09:16:24-12.6n4622127
IIEES SCABGHZ EPn E2022-01-06 09:16:30-14.1n4677121
IIEES SCMRVTZ EPn E2022-01-06 09:16:35-15.4n4731110
