Date & Time (UTC) 2022-01-06 23:47:46.3
Date & Time (Local) 1400/10/17  03:17:46.3

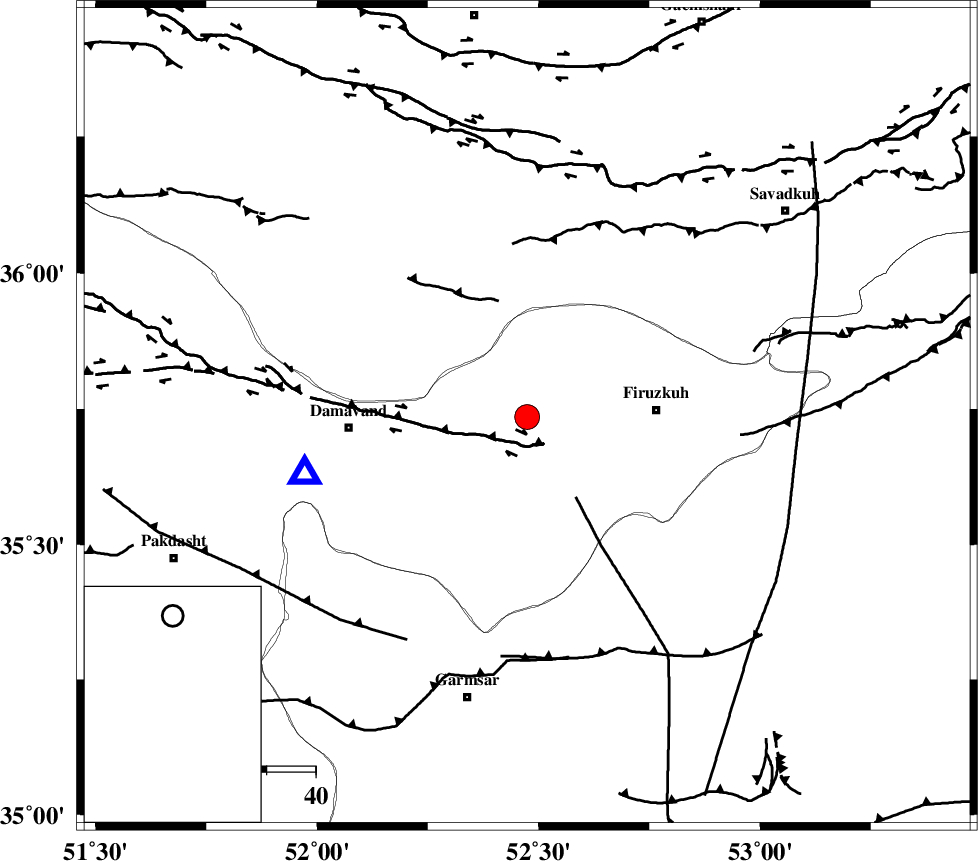

Location Lat:35.735 Lon: 52.474
Region Tehran Province, 26 km -West of Firuzkuh
Nearest Cities
9 km of Arjomand, Tehran Province
18 km North East of Sarbandan, Tehran Province
21 km West of Shahrabad, Tehran Province
21 km North West of Atashan, Tehran Province
26 km West of Firuzkuh, Tehran Province
Depth 10 km
Faults within 150 km:
MOSHA_F (Length: 234 km) , Distance to epicenter: 5 km
ATARI_F (Length: 185 km) , Distance to epicenter: 44 km
GARMSAR_F (Length: 77 km) , Distance to epicenter: 50 km
Number of Phases 24
RMS 0.4
Number of Stations 24
Error in Latitude >1.1 km
Error in Longitude 1.1 km
Error in Depth 5.2 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
167941IIEES SCCHTHZ 0.912022-01-06 23:48:062022-01-08 05:25:00n
167942IIEES SCGLOZ 312022-01-06 23:48:102022-01-08 05:25:00n
167943IIEES SCGHVRZ 112022-01-06 23:48:152022-01-08 05:25:00n
167944IIEES SCASAOZ 112022-01-06 23:48:262022-01-08 05:25:00n
167945IIEES SCGIDEZ 0.712022-01-06 23:48:282022-01-08 05:25:00n
167946IIEES SCSHROZ 0.112022-01-06 23:48:352022-01-08 05:25:00n
167947IIEES SCNASNZ 0.212022-01-06 23:48:352022-01-08 05:25:00n
167948IIEES SCZNJKZ 0.0612022-01-06 23:48:392022-01-08 05:25:00n
167949IIEES SCMRVTZ 0.0812022-01-06 23:48:422022-01-08 05:25:00n
167950IIEES SCYZKHZ 0.212022-01-06 23:48:462022-01-08 05:25:00n
167951IIEES SCSNGEZ 0.0712022-01-06 23:48:532022-01-08 05:25:00n
167952IIEES SCGTMRZ 0.0612022-01-06 23:48:542022-01-08 05:25:00n
167953IIEES SCTABSZ 0.0912022-01-06 23:48:542022-01-08 05:25:00n
167954IIEES SCGRMIZ 0.0512022-01-06 23:49:002022-01-08 05:25:00n
167955IIEES SCKLNJZ 0.0512022-01-06 23:49:002022-01-08 05:25:00n
167956IIEES SCKAGHZ 0.00812022-01-06 23:49:202022-01-08 05:25:00n
167957IIEES SCTBJMZ 0.0312022-01-06 23:49:232022-01-08 05:25:00n
167958IIEES SCBSRNZ 0.0212022-01-06 23:49:272022-01-08 05:25:00n
167959IIEES SCSHRTZ 0.0212022-01-06 23:49:272022-01-08 05:25:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCCHTHZ EPg E2022-01-06 23:48:06-0.7y0123279
IIEES SCCHTHZ ESg E2022-01-06 23:48:21-1.4n4123279
IIEES SCANJZ EPg E2022-01-06 23:48:08-0.6y0134103
IIEES SCGLOZ EPg E2022-01-06 23:48:10-0.3y014955
IIEES SCGHVRZ EPg E2022-01-06 23:48:150y0179219
IIEES SCGZVZ EPn E2022-01-06 23:48:210.2y0216290
IIEES SCABGHZ EPn E2022-01-06 23:48:240.2y023762
IIEES SCASAOZ EPn E2022-01-06 23:48:26-0.5y0259239
IIEES SCGIDEZ EPn E2022-01-06 23:48:280.2y0272299
IIEES SCSHROZ EPn E2022-01-06 23:48:350.8y032185
IIEES SCNASNZ EPn E2022-01-06 23:48:35-0.1y0327175
IIEES SCZNJKZ EPn E2022-01-06 23:48:390.8y0356287
IIEES SCMRVTZ EPn E2022-01-06 23:48:42-0.3y038757
IIEES SCYZKHZ EPn E2022-01-06 23:48:46-0.1y0419152
IIEES SCSNGEZ EPn E2022-01-06 23:48:530.4y0471261
IIEES SCGTMRZ EPn E2022-01-06 23:48:540.8y0477221
IIEES SCTABSZ EPn E2022-01-06 23:48:54-0.2y0484119
IIEES SCGRMIZ EPn E2022-01-06 23:49:00-0.4y0530310
IIEES SCKLNJZ EPn E2022-01-06 23:49:00-0.2y0531189
IIEES SCKAGHZ EPn E2022-01-06 23:49:200.7y068579
IIEES SCMRDZ EPn E2022-01-06 23:49:19-0.3y0686299
IIEES SCTBJMZ EPn E2022-01-06 23:49:23-0.1y071494
IIEES SCBSRNZ EPn E2022-01-06 23:49:270y0744124
IIEES SCSHRTZ EPn E2022-01-06 23:49:27-0.1y0753108
