Magnitude
:3.5
Date & Time (UTC) 2022-01-09 08:29:06.2
Date & Time (Local) 1400/10/19  11:59:06.2

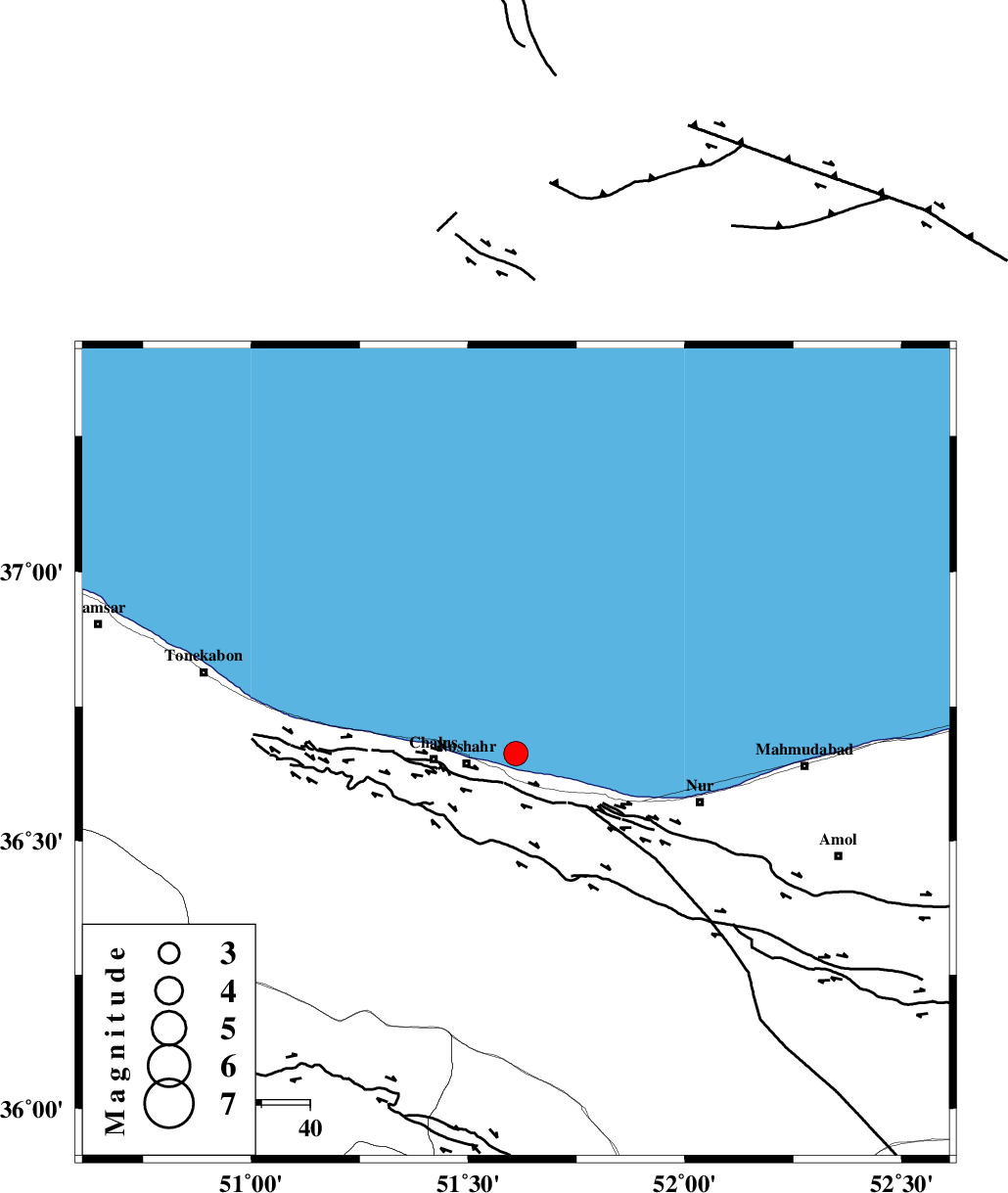

Location Lat:36.662 Lon: 51.61
Region Caspian Sea, 10 km -East of Nowshahr
Nearest Cities
10 km North East of Nowshahr, Mazandaran Province
12 km North of Andarud, Mazandaran Province
17 km North East of Chalus, Mazandaran Province
27 km North West of Narenj bon, Mazandaran Province
29 km North of Pul, Mazandaran Province
Depth 12 km
Agency
Faults within 150 km:
KHAZAR_F (Length: 523 km) , Distance to epicenter: 8 km
N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 20 km
KOJOOR (Length: 75 km) , Distance to epicenter: 27 km
Number of Phases 18
RMS 0.5
Number of Stations 18
Error in Latitude >1.7 km
Error in Longitude 1.7 km
Error in Depth 7 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
168023IIEES SCCHTHZ 112022-01-09 08:29:212022-01-09 09:25:00n
168024IIEES SCGIDEZ 312022-01-09 08:29:322022-01-09 09:25:00n
168025IIEES SCGHVRZ 0.912022-01-09 08:29:442022-01-09 09:25:00n
168026IIEES SCANJZ 0.412022-01-09 08:29:452022-01-09 09:25:00n
168027IIEES SCASAOZ 0.512022-01-09 08:29:482022-01-09 09:25:00n
168028IIEES SCSHROZ 0.212022-01-09 08:30:042022-01-09 09:25:00n
168029IIEES SCGRMIZ 0.112022-01-09 08:30:042022-01-09 09:25:00n
168030IIEES SCMRVTZ 0.112022-01-09 08:30:052022-01-09 09:25:00n
168031IIEES SCNASNZ 0.0812022-01-09 08:30:082022-01-09 09:25:00n
168032IIEES SCGTMRZ 0.0912022-01-09 08:30:182022-01-09 09:25:00n
168033IIEES SCBJRDZ 0.0312022-01-09 08:30:192022-01-09 09:25:00n
168034IIEES SCYZKHZ 0.0612022-01-09 08:30:212022-01-09 09:25:00n
168035IIEES SCILBAZ 0.112022-01-09 08:30:282022-01-09 09:25:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCCHTHZ EPg E2022-01-09 08:29:21-1.5y094207
IIEES SCGZVZ EPg E2022-01-09 08:29:280.7y0128256
IIEES SCGIDEZ EPg E2022-01-09 08:29:320y0162280
IIEES SCGLOZ EPg E2022-01-09 08:29:380y020095
IIEES SCGHVRZ EPn E2022-01-09 08:29:440.2y0244188
IIEES SCANJZ EPn E2022-01-09 08:29:450.9y0246123
IIEES SCZNJKZ EPn E2022-01-09 08:29:482n4262270
IIEES SCASAOZ EPn E2022-01-09 08:29:480.1y0275211
IIEES SCABGHZ EPn E2022-01-09 08:29:500.6y028588
IIEES SCSHROZ EPn E2022-01-09 08:30:040y0402100
IIEES SCGRMIZ EPn E2022-01-09 08:30:04-0.4y0405306
IIEES SCMRVTZ EPn E2022-01-09 08:30:050.1y041374
IIEES SCNASNZ EPn E2022-01-09 08:30:08-0.4y0442166
IIEES SCGTMRZ EPn E2022-01-09 08:30:180.3y0518206
IIEES SCBJRDZ EPn E2022-01-09 08:30:19-0.6y052877
IIEES SCYZKHZ EPn E2022-01-09 08:30:21-0.6y0547150
IIEES SCSRSLZ EPn E2022-01-09 08:30:252.4n4556265
IIEES SCILBAZ EPn E2022-01-09 08:30:280.3y0597236
