Date & Time (UTC) 2022-01-10 17:46:47.0
Date & Time (Local) 1400/10/20  21:16:47.0

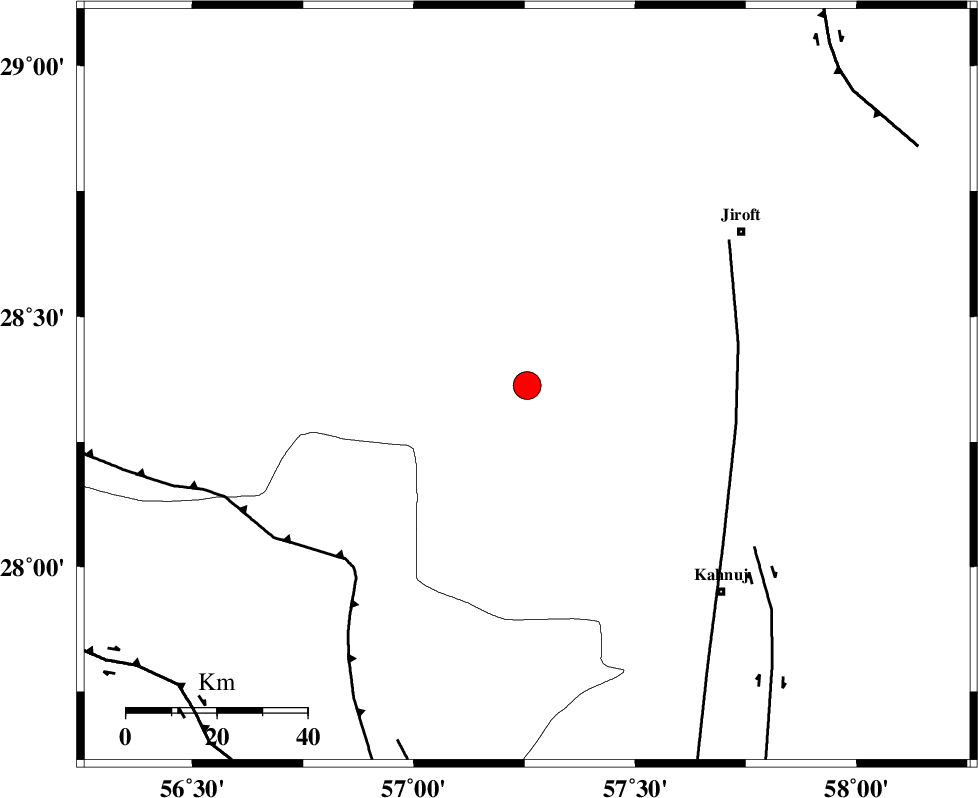

Location Lat:28.363 Lon: 57.256
Region Kerman Province, 58 km South-West of Jiroft
Nearest Cities
20 km North of Hurpasefid, Kerman Province
33 km North West of Bolock, Kerman Province
33 km North of Faryab, Kerman Province
34 km North West of Mehrueye-e paeen, Kerman Province
37 km North East of Sarkhan, Kerman Province
Depth 16 km
Faults within 150 km:
SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 47 km
MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 56 km
JIROFT_F (Length: 144 km) , Distance to epicenter: 62 km
Number of Phases 17
RMS 0.4
Number of Stations 17
Error in Latitude >1.6 km
Error in Longitude 1.6 km
Error in Depth 6.5 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
168070IIEES SCBNDSZ 1012022-01-10 17:47:122022-01-11 05:45:00n
168071IIEES SCKRBRZ 412022-01-10 17:47:162022-01-11 05:45:00n
168072IIEES SCJSSHZ 0.512022-01-10 17:47:282022-01-11 05:45:00n
168073IIEES SCBSRNZ 0.312022-01-10 17:47:482022-01-11 05:45:00n
168074IIEES SCCHBRZ 0.212022-01-10 17:47:492022-01-11 05:45:00n
168075IIEES SCYZKHZ 0.212022-01-10 17:47:582022-01-11 05:45:00n
168076IIEES SCTABSZ 0.212022-01-10 17:48:072022-01-11 05:45:00n
168077IIEES SCNASNZ 0.0512022-01-10 17:48:142022-01-11 05:45:00n
168078IIEES SCSHRTZ 0.0512022-01-10 17:48:162022-01-11 05:45:00n
168079IIEES SCTBJMZ 0.0412022-01-10 17:48:372022-01-11 05:45:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCBNDSZ EPg E2022-01-10 17:47:120.5y0151225
IIEES SCKRBRZ EPg E2022-01-10 17:47:16-0.4y0186345
IIEES SCJSSHZ EPn E2022-01-10 17:47:28-0.1y0272177
IIEES SCLMD1Z EPn E2022-01-10 17:47:460y0419254
IIEES SCGHIRZ EPn E2022-01-10 17:47:45-0.7y0419269
IIEES SCBSRNZ EPn E2022-01-10 17:47:48-0.2y043824
IIEES SCCHBRZ EPn E2022-01-10 17:47:49-0.1y0443134
IIEES SCYZKHZ EPn E2022-01-10 17:47:58-0.1y0515330
IIEES SCSRVNZ EPn E2022-01-10 17:48:012.2n4517102
IIEES SCTABSZ EPn E2022-01-10 17:48:070.6y0586359
IIEES SCKLNJZ EPn E2022-01-10 17:48:10-1.6n4622298
IIEES SCNASNZ EPn E2022-01-10 17:48:14-0.9y0651319
IIEES SCSHRTZ EPn E2022-01-10 17:48:161.1y065426
IIEES SCTBJMZ EPn E2022-01-10 17:48:370.7y081921
IIEES SCGTMRZ EPn E2022-01-10 17:48:43-3.4n4905300
IIEES SCKHMZZ EPn E2022-01-10 17:48:490.6y0916311
IIEES SCMRVTZ EPn E2022-01-10 17:49:030.2y01037354
