Date & Time (UTC) 2022-01-16 17:51:33.5
Date & Time (Local) 1400/10/26  21:21:33.5

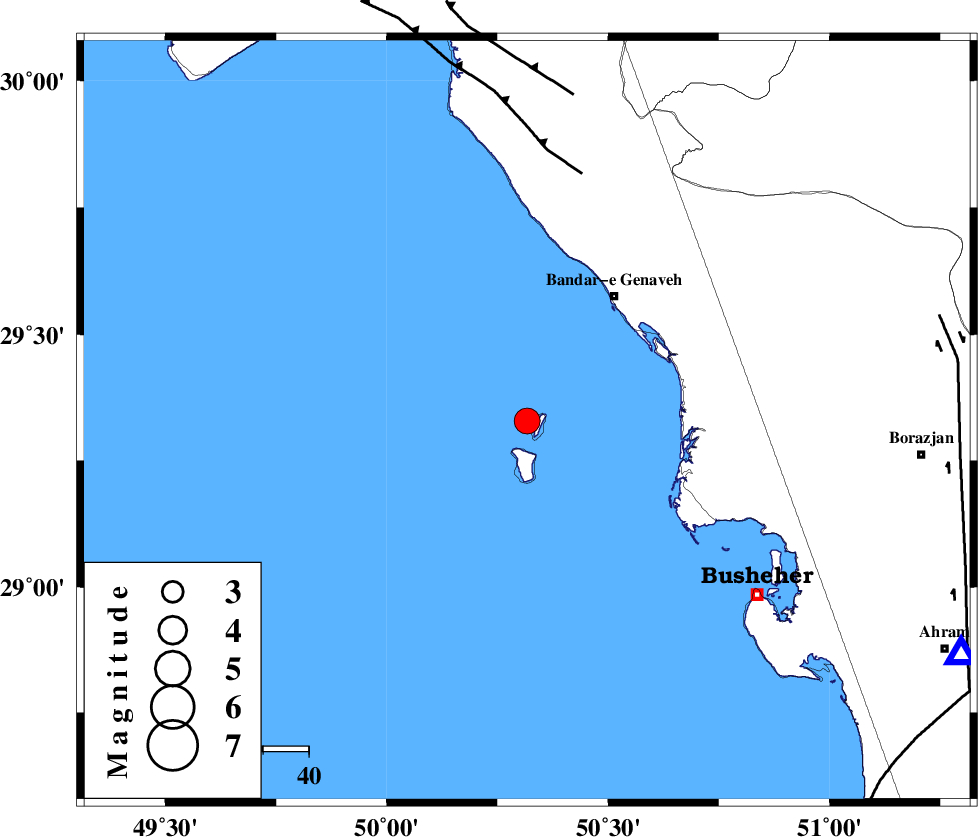

Location Lat:29.329 Lon: 50.317
Region Persian Gulf, 33 km South-West of Bandar-e genaveh
Nearest Cities
33 km South West of Bandar-e genaveh, Bushehr Province
35 km South West of Bandarehrig, Bushehr Province
45 km South West of Mohammad salehi, Bushehr Province
51 km South West of Chehar rustaee, Bushehr Province
57 km South of Emamhasan, Bushehr Province
Depth 12 km
Faults within 150 km:
ZFF3 (Length: 125 km) , Distance to epicenter: 53 km
ZFF2 (Length: 84 km) , Distance to epicenter: 88 km
RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 90 km
Number of Phases 14
RMS 0.3
Number of Stations 14
Error in Latitude >2.2 km
Error in Longitude 2.2 km
Error in Depth 332.9 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
168260IIEES SCKLNJZ 112022-01-16 17:52:092022-01-17 06:50:00n
168261IIEES SCGTMRZ 0.312022-01-16 17:52:262022-01-17 06:50:00n
168262IIEES SCKHMZZ 0.0512022-01-16 17:52:422022-01-17 06:50:00n
168263IIEES SCYZKHZ 0.0412022-01-16 17:52:472022-01-17 06:50:00n
168264IIEES SCGHVRZ 0.0512022-01-16 17:52:522022-01-17 06:50:00n
168265IIEES SCASAOZ 0.0412022-01-16 17:52:542022-01-17 06:50:00n
168266IIEES SCKRBRZ 0.0512022-01-16 17:52:592022-01-17 06:50:00n
168267IIEES SCSNGEZ 0.0312022-01-16 17:53:082022-01-17 06:50:00n
168268IIEES SCCHTHZ 0.0312022-01-16 17:53:122022-01-17 06:50:00n
168269IIEES SCANJZ 0.0112022-01-16 17:53:152022-01-17 06:50:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCKLNJZ EPn E2022-01-16 17:52:090.4y022333
IIEES SCGHIRZ EPn E2022-01-16 17:52:160y0285114
IIEES SCLMD1Z EPn E2022-01-16 17:52:25-0.1y0356128
IIEES SCGTMRZ EPn E2022-01-16 17:52:26-0.2y0367342
IIEES SCNASNZ EPn E2022-01-16 17:52:380.1y045232
IIEES SCKHMZZ EPn E2022-01-16 17:52:420.2y0490356
IIEES SCYZKHZ EPn E2022-01-16 17:52:47-0.1y053150
IIEES SCGHVRZ EPn E2022-01-16 17:52:52-0.8y05789
IIEES SCASAOZ EPn E2022-01-16 17:52:540.6y0579357
IIEES SCBNDSZ EPn E2022-01-16 17:52:57-0.3y0612110
IIEES SCKRBRZ EPn E2022-01-16 17:52:590.2y062883
IIEES SCSNGEZ EPn E2022-01-16 17:53:080.2y0698336
IIEES SCCHTHZ EPn E2022-01-16 17:53:12-0.1y07346
IIEES SCANJZ EPn E2022-01-16 17:53:15-0.8y076026
