Magnitude
:3.8
Date & Time (UTC) 2022-01-16 22:56:18.2
Date & Time (Local) 1400/10/27  02:26:18.2

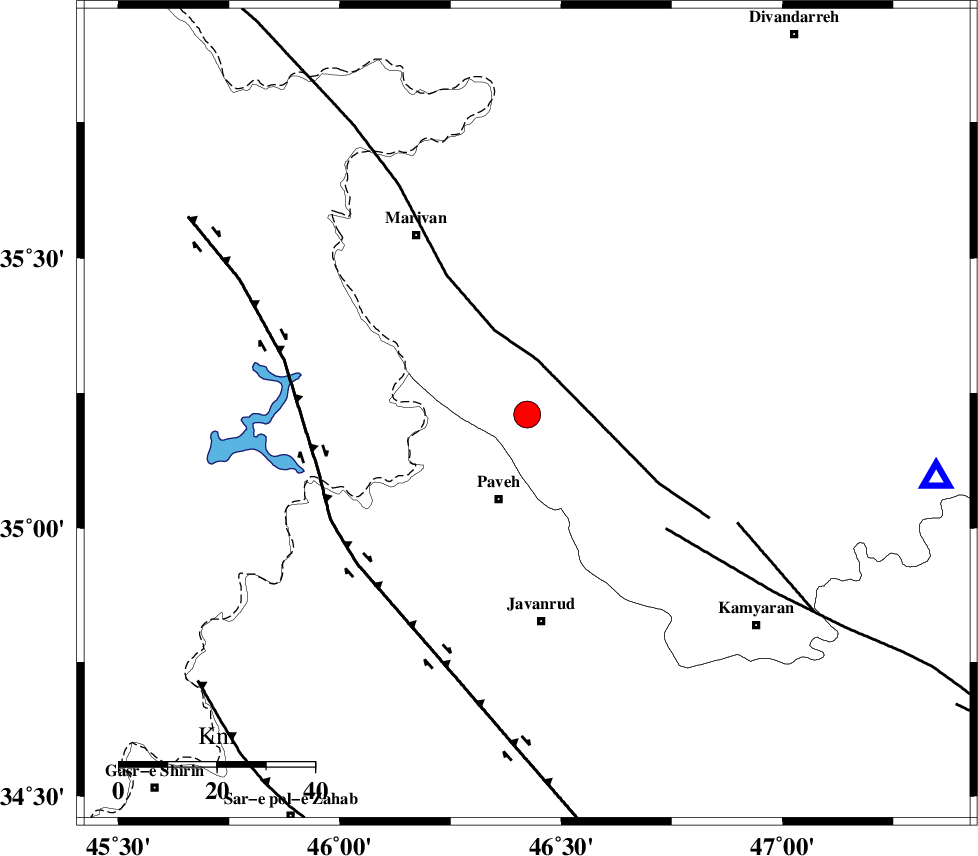

Location Lat:35.21 Lon: 46.423
Region Kurdistan Province, 18 km North of Paveh
Nearest Cities
10 km of Razab, Kurdistan Province
10 km North of Zharizheh, Kurdistan Province
13 km of Nagol, Kurdistan Province
15 km North West of Baygalan, Kurdistan Province
15 km East of Oramantakht, Kurdistan Province
Depth 12 km
Agency
Faults within 150 km:
PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 11 km
SARTAKHT_F (Length: 78 km) , Distance to epicenter: 37 km
HZF4 (Length: 492 km) , Distance to epicenter: 44 km
Number of Phases 11
RMS 0.5
Number of Stations 11
Error in Latitude >4.1 km
Error in Longitude 4.1 km
Error in Depth 18.3 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
168278IIEES SCSRSLZ 312022-01-16 22:56:412022-01-17 08:45:00n
168279IIEES SCMAHBZ 212022-01-16 22:56:472022-01-17 08:45:00n
168280IIEES SCKHMZZ 0.312022-01-16 22:57:112022-01-17 08:45:00n
168281IIEES SCGZVZ 0.312022-01-16 22:57:122022-01-17 08:45:00n
168282IIEES SCGTMRZ 0.312022-01-16 22:57:132022-01-17 08:45:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCSRSLZ EPg E2022-01-16 22:56:41-0.3y0143321
IIEES SCILBAZ EPg E2022-01-16 22:56:470.3y0177186
IIEES SCILBAZ ESg E2022-01-16 22:57:102.4n4177186
IIEES SCMAHBZ EPg E2022-01-16 22:56:47-0.7y0184339
IIEES SCZNJKZ EPn E2022-01-16 22:57:001.4n426152
IIEES SCAZRZ EPn E2022-01-16 22:57:010.8y0277352
IIEES SCASAOZ EPn E2022-01-16 22:57:080.2y0338103
IIEES SCKHMZZ EPn E2022-01-16 22:57:11-0.5y0364117
IIEES SCGZVZ EPn E2022-01-16 22:57:120.1y036769
IIEES SCGTMRZ EPn E2022-01-16 22:57:13-1y0393141
IIEES SCGHVRZ EPn E2022-01-16 22:57:21-0.2y0448100
