Date & Time (UTC) 2022-01-17 21:50:08.1
Date & Time (Local) 1400/10/28  01:20:08.1

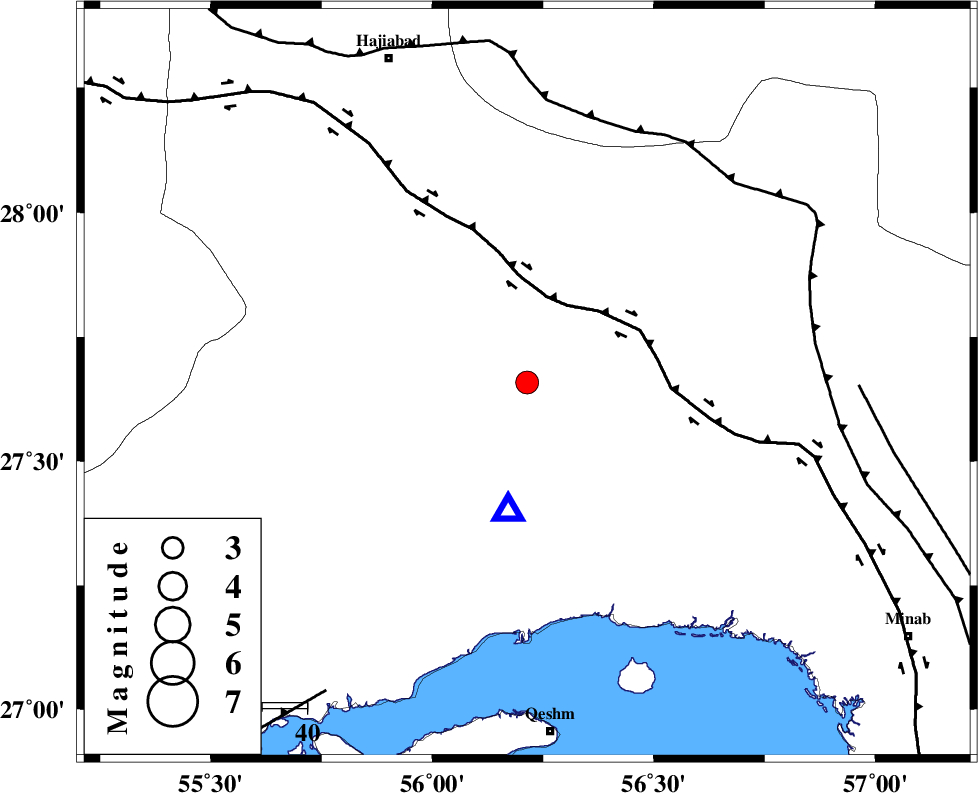

Location Lat:27.658 Lon: 56.214
Region Hormozgan Province, 53 km North of Bandar-e abbas
Nearest Cities
31 km North East of Fin, Hormozgan Province
40 km South of Fareqan, Hormozgan Province
53 km North of Bandar-e abbas, Hormozgan Province
78 km North of Qeshm, Hormozgan Province
79 km South East of Hajiabad, Hormozgan Province
Depth 9 km
Faults within 150 km:
HZF2 (Length: 437 km) , Distance to epicenter: 19 km
MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 61 km
ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 74 km
Number of Phases 11
RMS 0.2
Number of Stations 11
Error in Latitude >1.3 km
Error in Longitude 1.3 km
Error in Depth 2.4 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
168283IIEES SCBNDSZ 1012022-01-17 21:50:132022-01-19 06:26:00n
168284IIEES SCKRBRZ 0.312022-01-17 21:50:492022-01-19 06:26:00n
168285IIEES SCYZKHZ 0.0212022-01-17 21:51:242022-01-19 06:26:00n
168286IIEES SCBSRNZ 0.0312022-01-17 21:51:242022-01-19 06:26:00n
168287IIEES SCNASNZ 0.0112022-01-17 21:51:382022-01-19 06:26:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCBNDSZ EPg E2022-01-17 21:50:130y029188
IIEES SCJSSHZ EPn E2022-01-17 21:50:44-0.2y0226149
IIEES SCKRBRZ EPn E2022-01-17 21:50:490.6y026312
IIEES SCLMD1Z EPn E2022-01-17 21:50:540.2y0303263
IIEES SCGHIRZ EPn E2022-01-17 21:50:560.1y0325282
IIEES SCZHSFZ EPn E2022-01-17 21:51:08-9.7n449564
IIEES SCYZKHZ EPn E2022-01-17 21:51:240y0547343
IIEES SCBSRNZ EPn E2022-01-17 21:51:24-0.4y055431
IIEES SCSRVNZ EPn E2022-01-17 21:51:320.2y061293
IIEES SCNASNZ EPn E2022-01-17 21:51:38-0.2y0658330
IIEES SCGTMRZ EPn E2022-01-17 21:52:03-0.4y0868308
