Date & Time (UTC) 2022-11-16 08:01:59.9
Date & Time (Local) 1401/8/25  11:31:59.9

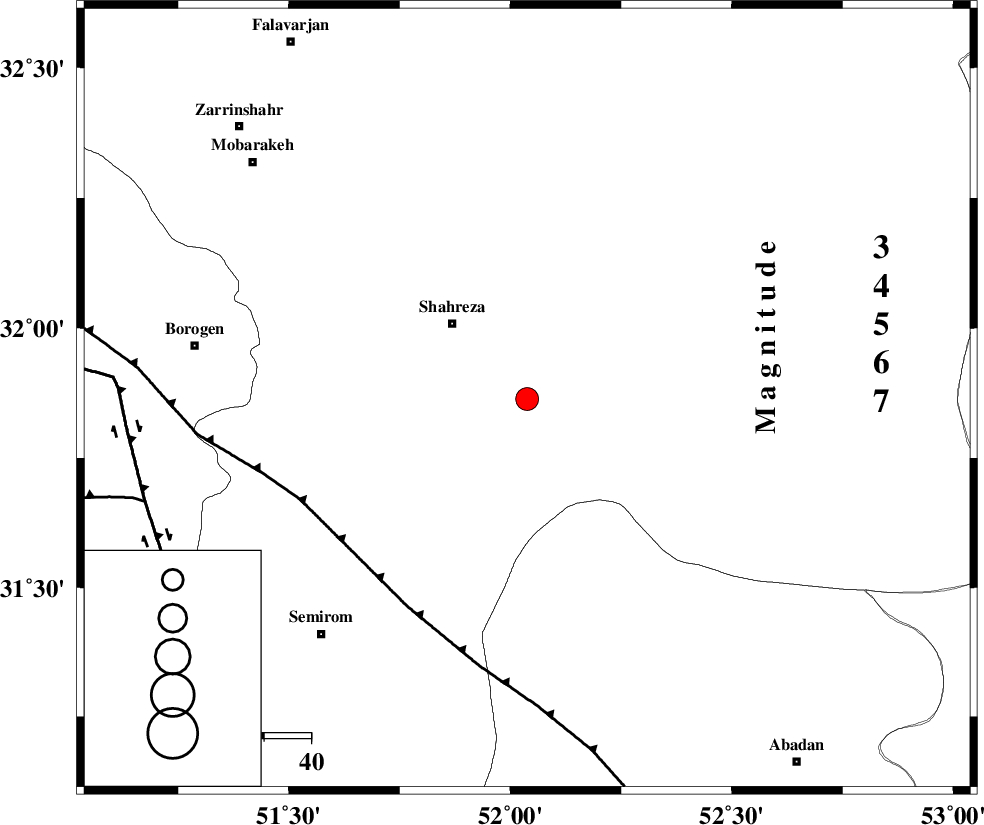

Location Lat:31.864 Lon: 52.038
Region Esfahan Province, 23 km South-East of Shahreza
Nearest Cities
23 km South East of Shahreza, Esfahan Province
26 km North East of Esfarjan, Esfahan Province
28 km North East of Kahruyeh, Esfahan Province
29 km East of Musaabad, Esfahan Province
38 km East of Dahaqan, Esfahan Province
Depth 12 km
Faults within 150 km:
MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 51 km
DOPOLAN_F (Length: 107 km) , Distance to epicenter: 85 km
DENA_F (Length: 137 km) , Distance to epicenter: 85 km
Number of Phases 15
RMS 0.7
Number of Stations 15
Error in Latitude >1.8 km
Error in Longitude 1.8 km
Error in Depth 7.1 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
175164IIEES SCKLNJZ 112022-11-16 08:02:162022-11-16 11:30:00n
175165IIEES SCTAFTZ 0.612022-11-16 08:02:322022-11-16 11:30:00n
175166IIEES SCTAFTZ 0.612022-11-16 08:02:562022-11-16 11:30:00n
175167IIEES SCMEHZ 0.112022-11-16 08:02:402022-11-16 11:30:00n
175168IIEES SCGTMRZ 0.312022-11-16 08:02:422022-11-16 11:30:00n
175169IIEES SCKHMZZ 0.212022-11-16 08:02:432022-11-16 11:30:00n
175170IIEES SCGHVRZ 0.312022-11-16 08:02:452022-11-16 11:30:00n
175171IIEES SCAHRMZ 0.0512022-11-16 08:02:502022-11-16 11:30:00n
175172IIEES SCASAOZ 0.212022-11-16 08:02:522022-11-16 11:30:00n
175173IIEES SCCHTHZ 0.0612022-11-16 08:03:052022-11-16 11:30:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCKLNJZ EPg E2022-11-16 08:02:16-0.9y0104204
IIEES SCNASNZ EPg E2022-11-16 08:02:19-1.4y012735
IIEES SCTAFTZ EPn E2022-11-16 08:02:32-0.6y020394
IIEES SCTAFTZ ES E2022-11-16 08:02:56-0.3y020394
IIEES SCYZKHZ EPn E2022-11-16 08:02:390.7y024876
IIEES SCYZKHZ ES E2022-11-16 08:03:06-0.4y024876
IIEES SCMEHZ EPn E2022-11-16 08:02:401.1y0250102
IIEES SCGTMRZ EPn E2022-11-16 08:02:42-0.3y0284284
IIEES SCKHMZZ EPn E2022-11-16 08:02:43-0.4y0284317
IIEES SCGHVRZ EPn E2022-11-16 08:02:450.3y0299346
IIEES SCAHRMZ EPn E2022-11-16 08:02:500.6y0340192
IIEES SCASAOZ EPn E2022-11-16 08:02:521y0352328
IIEES SCGHIRZ EPn E2022-11-16 08:02:590.6y0407167
IIEES SCCHTHZ EPn E2022-11-16 08:03:050.3y0456349
IIEES SCTABSZ EPn E2022-11-16 08:03:110y051667
