Date & Time (UTC) 2022-11-25 06:56:09.5
Date & Time (Local) 1401/9/4  10:26:09.5

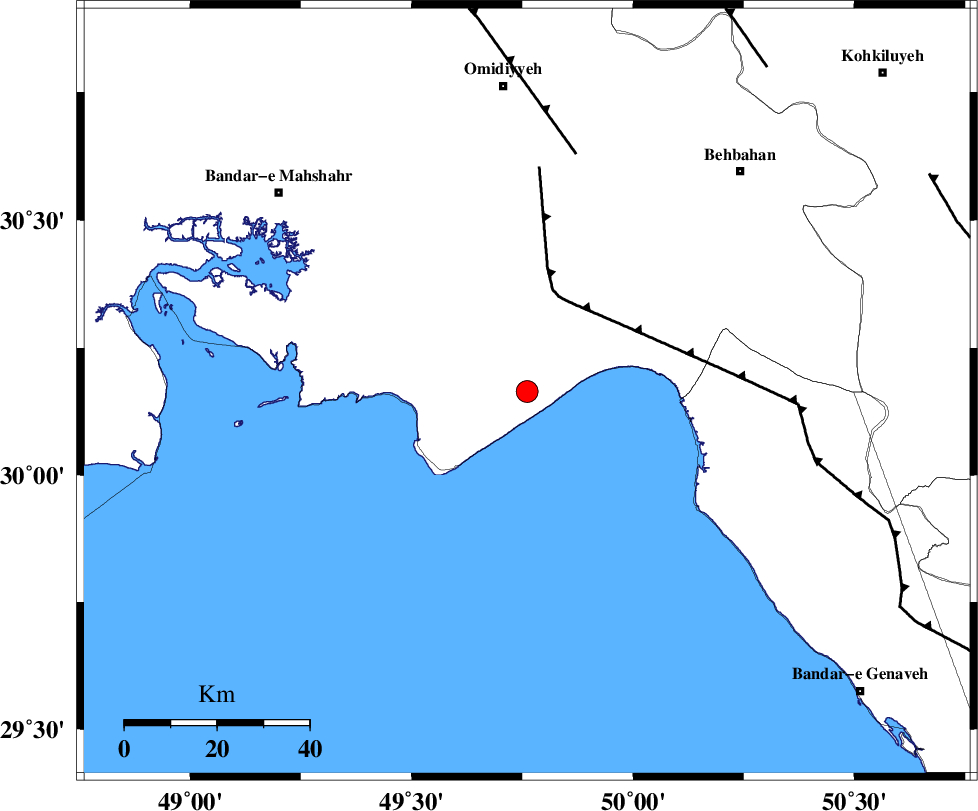

Location Lat:30.164 Lon: 49.761
Region Khoozestan Province, 9 km of Hendijan
Nearest Cities
9 km of Hendijan, Khoozestan Province
34 km South of Chamkhalf-e eisa, Khoozestan Province
36 km South West of Darunak, Khoozestan Province
41 km North West of Ameri, Bushehr Province
47 km South of Asiyab, Khoozestan Province
Depth 12 km
Faults within 150 km:
RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 22 km
AGHAJARI_F (Length: 88 km) , Distance to epicenter: 53 km
ZFF3 (Length: 125 km) , Distance to epicenter: 59 km
Number of Phases 10
RMS 0.3
Number of Stations 10
Error in Latitude >2.3 km
Error in Longitude 2.3 km
Error in Depth 5.8 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
175576IIEES SCKLNJZ 0.812022-11-25 06:56:422022-11-26 07:19:00n
175577IIEES SCAHRMZ 0.612022-11-25 06:56:432022-11-26 07:19:00n
175578IIEES SCAHRMZ 0.612022-11-25 06:57:072022-11-26 07:19:00n
175579IIEES SCKHMZZ 0.0212022-11-25 06:57:062022-11-26 07:19:00n
175580IIEES SCNASNZ 0.0212022-11-25 06:57:082022-11-26 07:19:00n
175581IIEES SCTAFTZ 0.0512022-11-25 06:57:152022-11-26 07:19:00n
175582IIEES SCASAOZ 0.0212022-11-25 06:57:182022-11-26 07:19:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCKHRKZ EPg E2022-11-25 06:56:28-0.2y0114152
IIEES SCKLNJZ EPg E2022-11-25 06:56:420.2y019962
IIEES SCAHRMZ EPn E2022-11-25 06:56:430.3y0207134
IIEES SCAHRMZ ES E2022-11-25 06:57:07-0.3y0207134
IIEES SCGHIRZ EPn E2022-11-25 06:57:040.2y0376124
IIEES SCKHMZZ EPn E2022-11-25 06:57:06-0.2y03973
IIEES SCNASNZ EPn E2022-11-25 06:57:08-0.4y041145
IIEES SCTAFTZ EPn E2022-11-25 06:57:150.9y045668
IIEES SCLMD1Z EPn E2022-11-25 06:57:13-0.3y0457133
IIEES SCASAOZ EPn E2022-11-25 06:57:180.2y04873
