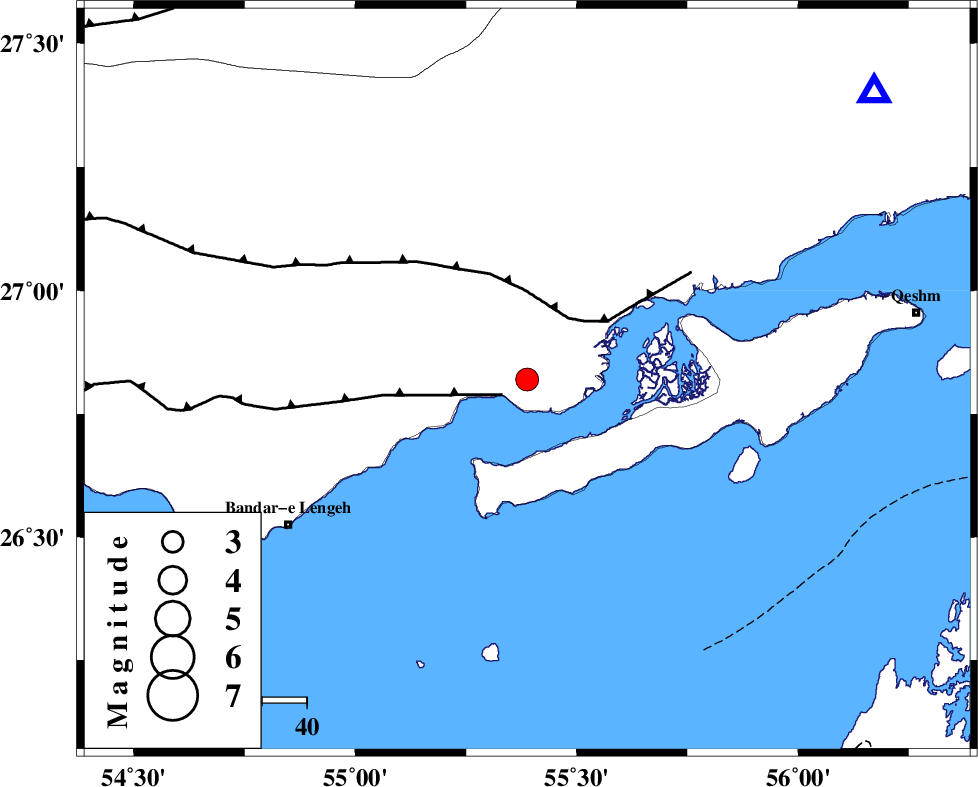

Map Region : lat:-  lon:-

West   East
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Date & Time (UTC) 2022-11-27 23:22:38.4
Date & Time (Local) 1401/9/7  02:52:38.4
Location Lat:26.82 Lon: 55.388
Region Hormozgan Province, 63 km North-East of Bandar-e lengeh
Nearest Cities
25 km South West of Bandar-e khamir, Hormozgan Province
63 km North East of Bandar-e lengeh, Hormozgan Province
67 km North West of Suza, Hormozgan Province
88 km South West of Qeshm, Hormozgan Province
97 km South West of Bandar-e abbas, Hormozgan Province
Depth 12 km
Faults within 150 km:
ZFF1 (Length: 165 km) , Distance to epicenter: 6 km
MFF1 (Length: 180 km) , Distance to epicenter: 17 km
LAR_F (Length: 99 km) , Distance to epicenter: 104 km
Number of Phases 12
RMS 0.2
Number of Stations 12
Error in Latitude >0.9 km
Error in Longitude 0.9 km
Error in Depth 248.7 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
175703IIEES SCUOSSZ 0.212022-11-27 23:23:142022-11-28 05:01:00n
175704IIEES SCJSSHZ 0.312022-11-27 23:23:142022-11-28 05:01:00n
175705IIEES SCLMD1Z 0.712022-11-27 23:23:142022-11-28 05:01:00n
175706IIEES SCKRBRZ 0.0812022-11-27 23:23:322022-11-28 05:01:00n
175707IIEES SCKBAMZ 0.0612022-11-27 23:23:352022-11-28 05:01:00n
175708IIEES SCTAFTZ 0.0312022-11-27 23:23:562022-11-28 05:01:00n
175709IIEES SCZHSFZ 0.0112022-11-27 23:24:012022-11-28 05:01:00n
175710IIEES SCYZKHZ 0.0112022-11-27 23:24:032022-11-28 05:01:00n
175711IIEES SCSRVNZ 0.00912022-11-27 23:24:132022-11-28 05:01:00n
175712IIEES SCNASNZ 0.0112022-11-27 23:24:142022-11-28 05:01:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCUOSSZ EPn E2022-11-27 23:23:140y0223159
IIEES SCJSSHZ EPn E2022-11-27 23:23:140.2y0224117
IIEES SCLMD1Z EPn E2022-11-27 23:23:14-0.1y0228285
IIEES SCGHIRZ EPn E2022-11-27 23:23:220y0287304
IIEES SCKRBRZ EPn E2022-11-27 23:23:32-0.3y037521
IIEES SCKBAMZ EPn E2022-11-27 23:23:35-0.3y039650
IIEES SCTAFTZ EPn E2022-11-27 23:23:560.9y0556348
IIEES SCZHSFZ EPn E2022-11-27 23:24:01-0.8y061260
IIEES SCYZKHZ EPn E2022-11-27 23:24:030.1y0622353
IIEES SCSRVNZ EPn E2022-11-27 23:24:130.2y069885
IIEES SCNASNZ EPn E2022-11-27 23:24:140.3y0708339
IIEES SCKHMZZ EPn E2022-11-27 23:24:420.3y0928326
