Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2015-08-11 11:37:46.2 |
| Date & Time (Local) | 1394/5/20 16:07:46.2 |

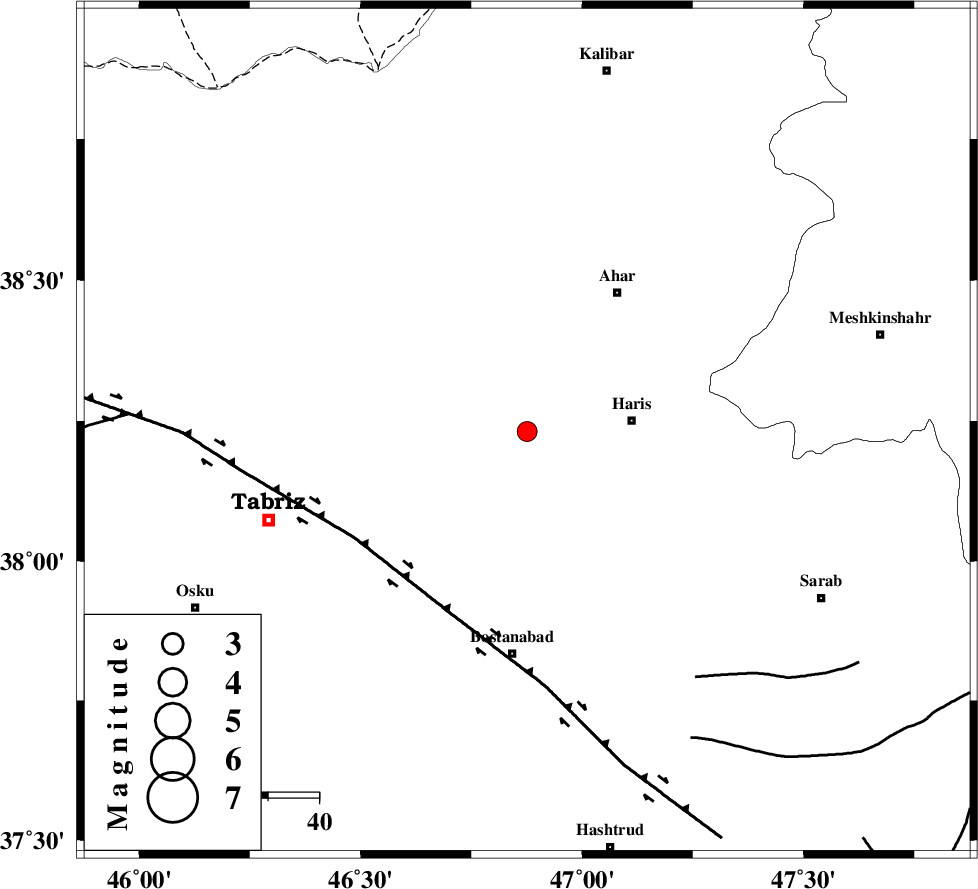

| Location | Lat:38.231 Lon: 46.876 |
| Region | Azarbaijan Sharghi Province, 21 km -West of Haris |
Nearest Cities |
|
| 1 km of Bilverdi, Azarbaijan Sharghi Province | |
| 10 km of Nikcheh, Azarbaijan Sharghi Province | |
| 11 km North of Bakhshayesh, Azarbaijan Sharghi Province | |
| 17 km West of Maqsudlu, Azarbaijan Sharghi Province | |
| 18 km North West of Koluofogh, Azarbaijan Sharghi Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 39 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 59 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 79 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 100303 | IIEES | MAKU | E | 71.4 | 0.35 | 2015-08-11 11:38:55 | 2015-08-12 08:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2015-08-11 11:38:04 | -0.01 | y | 110 | 54 | |||
| IIEES | MAKU | Z | Pn | E | 2015-08-11 11:38:21 | 0.01 | y | 228 | 304 | |||
| IIEES | ZNJK | Z | Pn | E | 2015-08-11 11:38:23 | 0 | y | 236 | 137 | |||
| IIEES | ZNJK | E | Sg | E | 2015-08-11 11:38:53 | 0 | y | 236 | 137 | |||
