Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2015-08-15 19:47:32.4 |
| Date & Time (Local) | 1394/5/25 00:17:32.4 |

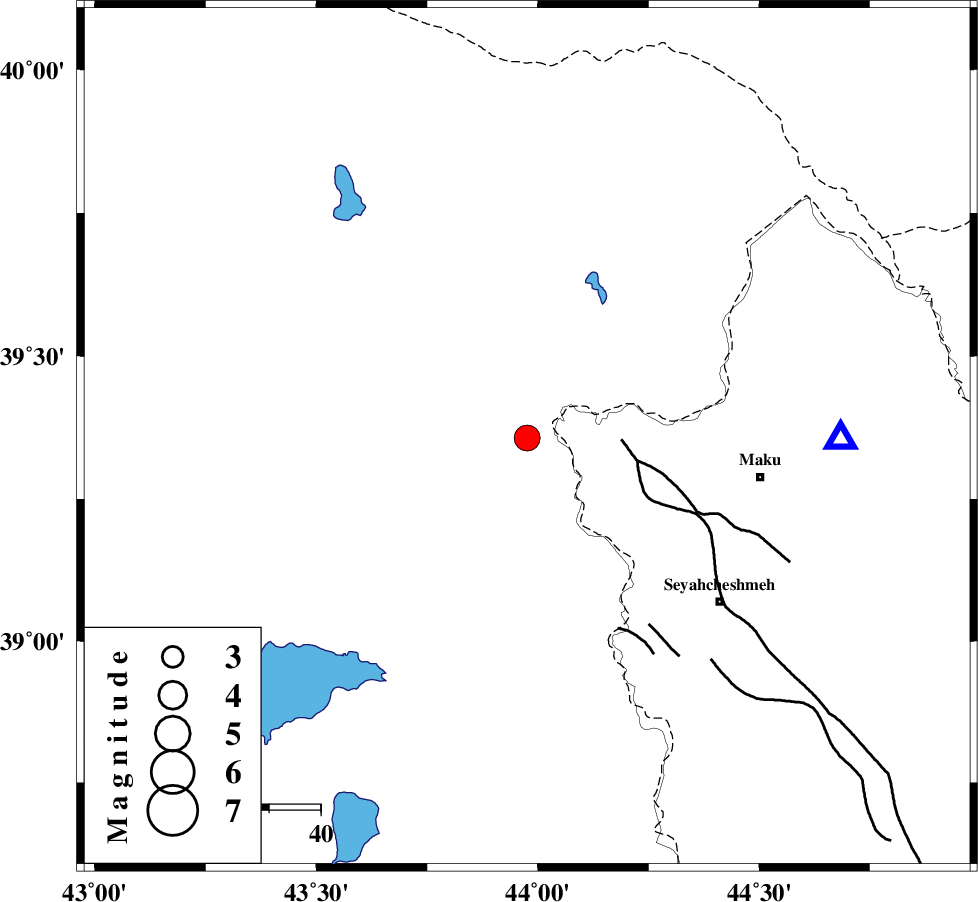

| Location | Lat:39.357 Lon: 43.976 |
| Region | Turkey, 46 km -West of Maku |
Nearest Cities |
|
| 23 km North West of Arab dizaj, Azarbaijan Gharbi Province | |
| 24 km North West of Kelisa kandi, Azarbaijan Gharbi Province | |
| 36 km West of Bazargan, Azarbaijan Gharbi Province | |
| 36 km North West of Sheykh selu-e bala, Azarbaijan Gharbi Province | |
| 39 km North West of Keshmesh tappeh, Azarbaijan Gharbi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 18 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 136 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 141 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >9.3 km |
| Error in Longitude | 7.5 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 100353 | IIEES | MAKU | N | 5060.3 | 0.26 | 2015-08-15 19:47:54 | 2015-08-16 06:22:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pg | E | 2015-08-15 19:47:43 | -0.06 | y | 61 | 90 | |||
| IIEES | MAKU | N | Sg | E | 2015-08-15 19:47:51 | 0.04 | y | 61 | 90 | |||
| IIEES | GRMI | Z | Pn | E | 2015-08-15 19:48:22 | -0.08 | y | 344 | 99 | |||
| IIEES | GRMI | N | Sg | E | 2015-08-15 19:49:08 | -0.06 | y | 344 | 99 | |||
| IIEES | ZNJK | Z | Pn | E | 2015-08-15 19:48:44 | 0.54 | y | 510 | 124 | |||
| IIEES | SNGE | Z | Pn | E | 2015-08-15 19:48:49 | -0.33 | y | 560 | 147 | |||
| IIEES | CHTH | Z | Pn | E | 2015-08-15 19:49:11 | -0.04 | y | 738 | 119 | |||
