Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2015-10-04 13:08:32.3 |
| Date & Time (Local) | 1394/7/12 16:38:32.3 |

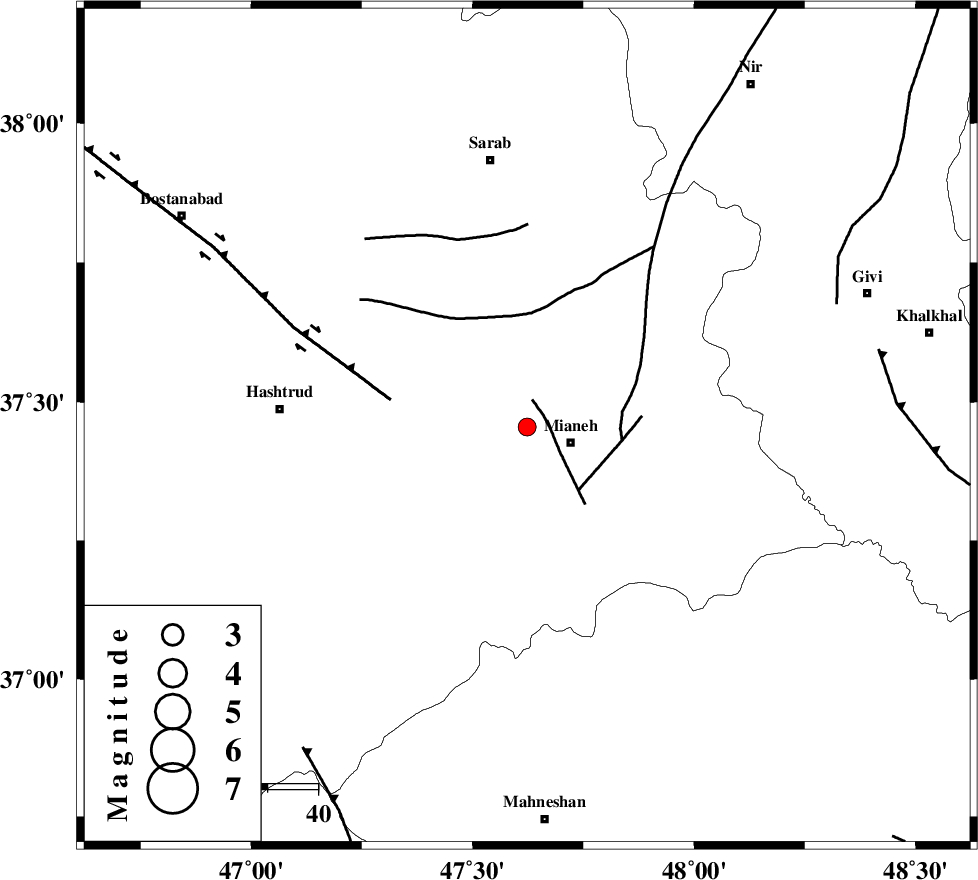

| Location | Lat:37.455 Lon: 47.623 |
| Region | Azarbaijan Sharghi Province, 9 km of Mianeh |
Nearest Cities |
|
| 9 km North of Mianeh, Azarbaijan Sharghi Province | |
| 10 km North of Sheikhdarabad, Azarbaijan Sharghi Province | |
| 13 km North East of Pursakhlu, Azarbaijan Sharghi Province | |
| 17 km North West of Achachi, Azarbaijan Sharghi Province | |
| 17 km South of Eshlaq, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 6 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 28 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 66 km | |
| Number of Phases | 6 |
| RMS | 0.3 |
| Number of Stations | 3 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 9.5 km |
| Error in Depth | 8.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 101404 | IIEES | ZNJK | N | 124.6 | 0.19 | 2015-10-04 13:09:09 | 2015-10-05 06:12:00 | n |
| 101405 | IIEES | ZNJK | E | 98.5 | 0.24 | 2015-10-04 13:09:11 | 2015-10-05 06:12:00 | n |
| 101406 | IIEES | GRMI | E | 111 | 0.35 | 2015-10-04 13:09:21 | 2015-10-05 06:12:00 | n |
| 101407 | IIEES | GRMI | N | 97.4 | 0.32 | 2015-10-04 13:09:22 | 2015-10-05 06:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2015-10-04 13:08:53 | -0.1 | y | 128 | 132 | |||
| IIEES | ZNJK | N | Sg | E | 2015-10-04 13:09:09 | -0.37 | y | 128 | 132 | |||
| IIEES | GRMI | Z | Pg | E | 2015-10-04 13:08:57 | 0.2 | y | 152 | 9 | |||
| IIEES | GRMI | N | Sg | E | 2015-10-04 13:09:15 | -0.23 | y | 152 | 9 | |||
| IIEES | CHTH | Z | Pn | E | 2015-10-04 13:09:24 | 0.26 | y | 357 | 118 | |||
| IIEES | CHTH | E | Sg | E | 2015-10-04 13:10:12 | 0.32 | y | 357 | 118 | |||
