Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2015-10-10 21:42:23.8 |
| Date & Time (Local) | 1394/7/19 01:12:23.8 |

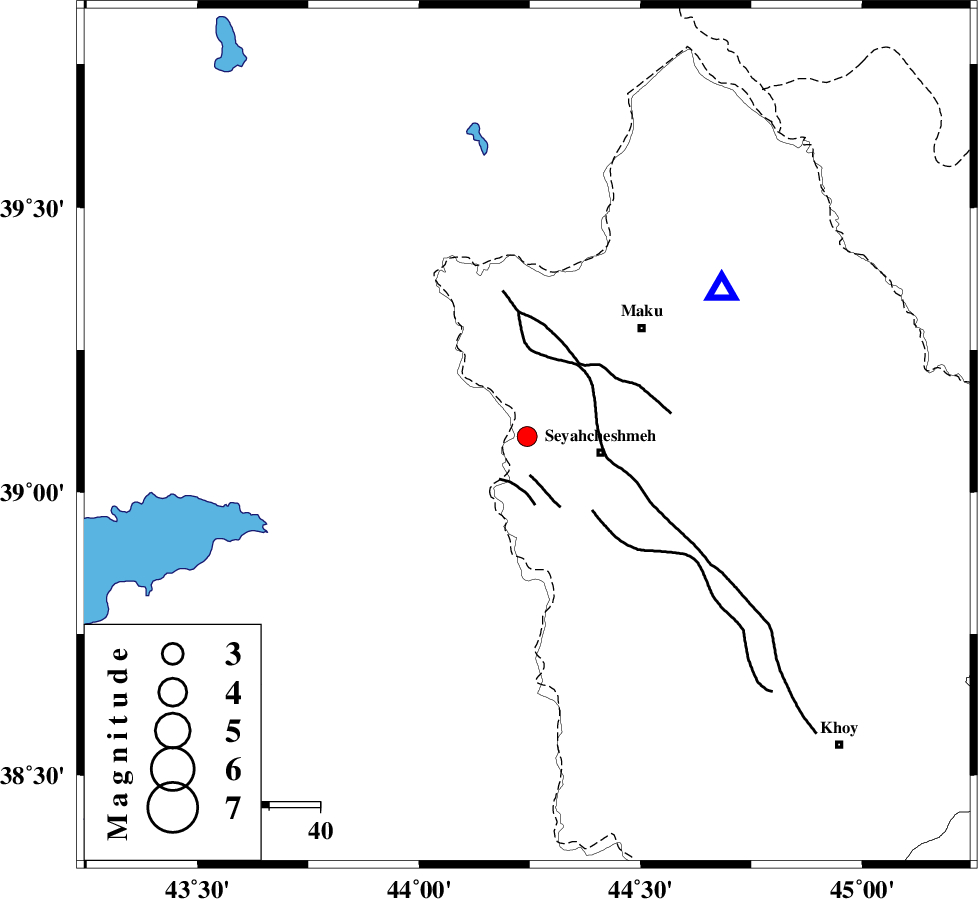

| Location | Lat:39.098 Lon: 44.244 |
| Region | Azarbaijan Gharbi Province, 15 km -West of Seyah Cheshmah |
Nearest Cities |
|
| 1 km of Sheykh selu-e bala, Azarbaijan Gharbi Province | |
| 5 km North of Sheykh selu-e paein, Azarbaijan Gharbi Province | |
| 11 km West of Zavieh, Azarbaijan Gharbi Province | |
| 15 km North West of Seyah Cheshmah, Azarbaijan Gharbi Province | |
| 24 km South of Arab dizaj, Azarbaijan Gharbi Province | |
| Depth | 21 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 8 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 101 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 104 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >6.9 km |
| Error in Longitude | 5.4 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 101629 | IIEES | MAKU | N | 729.2 | 0.26 | 2015-10-10 21:42:39 | 2015-10-11 08:41:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pg | E | 2015-10-10 21:42:32 | -0.01 | y | 47.4 | 53 | |||
| IIEES | GRMI | Z | Pn | E | 2015-10-10 21:43:10 | 0.01 | y | 318 | 95 | |||
| IIEES | GRMI | E | Sg | E | 2015-10-10 21:43:50 | 0 | y | 318 | 95 | |||
| IIEES | ZNJK | Z | Pn | E | 2015-10-10 21:43:29 | 0 | y | 474 | 123 | |||
| IIEES | CHTH | Z | Pn | E | 2015-10-10 21:43:58 | 0.01 | y | 704 | 118 | |||
