Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2015-10-11 12:30:53.4 |
| Date & Time (Local) | 1394/7/19 16:00:53.4 |

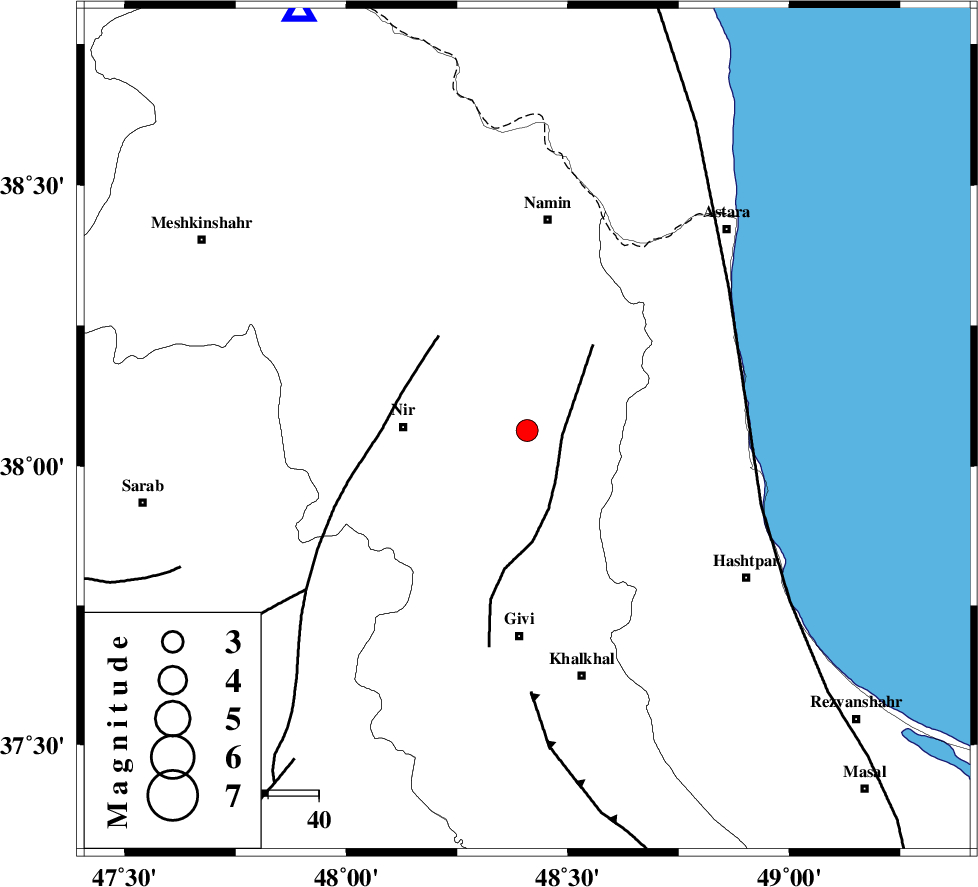

| Location | Lat:38.063 Lon: 48.408 |
| Region | Ardebil Province, 25 km -East of Nir |
Nearest Cities |
|
| 2 km of Mehmandust, Ardebil Province | |
| 2 km North of Budalalu, Ardebil Province | |
| 13 km West of Hir, Ardebil Province | |
| 17 km North East of Kuraeim, Ardebil Province | |
| 23 km South East of Ardabil, Ardebil Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 7 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 26 km | |
| TALESH_F (Length: 258 km) , Distance to epicenter: 49 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >2.9 km |
| Error in Longitude | 8.1 km |
| Error in Depth | 5.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 101630 | IIEES | GRMI | E | 615.1 | 0.22 | 2015-10-11 12:31:26 | 2015-10-11 12:59:00 | n |
| 101631 | IIEES | GRMI | N | 656.8 | 0.25 | 2015-10-11 12:31:26 | 2015-10-11 12:59:00 | n |
| 101632 | IIEES | ZNJK | E | 227.8 | 0.26 | 2015-10-11 12:31:40 | 2015-10-11 12:59:00 | n |
| 101633 | IIEES | CHTH | E | 61.7 | 0.41 | 2015-10-11 12:32:31 | 2015-10-11 12:59:00 | n |
| 101634 | IIEES | MAKU | N | 59.6 | 0.42 | 2015-10-11 12:32:38 | 2015-10-11 12:59:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2015-10-11 12:31:09 | -0.15 | y | 94.3 | 332 | |||
| IIEES | GRMI | E | Sg | E | 2015-10-11 12:31:21 | -0.2 | y | 94.3 | 332 | |||
| IIEES | ZNJK | Z | Pg | E | 2015-10-11 12:31:19 | -0.19 | y | 156 | 171 | |||
| IIEES | ZNJK | E | Sg | E | 2015-10-11 12:31:38 | -0.17 | y | 156 | 171 | |||
| IIEES | CHTH | Z | Pn | E | 2015-10-11 12:31:43 | 0.22 | y | 340 | 134 | |||
| IIEES | MAKU | Z | Pn | E | 2015-10-11 12:31:45 | 0.49 | y | 354 | 295 | |||
| IIEES | ASAO | Z | Pn | E | 2015-10-11 12:31:53 | 0.13 | y | 416 | 159 | |||
